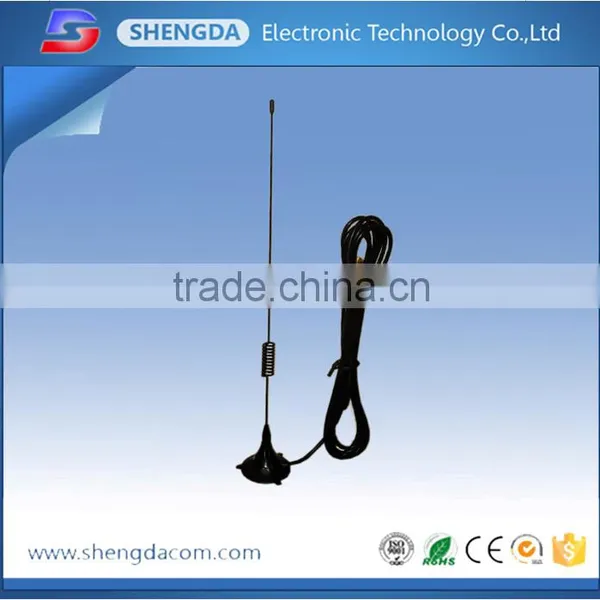

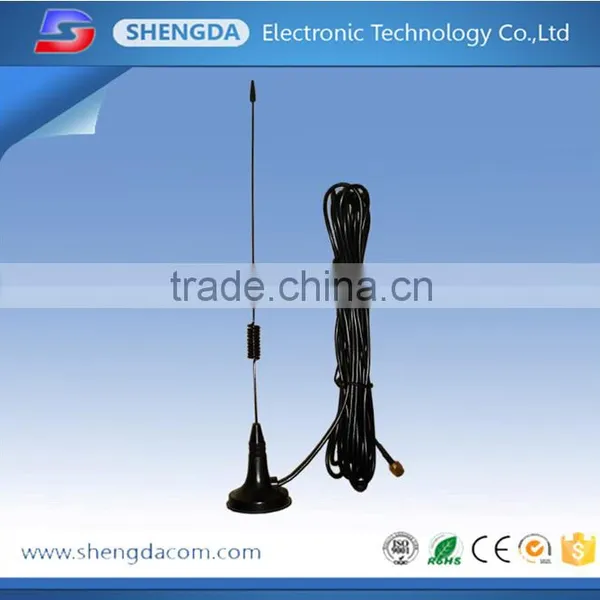

Help CenterGSM/CDMA Quad-Band Mini Magnetic Antenna With RG174 Coxial Cable/Omni Directional Gsm Antenna
Related Products
-
868mhz GSM Booster Antenna /gsm Pcb Antenna With BracketUS$ 1 - 2MOQ: 1 Piece -
GSM Antenna /adhesive Antenna on Window for CarUS$ 1 - 2MOQ: 1 Piece
-
High Gain 3g 10 DBi Outdoor Directional GSM YAGI Antenna/890-960mhz tv Yagi AntennaUS$ 2 - 3MOQ: 1 Piece
-
High Gain 12 DBi 3g Outdoor Directional tv Gsm YAGI Antenna 806-896mhzUS$ 1 - 2MOQ: 1 Piece
-
Omni Directional Outdoor High Gain 10dBi Fiberglass Gsm Base Station AntennaUS$ 2 - 3MOQ: 1 Piece

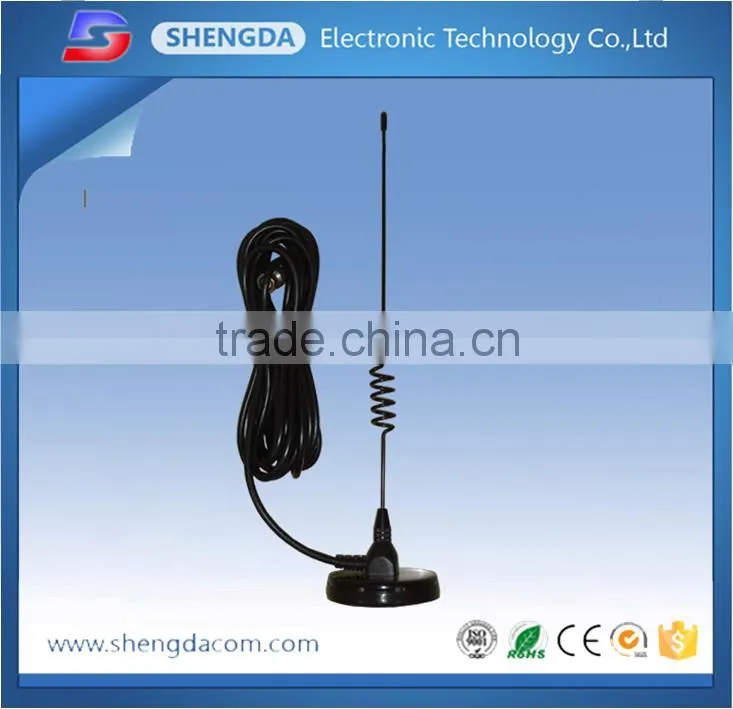

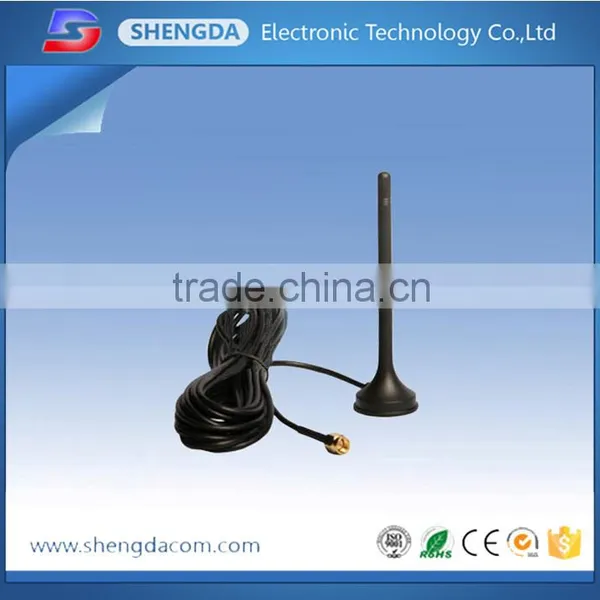

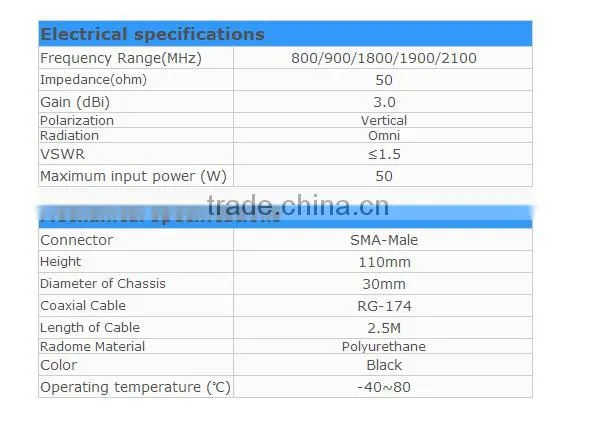

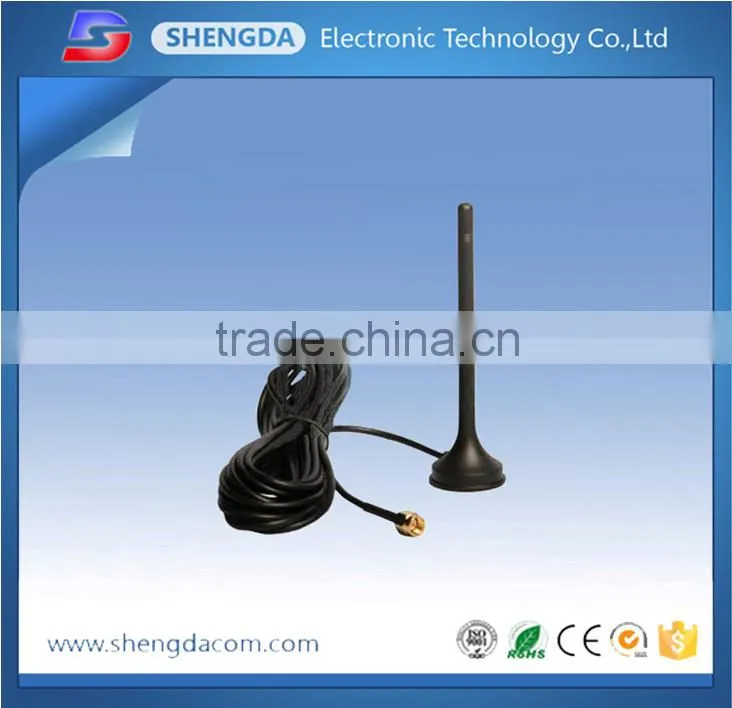

SD34 Multi band GSM anetnna
Frequency Range(MHz): 800/900/1800/1900/2100Mhz
VSWR:less than 1.3
Gain:3.5dBiConnector:SMA-male
Magnet Base Dia:30mm
Cable: 3m RG174 cable

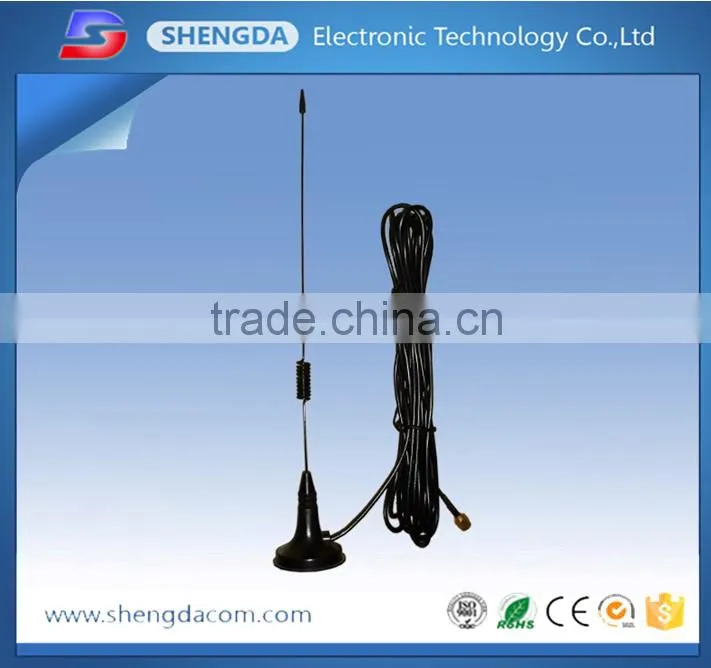

SD42
Frequency:900/1800MHz
VSWR:less than 1.3
Gain:5.5dBi
Connector:SMA-male
Magnet Base Dia:42mm
Cable: 3m RG174 cable
SDD5
Frequency：900/1800 MHz
VSWR：Less 1.5
Gain：3.5 dBi
Connector：SMA-male
Color: Black
Hight:55 mm
SDT4
Frequency:890-960MHz
VSWR:less than 1.3
Gain:3.5dBi
Max. Power Input:50W
Connector:SMA-male
Cable: 3m RG174 cable
SDXQX1
Frequency：890-960 MHz
VSWR：Less 1.5
Gain：3.5 dBi
Connector：N-Female
Color: Gray /White
Hight:185 mm
SDBF0.5F GSM qual band
Frequency Range: 800/900/1800/1900/2100/2400MHz
VSWR: less than 1.5
Gain: 9.0 dBi
Polarization: Vertical
Maximun Power input: 500W
Connector Type: N-Female
Hight: 500mm
Radome Material: Fiberglass
Color: White
SDD21 Hot style Hot sale
Frequency：900/1800 MHz
Gain：5.5 dBi
Polarization：Vertical
Connector：SMA-male
Color: Black
Hight:210 mm

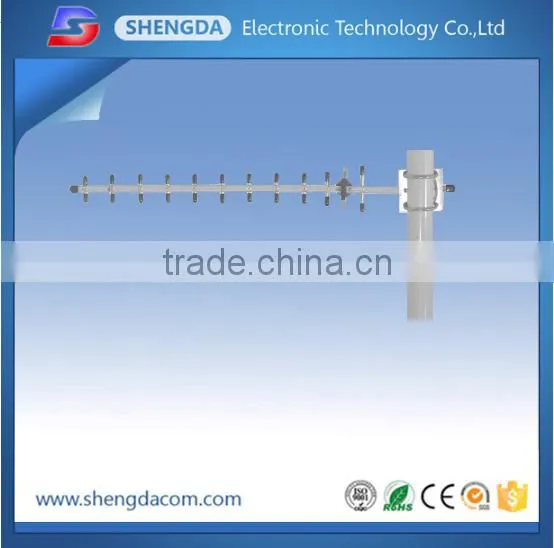

SDY890/960
Frequency Range: 890-960 MHz
Impedance: 50 ohm
VSWR: 1.5
Gain: 11.0 dBi
Polarization: Vertical
Horizontal 3dB Beam Width: 53°
Vertical 3dB Beam Width: 48°
Front To Back Ratio: >15 dB
Connector: N-Female(or according customer require)
Length: 490 mm
Mounting hardware: Ø40～Ø50 mm

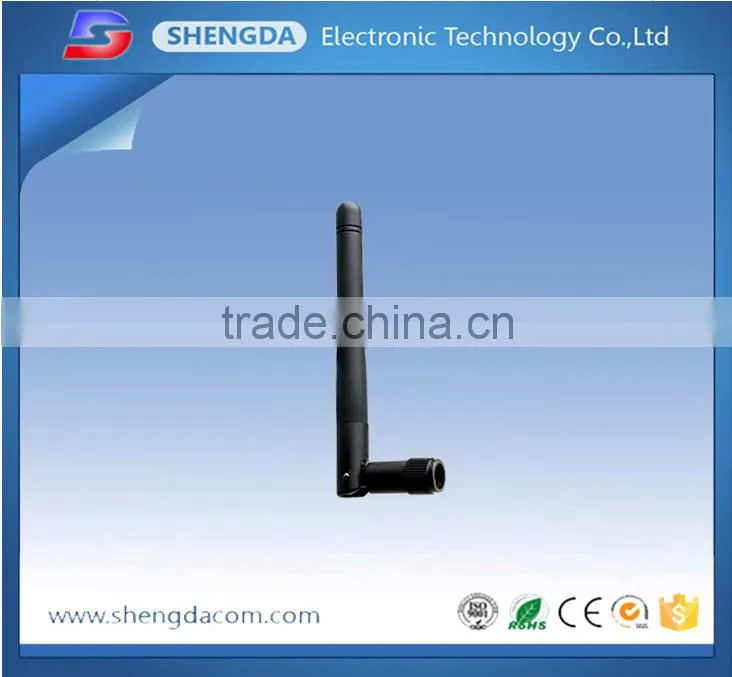

SDD11
Frequency Range: 2400-2500 MHz
Impedance: 50 Ohm
VSWR: less than 1.5
Gain: 3 dBi
Polarization: Vertical
Radiation: Omni
Max. Power Input-watts: 50 W
Height: 107 mm
Termination: SMA-Male or RP-SMA
Radome Material: TPEE

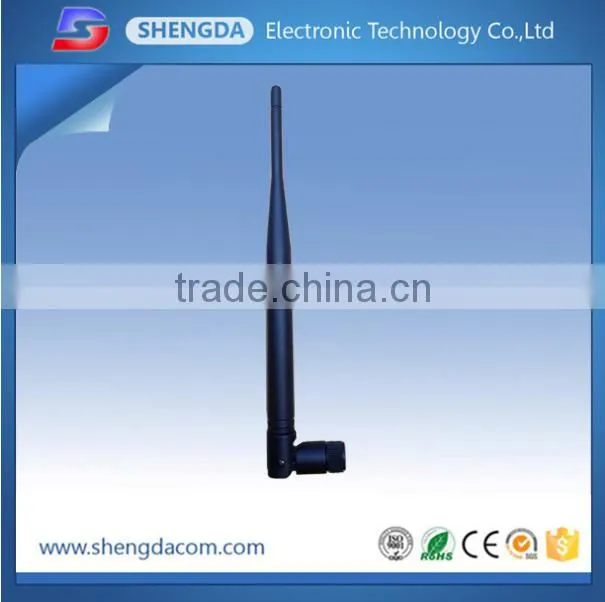

SDD21
Frequency Range: 2400-2500 MHz
Impedance: 50 Ohm
VSWR: less than 1.5
Gain: 5.5dBi
Polarization: Vertical
Radiation: Omni
Max. Power Input-watts: 50 W
Height: 210 mm
Termination: SMA-Male or RP-SMA or TNC
Radome Material: TPEE

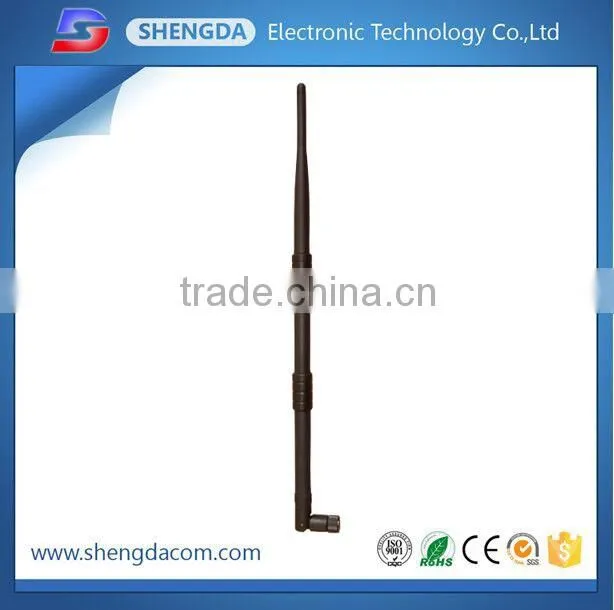

SDD38
Frequency Range: 2400-2500 MHz
Impedance: 50 Ohm
VSWR: less than 1.5
Gain: 9.0dBi
Polarization: Vertical
Radiation: Omni
Max. Power Input-watts: 50 W
Height: 380 mm
Termination: SMA-Male or RP-SMA or TNC
Radome Material: TPEE

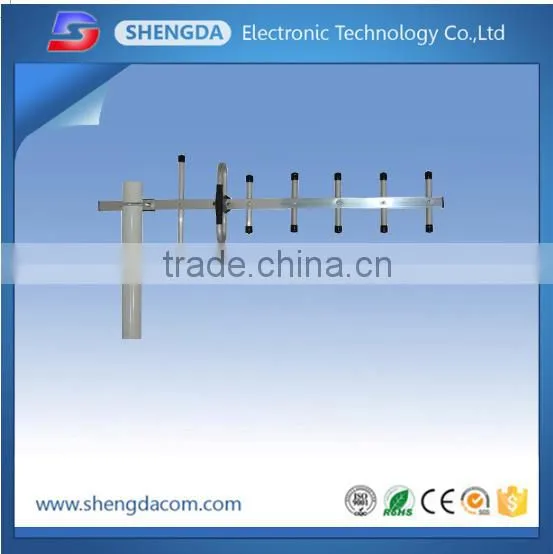

SDY2400-9/15
Frequency Range: 2400-2500 MHz
Impedance: 50 Ohm
VSWR: less than 1.5
Gain: 11 dBi or 15dbi
Half-Power Beam width: H-Plane 48˚
E-Plane 40˚
Polarization: Horizontal or Vertical
Front To Back Ratio: more than 16 dB
Connector: N-Female
Length: 470 mm
Materials: Stainless steel
Rated Wind Velocity: 60 m/s

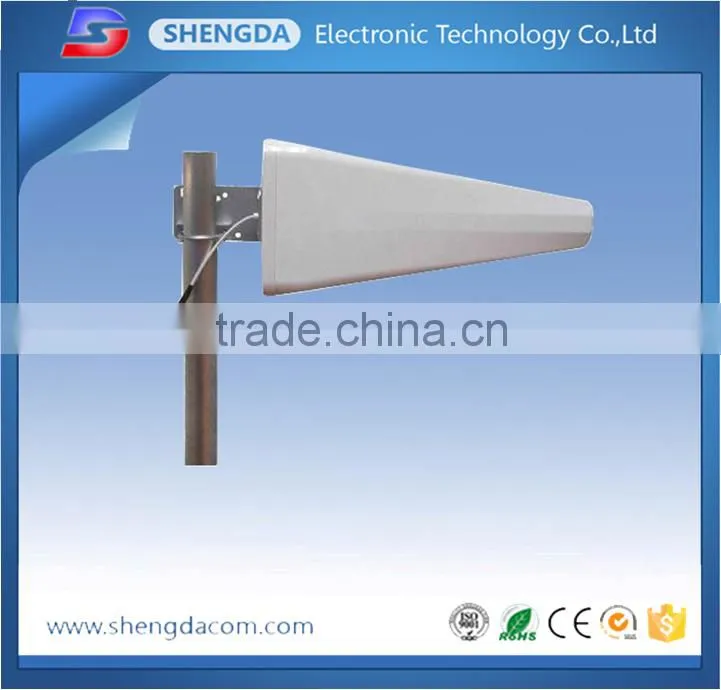

SDYL2
Frequency Range: 2400-2500MHz
Impedance: 50 Ohm
VSWR: less than 1.5
Gain: 12 dBi
Polarization: Vertical
Front To Back Ratio: >16 dBi
Horizontal 3dB Beam Width: 50°
Vertical 3dB Beam Width: 45°
Connector: N-Female
Dimensions(L/W/D): 190×150×55 mm
Radome Material: ABS
SDBF0.5-2.4G
Frequency Range: 2400-2500MHz
Impedance: 50 Ohm
VSWR: less than 1.5
Gain: 12 dBi
Connector Type: N-Female
Dimensions: Ø50x2300mm
Radiating Element Material: CU
Radome Material: Fiberglass
SD34
Frequency:2400-2500MHz
Impedance:50 Ohm
VSWR:less than 1.3
Gain:3.5dBi
Max. Power Input:50W
Connector:SMA-male Length:110mm
Magnet Base Dia:30mm
Cable: 3m RG174 cable
SD30
Frequency:2400-2500MHz
Impedance:50 Ohm
VSWR:less than 1.3
Gain:3.5dBi
Max. Power Input:50W
Connector:SMA-male Length:320mm
Magnet Base Dia:30mm
Cable: 3m RG174 cable
SD75G
Frequency:2400-2500MHz
Impedance:50 Ohm
VSWR:less than 1.5
Gain:3.5dBi
Max. Power Input:50W
Connector:N-male Length:315mm
Magnet Base Dia:60mm
Cable: 4.5m RG58U cable
Packing
Pack in Strong carton of antennas and radios
Delivery
3-15 days after payment confirmed
Q1:What is your payment terms?
A: We accept the T/T,Western Union,Paypal and so on.
Q2:When can you arrange the shipment after I have placed and order?
A:If for the two way radio,usually we can arrange shipment within 15 days.
If for earphone and antenna,usually we can arrange the shipment 5-7 days.
Q3:Could you supply the sample for me to test first?
A:Yes,we can supply the sample first,however,the customer should pay the cost.
Q4:What is the MOQ of your products.
A:Usually,it is serious requirement.However,it depends in different products.
Q5:Can you accept customized?
A:OEM&ODM are welcomed.
Sale name:Jaina Chen
