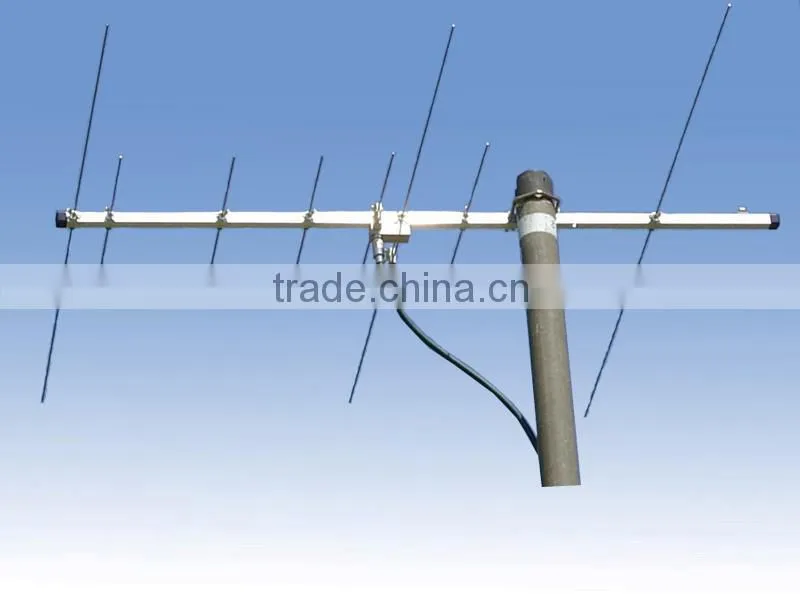

High Gain 3g 10 DBi Outdoor Directional GSM YAGI Antenna/890-960mhz tv Yagi Antenna
High gain 3g 10 dBi outdoor directional GSM YAGI antenna/890-960mhz tv yagi antenna
Electrical specifications | |
Frequency Range(MHz) |
890-960mhz |
Polarization |
Vertical |
Gain (dBi) |
10 |
Horizontal/Vertical 3dB Beam Width (°)
|
60/50 |
Front To Back Ratio |
>12 dB |
VSWR |
≤1.5 |
Maximum input power (W) |
50 |
Lighting Protection |
Direct Ground |
Mechanical specifications | |
Element |
7 |
Length |
630 mm |
Connector |
SMA-Male |
Antenna weight (kg)(with installation kit) |
0.5 |
Reflector material |
Cu Aluminum Alloy |
Mounting hardware |
Ø30~Ø45 mm
|
Ambient temperature |
-40℃-+60℃
|
Rated Wind Velocity |
60 m/s
|
OTHER SIMILAR gsm yagi antenna YOU CAN CHOOSE:
| MOQ | 1 piece (small or trial order), 100pcs for bulk order |
| Packaging | ShengDa Standard Package |
| Loading Port | XIAMEN for gsm yagi antenna |
| Delivery Date | Within 3 days after payment confirmed for gsm yagi antenna |
| Express Delivery | DHL/UPS/FEDEX/EMS/TNT for gsm yagi antenna |
| Terms of Payment | T/T, Western Union, Paypal |
1.17 years experience .Shengda communication Ltd.,which mainly produce mobile antenna, Hand held antenna and marine antenna, base station antenna,yagi antenna products.
2. Our sales will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
