Specifications
Air Cooled Chiller-Air Cooled Water Chiller
-For Air Conditioning Cooling
-Air to Water Chiller
-CE, R407C,R22,R134A, R410A

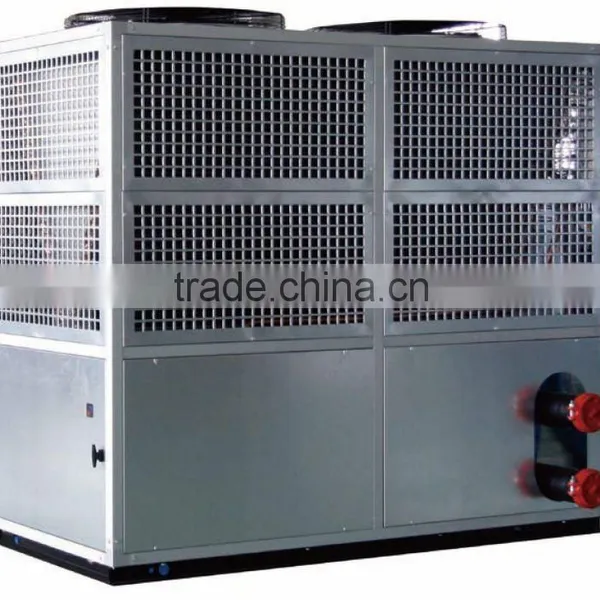

LTWF Series Air Cooled Water Chiller, Air to Water Chiller for Air Conditioning Cooling
-For Air Conditioning Cooling Only
-Air Cooled Type for easy installation and widely application;
-Scroll Compressors(Copeland, Sanyo, Danfoss etc.) Units
-Semi-hermetic Piston Compressors(Bitzer etc.) Units
-R22, R134a, R407c, R410a refrigerant available;
-Shell and Tube Type Evaporator or Tube in Tube Type Evaporator
-Air Cooled V-Type or U-Type Condenser, Copper Tube and AL Fin;
-Refrigerant Control: Thermal Expansion Valve.

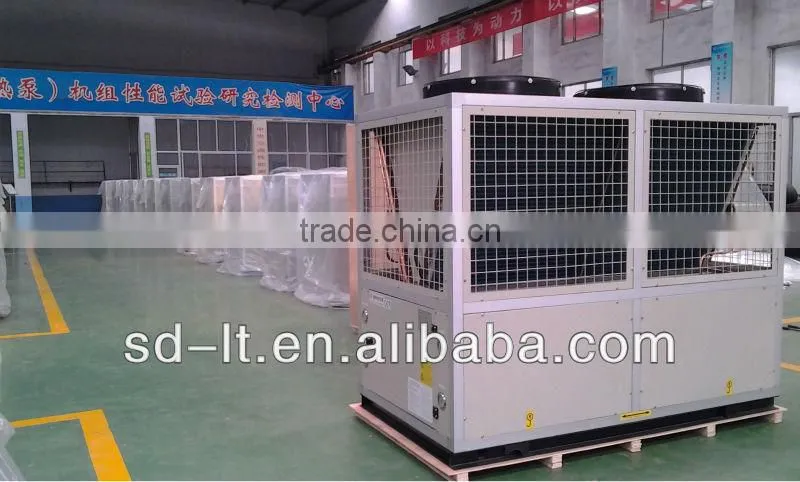

Products in Warehouses:
Chiller Working Diagram:
Models: LTWF-10------LTWF-140
Cooling Capacity: 9.8KW----138KW
1)Cooling Condition: Chilled Water Inlet 12°C, outlet 7°C; Ambient temperature 35°C.
2) Heat recovery Device is the optional for domestic hot water.
| Model LTWF— | 10 | 12 | 15 | 17 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 95 | 120 | 140 | |
| Cooling Capacity kW | 9.8 | 12.2 | 14.8 | 17.5 | 20.1 | 24.5 | 29.6 | 34.5 | 41.5 | 50.2 | 60.2 | 68 | 94.5 | 118 | 138 | |
| Refrigeration Input Power kW | 3 | 3.8 | 4.6 | 5.4 | 6.2 | 7.6 | 9.2 | 10.7 | 12.9 | 15.6 | 18.8 | 21.2 | 29.5 | 36.8 | 43.1 | |
| Heat Recovery kW | 3.7 | 4.3 | 5.3 | 6.2 | 7.3 | 8.7 | 10.6 | 12.5 | 14.8 | 18.2 | 21.8 | 25.1 | 34.3 | 42.8 | 50.1 | |
| Refrigerant | Type | R134a/R407C/R22 | ||||||||||||||
| Charge kg | 2.6 | 3.3 | 4 | 4.7 | 5.5 | 6.7 | 8 | 9 | 10.6 | 12 | 13.5 | 18 | 21 | 27 | 34 | |
| Power | 380V/3Phase/50(60)HZ 220V/1Phase/50(60)HZ | |||||||||||||||
| Compressor type | Hermetic Scroll or Semi hermetic Piston Type(American Copeland, Germany Bizter, Danmark Danfoss etc.) | |||||||||||||||
| Compressor Q'TY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 4 | |
| Number of refrigerant circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 4 | |
| Condenser Fan | Low Noise Axial Flow Type | |||||||||||||||
| Fan Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 4 | |
| Air Cooled Condenser | Inner Grooved Copper Tube and AL Fin Type | |||||||||||||||
| Evaporator | Type | High Efficiency Tube in Tube/Plate Heat Exchanger | ||||||||||||||
| Water Pressure Loss | 22.3 | 23.2 | 25 | 26.1 | 27.5 | 30.1 | 32.3 | 34.7 | 31.5 | 32.9 | 35.6 | 38.3 | 41. 2 | 42.5 | 45.5 | |
| Water Volume(m³/h) | 1.7 | 2.1 | 2.5 | 3 | 3.5 | 4.2 | 5.1 | 6 | 7.1 | 8.6 | 10.3 | 12 | 14.6 | 17.2 | 24 | |
| Interface(mm) | DN20 | DN20 | DN20 | DN32 | DN32 | DN32 | DN50 | DN50 | DN50 | DN50 | DN50 | DN65 | DN80 | DN80 | DN100 | |
| Heat recovery Device (User Selected) |
Type | High Efficiency Tube in Tube/Plate Heat Exchanger | ||||||||||||||
| Water Pressure Loss | 21.4 | 22.3 | 23.1 | 24.5 | 25.6 | 27.2 | 29.7 | 31.2 | 29.2 | 30.1 | 32.1 | 34.5 | 37.3 | 38.3 | 40.9 | |
| Water Volume(m³/h) | 0.6 | 0.74 | 0.9 | 1.1 | 1.3 | 1.5 | 1.8 | 2.1 | 2.5 | 3.1 | 3.6 | 4.2 | 5.7 | 7.1 | 8.3 | |
| Pipe Interface (mm) | DN15 | DN15 | DN15 | DN15 | DN20 | DN20 | DN25 | DN25 | DN32 | DN32 | DN32 | DN40 | DN40 | DN50 | DN50 | |
| Protection | Overload, undervoltage, overtemperature protection, low pressure switch, antifreeze switch | |||||||||||||||
| Water Cut-off Protection | Standard Water Flow Switch | |||||||||||||||
| Size | Length mm | 750 | 800 | 900 | 1000 | 1300 | 1000 | 1100 | 1100 | 1400 | 1450 | 1550 | 1950 | 2200 | 2150 | 2300 |
| Width mm | 340 | 400 | 420 | 420 | 420 | 1000 | 1100 | 1100 | 1130 | 1130 | 1130 | 1180 | 1250 | 2090 | 2100 | |
| Height mm | 1210 | 1210 | 1360 | 1360 | 1380 | 1500 | 1600 | 1700 | 1650 | 1700 | 1850 | 1750 | 1800 | 1950 | 1950 | |
| Weight kg | 300 | 330 | 350 | 380 | 400 | 450 | 500 | 560 | 650 | 700 | 750 | 980 | 1250 | 1350 | 1650 | |
| Operating noise dB(A) | 60 | 60 | 60 | 60 | 60 | 60 | 62 | 62 | 62 | 62 | 62 | 65 | 65 | 68 | 68 | |
Details Introduction:
-This is can be modular type, modulars can be combined together;
-Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents;
-Units with U type heat exchanger: bearing structure in aluminum, panels in stainless steel, and base in painted section steel;
-3-phase scroll type or piston type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers;
-External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille;
-Evaporator built with high efficiency tube in tube type heat exchanger, factory insulated with flexible close cell material;
-Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins;
-Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The chiller unit is completed with liquid receiver and one way valve;
-Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units;
-Electric panel consist of: compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit).
-Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.

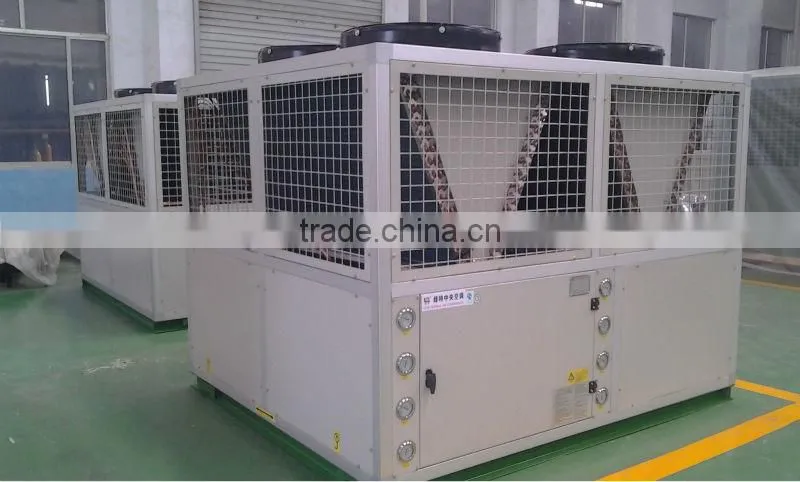

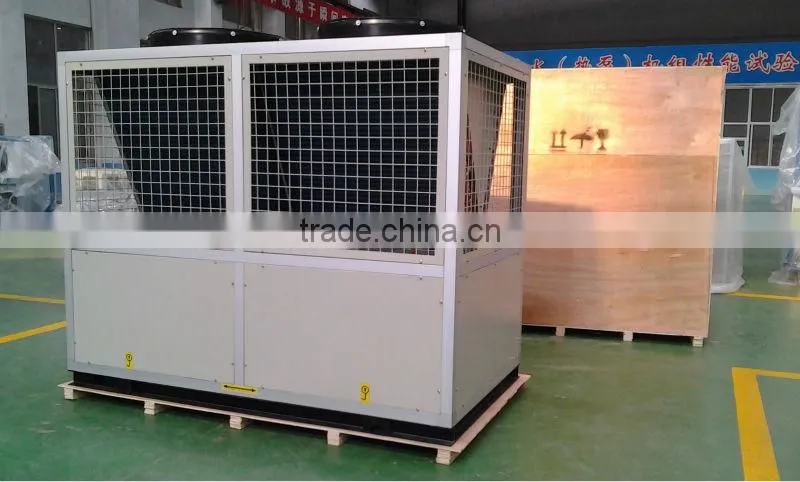

Products Projects:

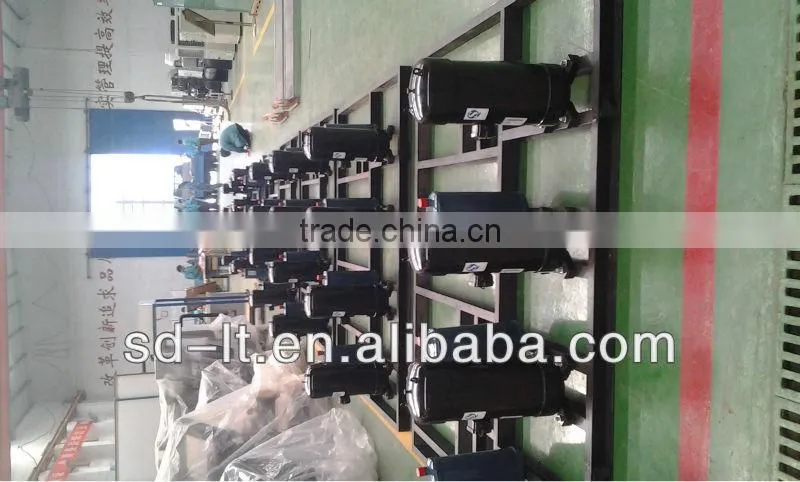

Main Parts:

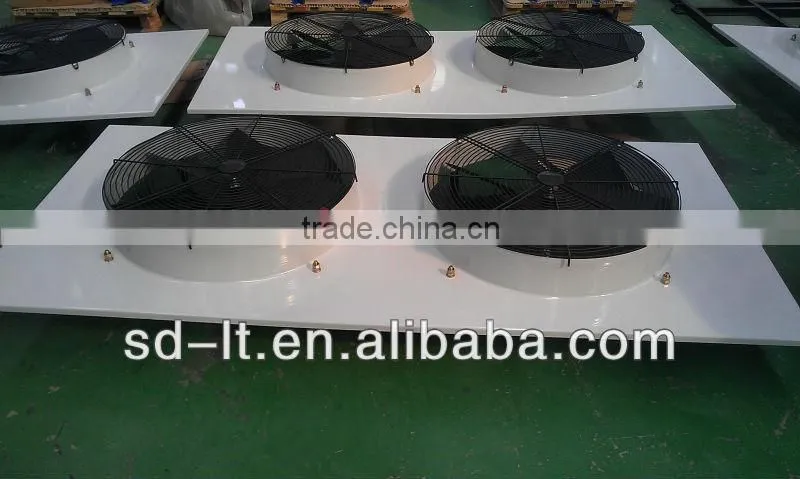

Compressor+Air Cooled Condenser+Fan Motor
Products Exports:
