Air Cooled Chiller, Air Cooled Water Chiller

Air Cooled Chiller, Air Cooled Water Chiller thumbnail-1
Air Cooled Chiller, Air Cooled Water Chiller photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYTTE or OEM Service
Model Number:
LTLF
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LYTTE or OEM Service
Model Number LTLF
Type Air Conditioning

Specifications

Air Cooled Chiller
-Air Cooled Water Chiller
-Air Conditioning Cooling
-R134a,R407C Avaliable
-Semi-hermetic ScrewCompressor

Air Cooled Chiller, Air Cooled Water Chiller for Central Air Conditioning Cooling



Introduction:

Models: Air Cooled Water Chiller for Air Conditioning

Specifications: LT L F -- 30 AS

LT--LVTE Company Products Code

L--Screw Compressors

F--Air to Water Type Chiller

30--Compressor HP

AS(AD)--Single(Double) Screw Compressor(s)

Single Screw Compressor: LTLF30AS-LTLF140AS Cooling Capacity:87-500KW

Double Screw Compressors: LTLF60AD-LTLF280AD   Cooling Capacity:174-1000KW



Features

1)16 sizes available ranging from 80 kW to 2000 kW cooling capacity;

2)Semi-hermetic screw compressors for all models. Each compressor is equipped with a crankcase heater and a thermal overload cut-out;the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line;

3) External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille;

4) Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material;

5) Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins;

6) Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve;

7) Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.

8) Electric panel consist of: compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display; Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.



OPTIONAL

Metallic filter for hydraulic circuit;

Rubber anti-vibration mounting.

BMS interface

Heat recovery and Low noise cabinet



System Control

1. Imaged system operation chart, showing the temperature of water in/out, the energy level of compressor run, on/off button, run time, alarm etc. And the remote turn on/off function is available. PC remote control is optional.

2. Notice for maintenance is indicated according to the accumulated run time of the compressor.It is convenience to maintenance.

3. The control system will automatically balance the run time for each compressor for mult-compressor unit.



Safety Protections

1. Discharge check value:it prevents the discharged gas from going back after the compressor stops.

2. Phase lack protection:It protects the compressor for over high voltage, voltage dificiency, and phase lack.

3. Direction protection:It protects the compressor from damage resulted from Counter direction run.

4. Oil heater: It heats the oil before the unit start, keep the good lubrication for the unit before it runs.

5. Overheat protection inside the motor of the compressor: It protects the compressor from burning down for too high coil temperature for overload, or abnormal run condition.

6. High&low pressure protection: It protects the compressor and system against extreme run condition and trouble.

7. Freezing protection: It protects the unit form too low temperature of the water out, freezing may occerat some place, resulting in freezing breaking of the evaporator.

8. Water flow protect: It protects the unit from run without water flow.

9. High temperature of chilled water protection: It works to protect the compressor in case that the load is too large,the temperature of chilled water is too high. It may result in compressor failure without this protect in the case.



Model Details:

1.Colling Condition: Cold water in/out 12/7°C; Environmental 35°C;

2. Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%.

Specs of LTLF series Air Cooled Screw Comperssor Chillers(Single Compressor)
MODEL LTLF- 30AS 40AS 50AS 60AS 70AS 80AS 90AS 100AS 110AS 120AS 130AS 140AS
Cooling
Capacity		 KW 87 117 155 200 224 278 305 330 363 430 456 500
103kcal/hr 75 101 133 172 193 239 262 284 312 370 392 430
Heat Recovery
(Partial)		 KW 27 35 47 62 68 85 93 102 109 130 137 151
104kcal/hr 2.3 3.01 4.04 5.33 5.85 7.31 8 8.77 9.37 11.18 11.78 12.98

Compressor		 Cooling Power(kW) 28.4 37.4 46.9 62.7 68.3 80.8 89 97.1 108 125.4 132.4 143.4
Cooling Current(A) 47.8 62.9 78.9 105.3 114.7 135.9 149.6 163.2 181.5 210.8 222.5 241.1
Capaty Regul 0-33-66-100%(33% for start) 0-50-75-100%(25% for start)
Power(kw) 31.5 40.7 51.6 69.3 74.9 90.2 98.4 106.5 119.2 137.9 145 157
Current(A) 57.4 74.3 93.3 128.1 137.5 164.7 178.4 192 213.5 249.2 260.9 281.1
Refrigerant Type R407C
Control Thermal expension valve
Cooling fan Quantity 2 3 3 6 6 6 6 6 8 8 8 10
Single Motor Power(KW) 1.56 1.1 1.56 1.1 1.1 1.56 1.56 1.56 1.4 1.56 1.56 1.4
Current(A) 4.8 3.8 4.8 3.8 3.8 4.8 4.8 4.8 4 4.8 4.8 4
Evaporator Water Pipe
Connection(mm)		 DN65 DN80 DN100 DN125
Water Flow (m³/h) 15 20 27 34 39 48 52 57 62 74 78 86
P drop(Kpa) 37 37 39 42 42 45 45 46 48 48 49 49
Overall Size Length (mm) 2300 2500 2600 3350 3350 3600 3600 3700 3800 4200 4200 4700
Width (mm) 1200 1200 1400 2050 2050 2200 2200 2200 2200 2200 2200 2200
Hight (mm) 2000 2000 2200 2250 2250 2250 2250 2250 2350 2350 2350 2350
Noise dB(A) 57 58 60 62 62 63 64 64 65 67 67 68
Weight KG 1850 2000 2200 2600 2800 3250 3500 3750 4000 4250 4500 4750
Run Weight KG 1950 2100 2300 2750 2950 3450 3700 3950 4200 4450 4700 5000





Specs of LTLF Series Air Cooled Screw Comperssor Chiller(Double Compressors)
MODEL LTLF- 60AD 80AD 100AD 120AD 140AD 160AD 180AD 200AD 220AD 240AD 260AD 280AD
Cooling
Capacity		 KW 174 234 310 400 448 556 610 660 726 860 912 1000
103kcal/hr 150 201.2 266.6 344 385.3 478.2 524.6 567.6 624.4 740 784.3 860
Heat Recovery
(Partial)		 KW 53 70 93 120 135 167 185 200 218 260 276 302
104kcal/hr 4.56 6.02 8 10.32 11.61 14.36 15.91 17.2 18.75 22.36 23.74 25.97
Compressor Cooling Power(kW) 56.8 74.8 93.8 125.4 136.6 161.6 178 194.2 216 250.8 264.8 286.8
Cooling Current(A) 95.6 125.8 157.8 210.6 229.4 271.8 299.2 326.4 363 421.6 445 482.2
Capaty Regul 0-16.5…100% 0-12.5…...100%(12.5% for start)
Power(kw) 61 84.2 103.2 137.9 150.6 180.3 196.7 212.9 238.4 275.8 290 315
Current(A) 109.4 154.6 186.6 249 277.4 329.4 356.8 384 427 498.4 521.8 562.2
Refrigerant Type R407C
Control Thermal expension valve
Cooling fan Quantity 6 6 6 8 10 12 12 12 16 16 16 20
Single Motor Power(KW) 0.7 1.56 1.56 1.56 1.4 1.56 1.56 1.56 1.4 1.56 1.56 1.4
Current(A) 2.3 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4 4.8 4.8 4
Evaporator Water Pipe
Connection(mm)		 DN80 DN100 DN125 DN150
Water Flow (m³/h) 30 40 53 69 77 96 105 114 125 148 157 172
P drop(Kpa) 50 50 51 52 53 53 58 58 65 66 70 70
Overall Size Length (mm) 3350 3600 3700 4200 4700 7200 7200 7400 7600 8400 8400 9400
Width (mm) 2050 2200 2200 2200 2200 2200 2200 2200 2200 2200 2200 2200
Hight (mm) 2250 2250 2250 2350 2350 2250 2250 2250 2350 2350 2350 2350
Noise dB(A) 62 63 65 67 67 68 69 69 70 72 72 73
Weight KG 3700 4000 4400 5200 5600 6500 7000 7500 8000 8500 9000 9500
Run Weight KG 3900 4200 4600 5500 5900 6900 7400 7900 8400 8900 9400 10000

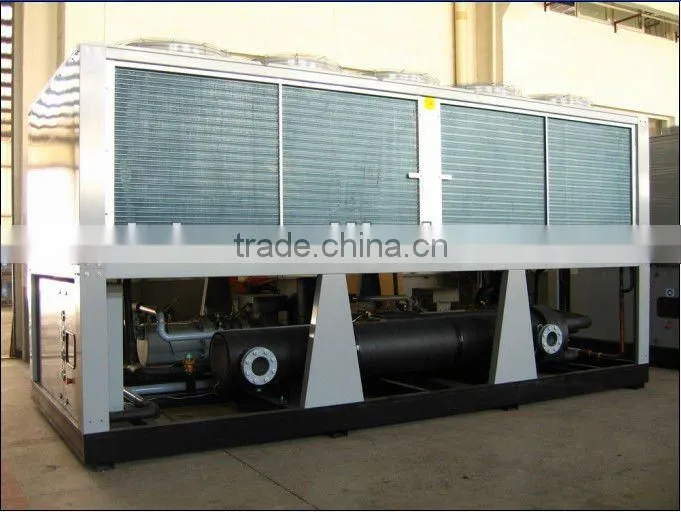

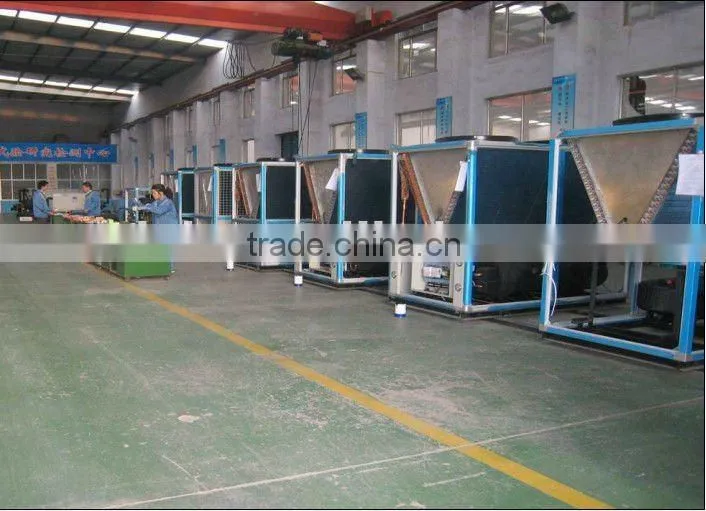

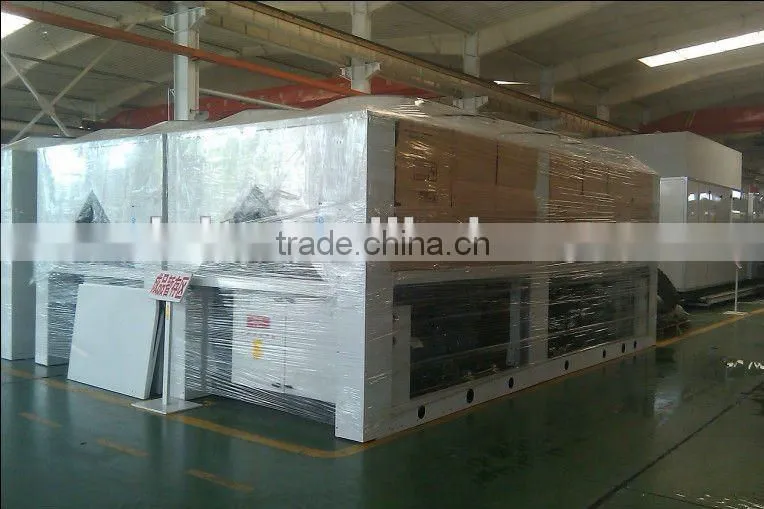

Products in Warehouse

Air Cooled Chiller, Air Cooled Water ChillerAir Cooled Chiller, Air Cooled Water ChillerAir Cooled Chiller, Air Cooled Water Chiller

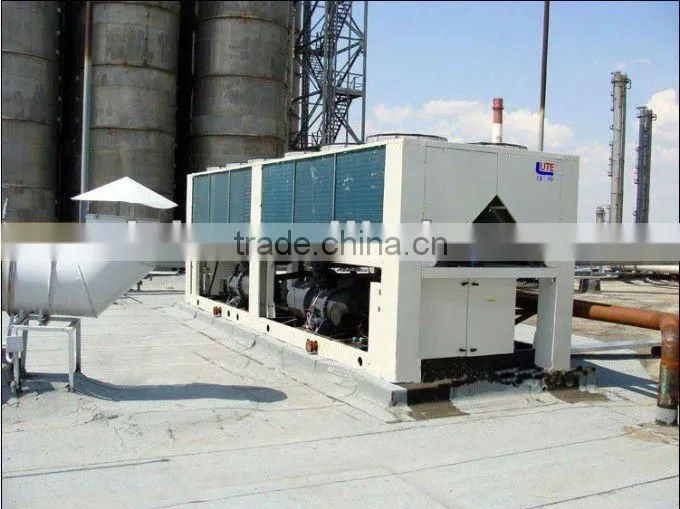

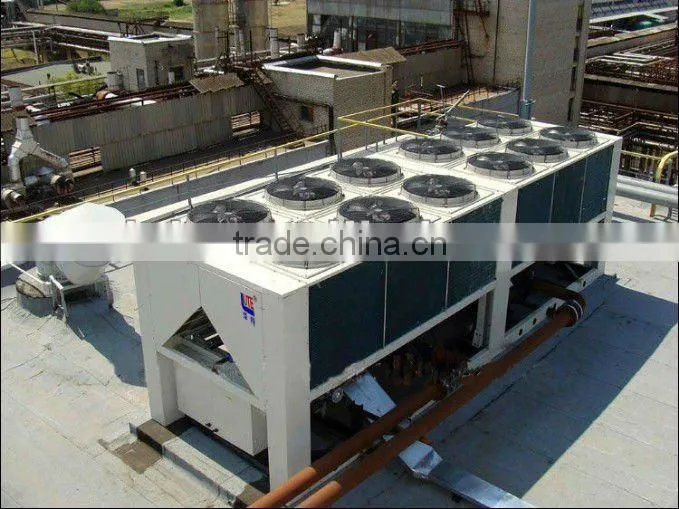

Air Cooled Water Chiller Projects:

Air Cooled Chiller, Air Cooled Water ChillerAir Cooled Chiller, Air Cooled Water Chiller

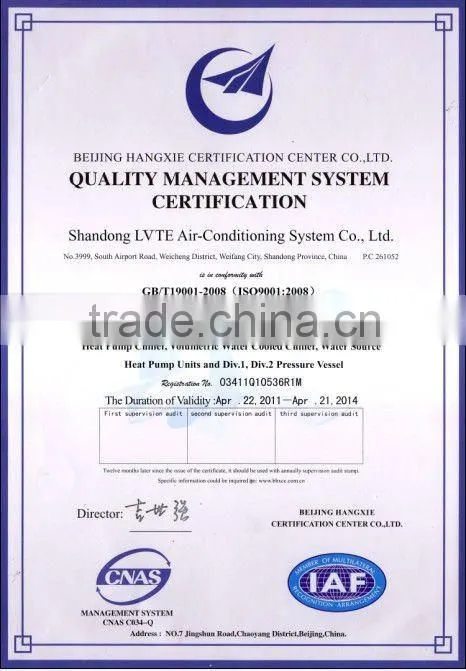

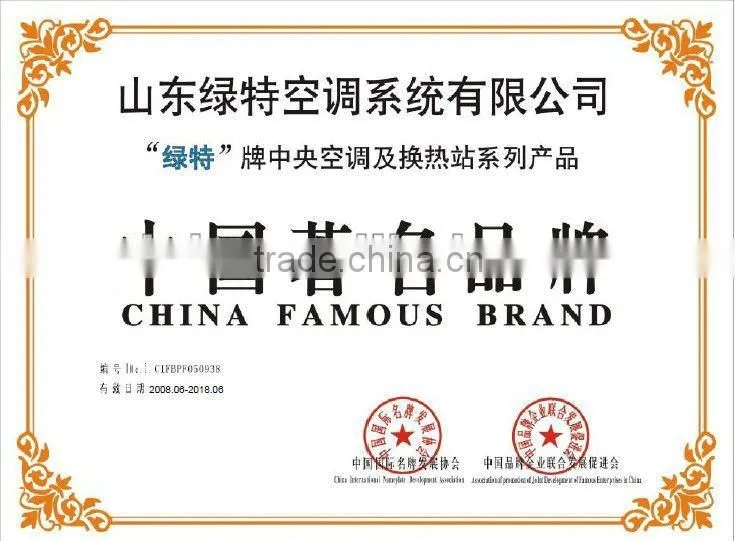

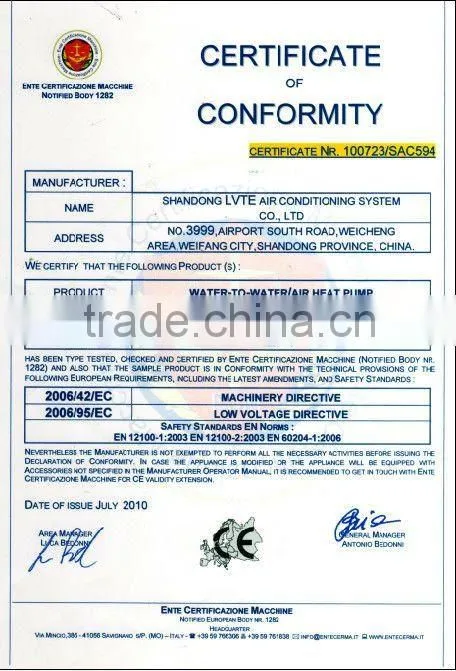

Certificate:
