Specifications
1) France cable 75 Ohm CCTV Cable KX6+3Cx0.752) Since 1991 years
3) Application for cctv catv system
4) CE ROHS UL ETL
France cable 75 Ohm CCTV Cable KX6+3Cx0.75
75 Ohm CCTV Cable KX6+3Cx0.75
Physical specification
Center Conductor: | 7*0.2+0.01mm Solid Copper |
| Dielectric: | 3.7+0.05mm Solid PE |
| Bradi Coverage: | 35%-90% BC/CCA |
| Jacket: | 6.15+0.05mm PVC Green |
2. KX6 coaxial cable electrical properties
| Impedance: | 75+3 Ohm |
| Capacitance: | 50+3pF/km |
| Velocity of Propagation: | 85% |
| Conductor resistance Max: | Inner:16.8 ohms/km Outer:26 ohms/km |
| Return Loss: | 20dB min (5-2150MHz)gbgfbbgfb |
Attenuation | [@68o F. (20o C.)] | |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.46 | 1.5 |
| 50 | 1.31 | 4.3 |
| 100 | 1.80 | 5.9 |
| 200 | 2.56 | 8.4 |
| 400 | 3.66 | 12.0 |
| 800 | 5.34 | 17.5 |
| 862 | 5.58 | 18.3 |
| 950 | 5.86 | 19.2 |
| 1350 | 7.11 | 23.3 |
| 1750 | 8.24 | 27.0 |
| 2150 | 9.33 | 30.6 |
| 3000 | 11.22 | 36.8 |
Application
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Packing 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request; 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. (Other packing available according to client's request. )

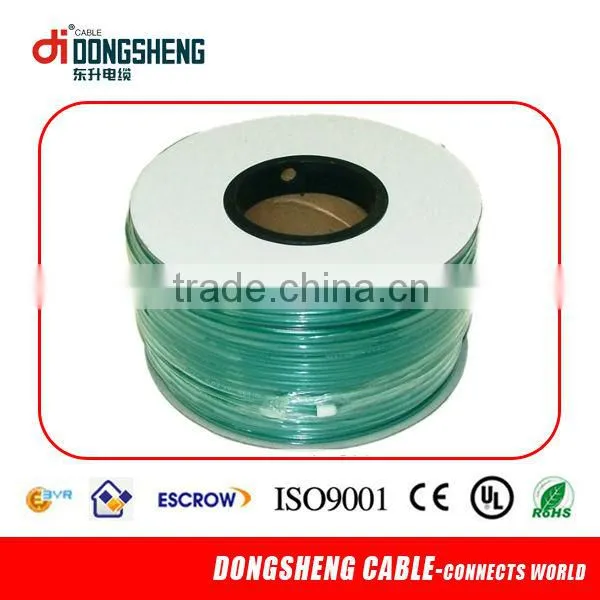

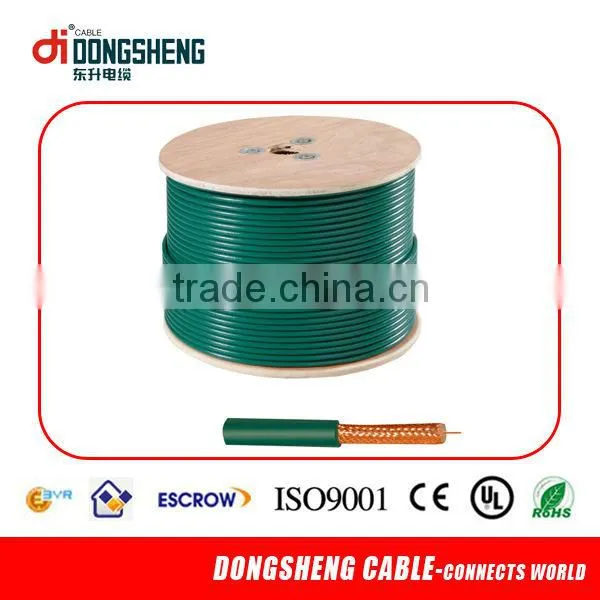

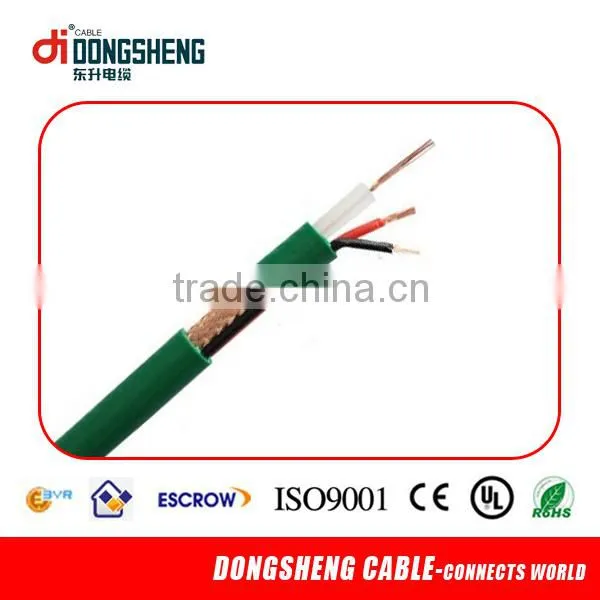

Cable Picture and Package
Factory Show
Certification
Testing Equipment
Exhibition
