Help CenterBest Quality RG59 Coaxial Cable, Coaxial Cable RG59, RG59 Cable Coaxial
Related Products
-
Rg59/2c Power CableUS$ 0.1 - 0.3MOQ: 50 Kilometers -
22 Years Factory Price RG59 Cctv Combo CableNegotiableMOQ: 50 Kilometers
-
Factory Price Coaxial Cable RG59,Coaxial Cable RG59, RG59 Cable CoaxialNegotiableMOQ: 20 Kilometers
-
High Quality 75 Ohm RG59 Combo Cable,RG59 Coaxial Cable SiameseUS$ 1 - 100MOQ: 100 Cartons
-
High Quality RG59 2C Siamese Coaxial CableUS$ 1 - 300MOQ: 30 Kilometers
Specifications
1. RG59 Coaxial Cable,Siamese Cable RG59 2C2.20AWG The best cost-effective
3. 21 years cable experience
4. ISO9001/CE/ROHS

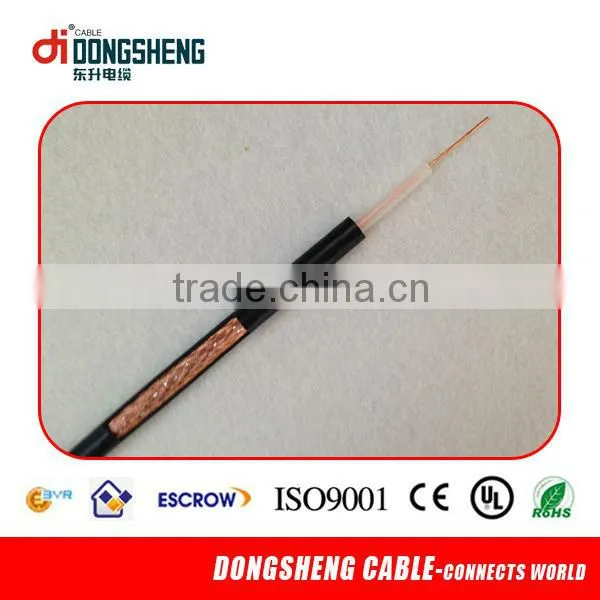

Best Quality RG59 Coaxial Cable
RG59 Coaxial Cable
1) Siamese CCTV Cable RG59+2C/18AWG
0.81± 0.01mmBC/CCS+3.66mm SPE+80X0.12mm CCA/BC 60% Braid+6.10mm PVC+2/7*0.38mmCCA/BC
2) RG59 Coaxial Cable 75ohm for Video
0.58mmCCS+3.66mmSPE+112X0.12mmCCA/BC Braid+6.10mm PVC Jacket
3) RG59 CCTV Cable
0.64mmBC/CCS+3.66mmSPE+80X0.12mmCCA/BC/AL 60% Braid+6.10mm PVC
4) RG59 Coaxial Cable 75ohm
0.81mmBC/CCS+3.66mmPE Foam+Bonded Al Foil+80X0.12mm Al 60% Braid+6.10mm PVC
RG59 COAXIAL CABLE WITH 2 POWER CABLES 2/18AWG
RG59 95%BC POWER 2-18AWG 1) Specifications | |||||||||||||||||||||||||||||
Center Conductor: | 0.81+0.005mm Solid Copper | ||||||||||||||||||||||||||||
Dielectric: | 3.66+0.05mmFoam PE | ||||||||||||||||||||||||||||
Braid Coverage: | 95% Copper | ||||||||||||||||||||||||||||
Jacket: | 6.1+0.10mm PVC | ||||||||||||||||||||||||||||
Jacket Thickness: | 0.0381mm | ||||||||||||||||||||||||||||
2-18 | |||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
2) Characteristics | |||||||||||||||||||||||||||||
Spark Test: 2000 VAC | |||||||||||||||||||||||||||||
Dielectric Strength: Conductor to Shield: 2000VDC | |||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
3) Attenuation | |||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required
Packing:
1) Packing Lengths:100/roll,200m/roll,300m/roll
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients’request
Product Package:
Product Certification:
Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.
More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition.
Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is Promise high quality cable .
Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and gain good reputation.We will meet client requirements
