Specifications
1.ISO/IEC 11801,ANSI/TIA/EIA-568B/C2.CE,Rohs,UL,ISO9001 approved
3.OEM, 21 years factory
4.CCTV, CATV security
22 years factory Price RG59 cctv combo cable
cctv combo cable
Specifications:
BC: Bare Copper TC: Tinned Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminium C:Cores
RG59+ 2C POWER CABLE
1)0.64CCS/BC+ 3.3SPE/FPE+96*0.12CCA braiding+Al foil+5.8PVC+ Power cable:16*0.2CCA+2*0.5mm²,OD:2.3*4.6
2) 0.81CCS/BC+3.7SPE/FPE+96*0.12CCA braiding+Al foil+5.8PVC+ Power cable 16*0.2CCA+2*0.5mm²,OD:2.3*4.6
2) Customers' specifications are wellcomed.
Detailed Description:
Note:
1) Center conductor: TC , BC and CCS available, CCA;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil and Messenger are available;
3) Braiding wire: AL, BC and TC available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant , UV, or UL available.
Power Cable:
1) VDE/KEMA Flexible Cord
2) Light Duty PVC Jacket Flexible Cord
3) Ordinary Duty PVC Jacket Flexible Cord
4) Wire For Internal Wiring Of Equipment
Application
Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

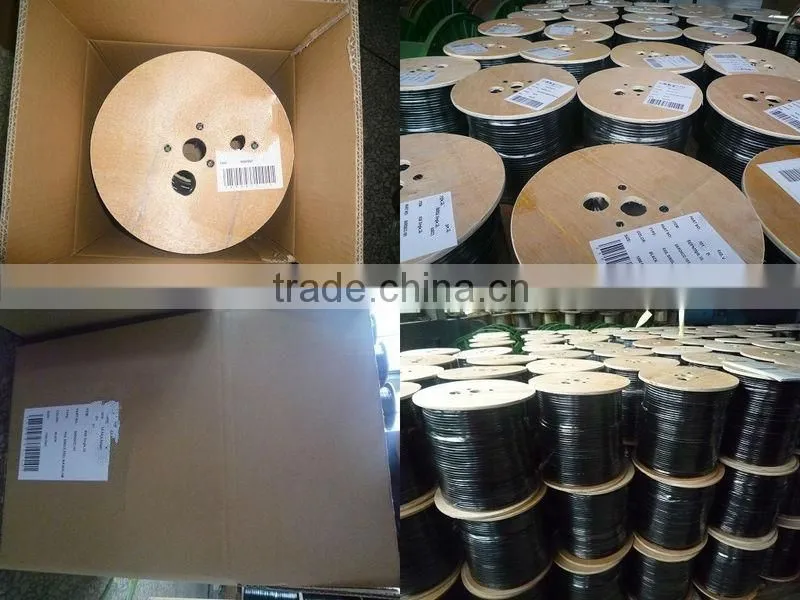

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
Products Photos:
Certificate:
Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
