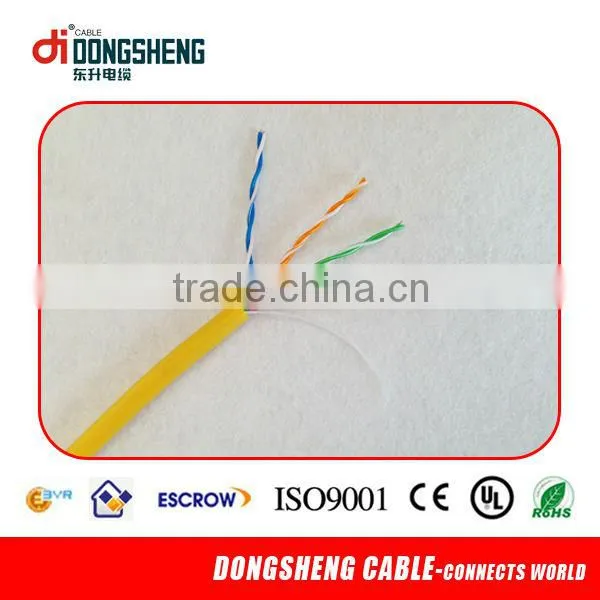

Help CenterHOT NETWORK Sell Siamese Cable Rg6+cat5e
Related Products
-
Combined Cable Rg59 Siamese CableUS$ 0.02 - 0.1MOQ: 50 Kilometers -
Brazil Market Cabo CCTV RF 4mmUS$ 7 - 80MOQ: 30 Kilometers
-
Belden RG59 Power CableUS$ 0.1 - 100MOQ: 61 Kilometers
-
Professional Export to Europe, South America Coaxial Cable RG6+2C/18AWGNegotiableMOQ: 10 Kilometers
-
0.81mm CCS/BC Conductor Siamese Coaxial Cable Kx6+2C*0.75NegotiableMOQ: 10 Kilometers
Specifications
1.ISO/IEC 11801,ANSI/TIA/EIA-568AUL &ISO900 1&PASS FLUKE TEST
2.UTP, FTP & SFTP available
3.OEM service
Conductor:
Material:Bare copper,CCA,CCS
Number of pairs:4pairs
AWG:24awg
Conductor diameter:0.515±0.003mm
Insulation:
Material:HDPE and FRPE
Diameter:0.91±0.005mm
Average thickness:0.212mm
Minimum point thikness:0.2095mm
First screen:aluminum mylar shield(superposition rate:25%)
Overall screen:80/0.1mm TC braid shied(coverage:60%)
Braiding shield(48/64/96/112x0.12mm or 0.15mm or 0.16mm,braid material,AL-MG,CCA,CCS,copper or tinned copper for braid),FR/PVC or LSOH jacket
Sheath:
Material:PVC or LSOH
Nominal diameter:5.4±0.2mm
Average thickness:0.50mm
Operating temperature:-20 to 75°C
Minimum bend radius (install):(8*OD)
Flame test:CMX,CM,and IEC60332-1
Reference standard:TIA/EIA568B and IEC/ISO11801
Spec:
FOB: shanghai
Packing:
or
L:45.5cm ×W:37cm ×H:37.5cm
Our Lan Cable Series
Major products in the company cover Telephone wire,Lan cable&Coaxial cable.CAT3,CAT5,CAT5E,CAT6,
CAT5EM,RG6,RG11,Combine cables,Alarm Cables etc.are our popular items.
Factory Show
Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng Cable
Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape
and convenient communication facilities.
Products Certifications
Founded in 1991,the company's rapid development helps us to be the industry leader.Ithas passed the ISO9001
quality system certification&UL certification,conferred with foreign trade license.It comes at the top of an
enterprise's comprehensive strength.
Packaging Choice
Testing Equipment
Exhibition
Our motto is“Keeping pace with the time,and going up like the sun”,just as our company`s name suggests:
“Dongsheng”.We are looking forward to establishing long term&mutual benifit business relationship with you.
