Specifications
1) Brazil Market Cabo CCTV RF 4mm2) Since 1991 years
3) For CCTV camera system
4) CE ROHS ISO

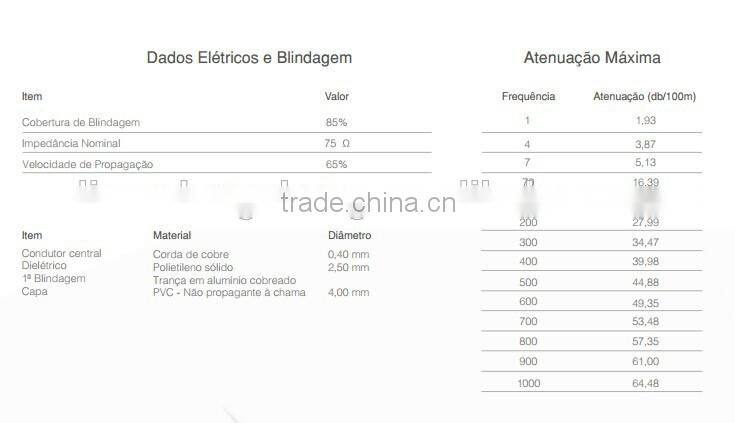

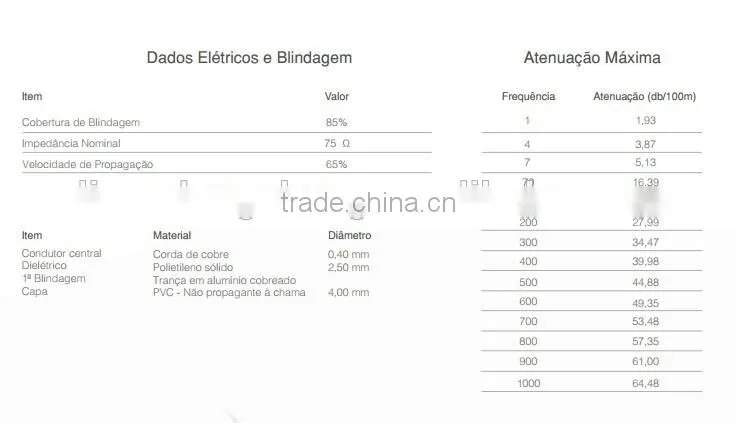

Brazil Market Cabo CCTV RF 4mm
Cabo CCTV RF 4mm
Specification
France market Siamese Cable KX6+2C*0.75mm CCTV Camera Cable

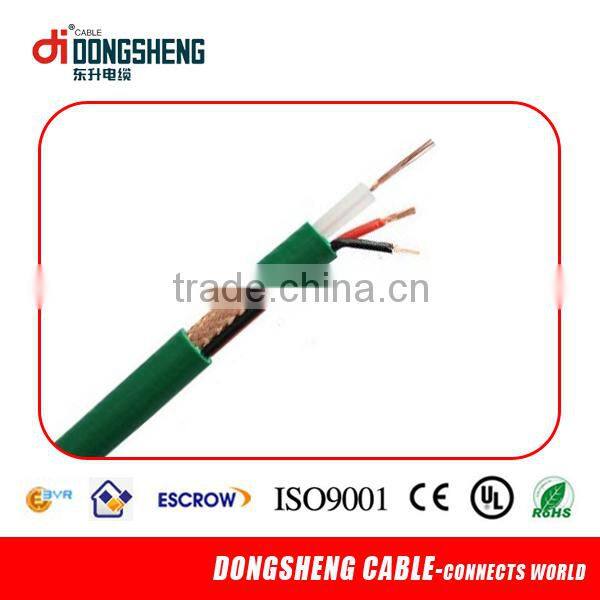

Siamese Cable KX6+2C*0.75mm CCTV Camera Cable
Physical specification
Center Conductor: |
7*0.2+0.01mm Solid Copper |
| Dielectric: | 3.7+0.05mm Solid PE |
| Shield: | |
| Bradi Coverage: | 35%-90% BC/CCA |
| Jacket: | 6.15+0.05mm PVC /PE |
2C Power wire:
0.3X7 CCA+1.8 Black/red PVC
Overall jacket: 6.0X3.5X5.5 PVC
2. KX6 coaxial cable electrical properties
| Impedance: | 75+3 Ohm |
| Capacitance: | 50+3pF/km |
| Velocity of Propagation: | 85% |
| Conductor resistance Max: | Inner:16.8 ohms/km Outer:26 ohms/km |
| Return Loss: | 20dB min (5-2150MHz)gbgfbbgfb |
Attenuation |
[@68o F. (20o C.)] | |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.46 | 1.5 |
| 50 | 1.31 | 4.3 |
| 100 | 1.80 | 5.9 |
| 200 | 2.56 | 8.4 |
| 400 | 3.66 | 12.0 |
| 800 | 5.34 | 17.5 |
| 862 | 5.58 | 18.3 |
| 950 | 5.86 | 19.2 |
| 1350 | 7.11 | 23.3 |
| 1750 | 8.24 | 27.0 |
| 2150 | 9.33 | 30.6 |
| 3000 | 11.22 | 36.8 |
Application
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Packing 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request; 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. (Other packing available according to client's request. )

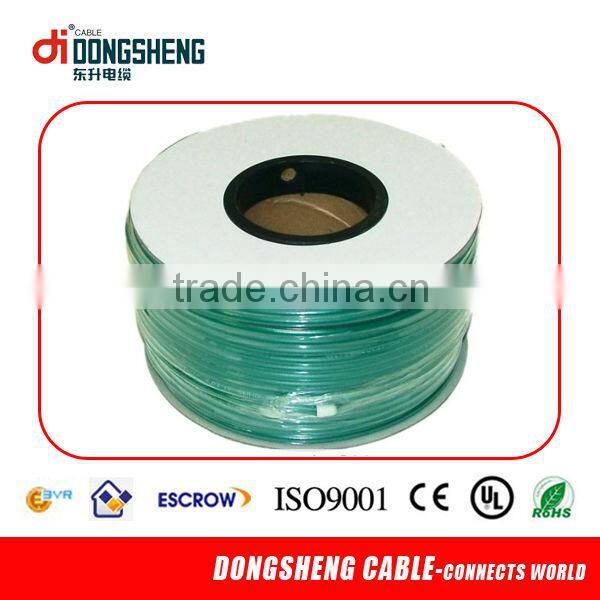

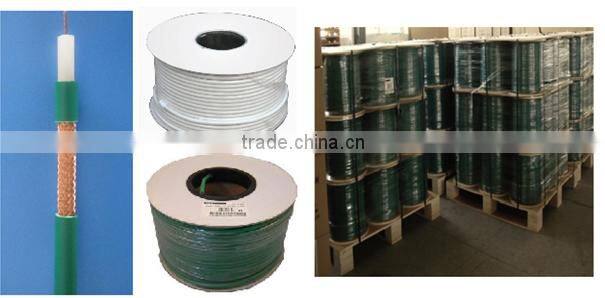

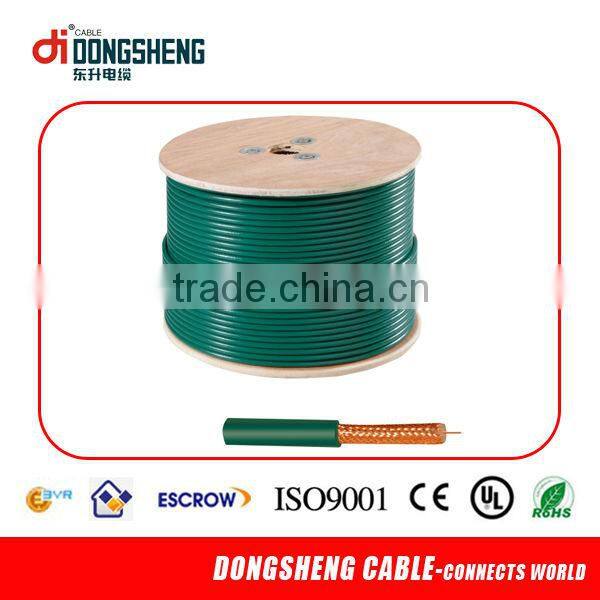

Cable Picture and Package
Factory Show
Certification
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) Koaxial Kable CT100 , KX6, KX8 ,17VATC,19VATC, SAT703, BT3002
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
