0.81mm CCS/BC Conductor Siamese Coaxial Cable Kx6+2C*0.75

0.81mm CCS/BC Conductor Siamese Coaxial Cable Kx6+2C*0.75 photo-1
Negotiable MOQ: 10 Kilometers (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
dongsheng
Model Number:
Siamese Coaxial Cable kx6+2C*0.75
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name dongsheng
Model Number Siamese Coaxial Cable kx6+2C*0.75
Type Coaxial
Number of Conductors 1

Specifications

1)OEM/ODM
2)The best cost-effective
3)21 years Coaxial Cable experience
4)ISO9001/CE/ROHS/UL
5)Siamese Coaxial Cable

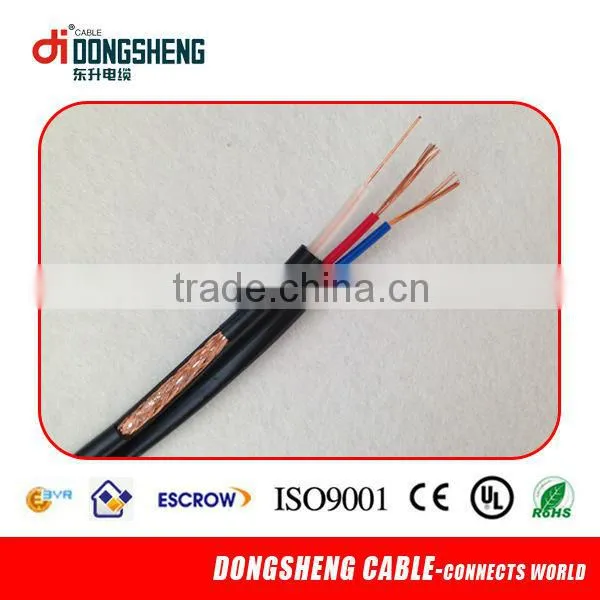

Siamese Coaxial Cable kx6+2C*0.75



CCTV CABLE, RG59+2C Power, RG59+POWER, RG59+2C, RG59 SIAMES, RG59 COAXIAL CABLE, CCTV CABLE,CCTV1+2 CABLE



Specifications:

   BC: Bare Copper     TC: Tinned Copper

   CCS: Copper Clad Steel

   CCA: Copper Clad Aluminium   C:Cores

1)kx6+2C

    RG59:7*0.2mm CCS/BC Conductor +3.65mm Solid/Foam PE+BC/TC Braiding +6.1mm PVC Jacket

   2C/18AWG power cable:2C*7*0.38mm BC/CCA Conductor + 2.17mm PVC Insulation + 0.63mm PVC Jacket

2) Customers'  specifications are wellcomed.



Note:

1) Center conductor: TC , BC  and CCS available, CCA;

2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil and Messenger are available;

3) Braiding wire: AL, BC and TC available;

4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;

5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128, 144 and more available;

6) Braiding coverage: Between 30- 97% available;

7) PVC jacket of Flame retardant , UV, or UL available.



Application:

For audio and power transmission

Power Cable:

1) VDE/KEMA Flexible Cord

2) Light Duty PVC Jacket Flexible Cord

3) Ordinary Duty PVC Jacket Flexible Cord

4) Wire For Internal Wiring Of Equipment



Our Coaxial Cable Series :



0.81mm CCS/BC Conductor Siamese Coaxial Cable kx6+2C*0.75



0.81mm CCS/BC Conductor Siamese Coaxial Cable kx6+2C*0.75

0.81mm CCS/BC Conductor Siamese Coaxial Cable kx6+2C*0.75







Factory Show

Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng

Cable Co.,Ltd. is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful

landscape and convenient communication facilities.



0.81mm CCS/BC Conductor Siamese Coaxial Cable kx6+2C*0.75





Products Certifications

Founded in 1991,the company's rapid development helps us to be the industry leader.Ithas passed the ISO9001

quality system certification&UL certification,conferred with foreign trade license.It comes at the top of an

enterprise's comprehensive strength.



0.81mm CCS/BC Conductor Siamese Coaxial Cable kx6+2C*0.75





Packaging Choice







Testing Equipment







Exhibition







Our motto is“Keeping pace with the time,and going up like the sun”,just as our company`s name suggests:

“Dongsheng”.We are looking forward to establishing long term&mutual benifit business relationship with you.







0.81mm CCS/BC Conductor Siamese Coaxial Cable kx6+2C*0.75
