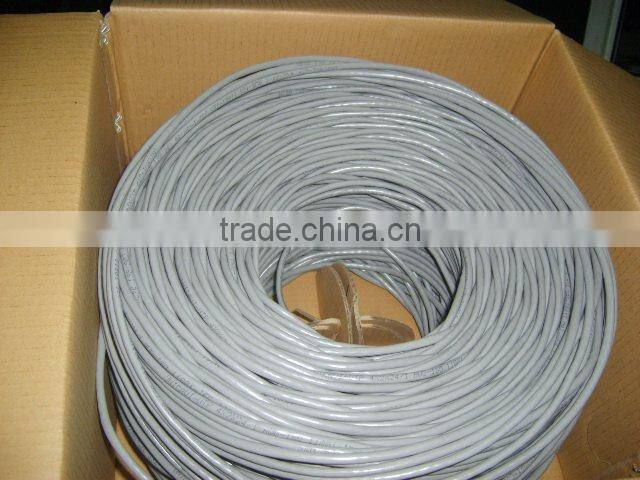

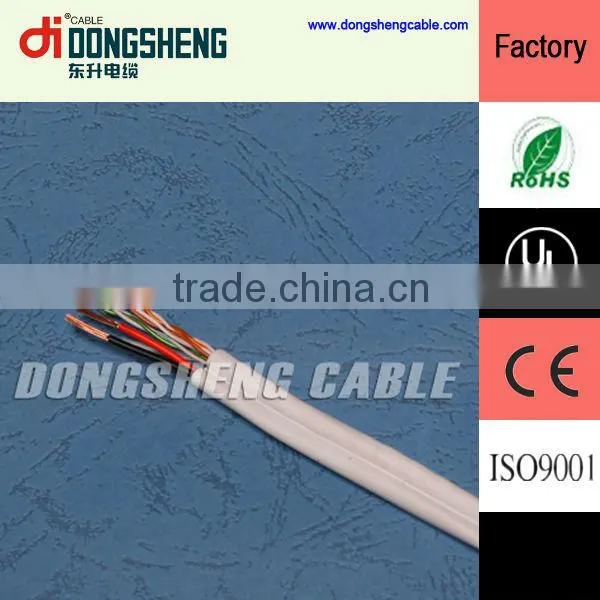

Cat5e siamese cable

Specifications

1.ISO/IEC 11801,ANSI/TIA/EIA-568B/C
UL,ISO9001,PASS FLUKE TEST DTX-1800
2. OEM, 21 years factory
3.Network cabling solution

cat5e siamese cable



BC: Bare Copper CCS: Copper Clad Steel

CCA: Copper Clad Aluminium P: Pairs



Tips: We can ensure to pass the FLUKE TEST DTX-1800,  with a high performance in your cabling system/solution



1.Specification:

1) 4P*0.5mm BC/CCA/CCS Conductor+0.91mm PE Insulation+5.1mm PVC Jacket



2)  4P* 0.48mmBC/CCA/CCS Conductor+0.88mm PE Insulation+5.1mm PVC Jacket



3) Customers' specifications are wellcomed.



Note:

1)Rated Temperature: 60º C, 75º C



2) Center Conductor: BC, CCS, CCA.



3) Colour-coated PE insulation



4) Flammadbility Grade: CMX, CM,CMR, IEC60332-1



5) PVC or LSZH jacket



2.Application:

10 Base-T

100 Base-TX

100VG-AnyLan

1000 Base-T(Gigabit Ethernet)

155 Mbps ATM

622 Mbps ATM



3.Desctription:



Conductor:

Material:Bare copper

Number of pairs:4pairs

AWG:24awg

Conductor diameter:0.50±0.003mm



Insulation:

Material:HDPE and FRPE

Diameter:0.91±0.005mm

Average thickness:0.212mm

Minimum point thikness:0.2095mm



Sheath:

Material:PVC,PE or LSZH

Nominal diameter:5.1±0.2mm

Average thickness:0.50mm

Operating temperature:-20 to 75°C

Minimum bend radius (install):(8*OD)

Flame test:CMX,CM,and IEC60332-1

Reference standard:TIA/EIA568B and IEC/ISO11801



4.Data Sheet

Frequency   MHz	Return loss   dB	Attenuation    dB/100m	NEXT  dB	ACR  dB	PSNEXT  dB	ELEFXT  dB/100m	PSELEXT dB/100m	Delay ns/100m
0.772	19.4	1.8	67	65	64	66	63	575
1.0	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570
4.0	21.0	4.1	56.3	52.0	53.3	51.7	48.7	562
6.0	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10.0	25.0	6.5	50.3	44.0	47.3	43.8	40.8	546.4
16.0	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543
20.0	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542
25.0	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17	38.4	21.0	35.4	27.8	24.8	438.6
100.0	20.1	22	36.3	13.0	32.3	23.8	20.8	537.6





5. Product photos









6.Packing:





Certificate:

We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.



 Test Equipment



Factory and Production line

We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.





Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with  the old customer, also show our company to the future new customers.



More types of Cables we do

We also produce these cables for more than 21 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
