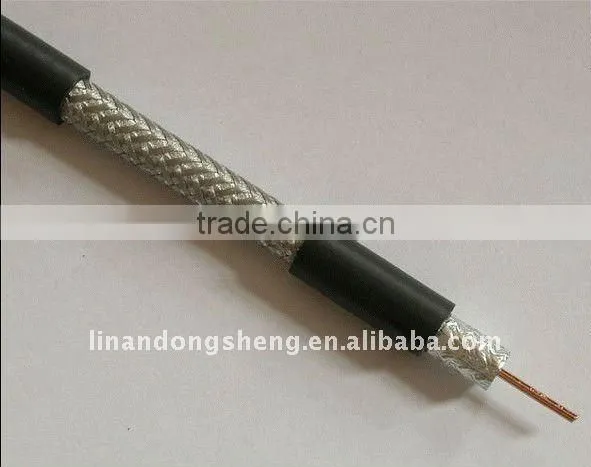

RG59 2C Combine cable
- 8000 Kilometer / Kilometers per Month
- Shanghai
- T/T
- Ev charging cable 25mm2 --- 70mm2 Orange 1000/1500V Double insulated HV cable electric vehicle shielded cable
- HDMI CABLE
- PTC temperature sensing wire, pvc double insulation.
- UL1285 PVC or silicone rubber spiral heating wire
- PE outer layer black 2.5mm aluminum core or Galvanized steel wire electric fence underground cable
- High quality Copper Conductor Flexible PVC RVVP Control Cable
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Dongsheng | Model Number: | Combined Cable |
Conductor Material: | Copper | Insulation Material: | PE | Jacket: | PVC |
Number of Conductors: | 2 cores | Application: | Communication or Network |
Product Description
Specifications
Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systemsRG59 2C Combine cable
BC: Bare Copper TC: Tinned Copper
CCS: Copper Clad Steel CCA: Copper Clad Aluminium C:Cores
1) 0.81mm BC/CCS+ 3.66mmSolid PE + A/P(bonded)+60% copper Braiding +6.1mm PVC
2) 0.58mm BC/CCS + 3.66mmSolid PE + A/P(bonded)+60% copper Braiding +6.1mm PVC
3)OEM order is welcome
Description:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30-- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.
Suitable for television, CATV, cable moderns and radio communication. Customized specifications are available.
Reference standard:MIL-C-17G Black
Type of coaxial cable: RG 59, RoHS compliance
Application:
Drop cable for CATV and MATV distribution
Features:
1) High physical foaming
2) Low loss in attenuation
3) Options:
a) Dual
b) Quad shield
c) Messenger
d) Quad shield and messenger
cation:
Telephone handset cord or line cord
Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng Cable Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape and convenient communication facilities.
Founded in 1991,the company's rapid development helps us to be the industry leader.Ithas passed the ISO9001 quality system certification&UL certification,conferred with foreign trade license.It comes at the top of an enterprise's comprehensive strength.
Major products in the company cover Telephone wire,Lan cable&Coaxial cable.CAT3,CAT5,CAT5E,CAT6,CAT5EM,RG6,RG11 etc.are our popular items.
Our motto is“Keeping pace with the time,and going up like the sun”,just as our company`s name suggests:“Dongsheng”.We are looking forward to establishing long term&mutual benifit business relationship with you
