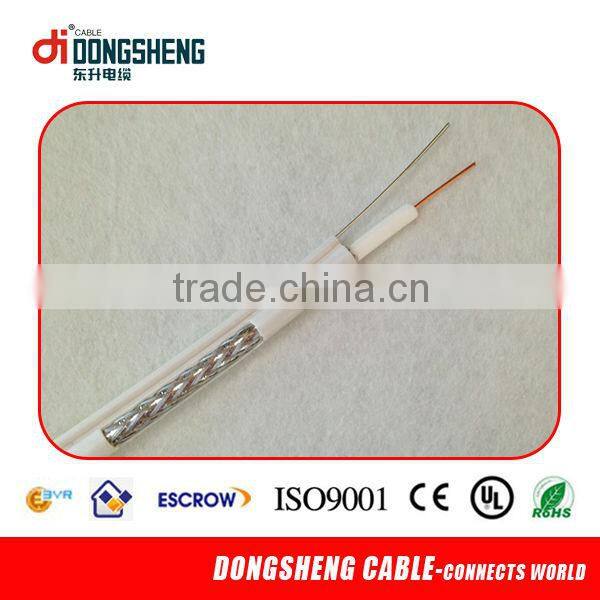

Coaxial Cable RG6+M Siamese Cable

Specifications

1.2012 Top Sales
2.The best cost-effective
3.21 years Coaxial Cable experience
4.ISO9001/CE/ROHS/U

Coaxial Cable RG6+M

Specifications:

1)  RG6 Coaxial Cable  75ohm  dual shield(standard)

     1.02mm BC Conductor + 4.57mm PE Foam + Al Foil + Braiding + 6.9mm PVC Jacket

2)  RG6 Coaxial Cable  75ohm  quad shielded

     1.02mm BC Conductor + 4.57mm PE Foam + double-Al Foil + double-Braiding + 7.3mm PVC Jacket

3)  Customers’specifications are welcomed



BC: Bare Copper   CCS: Copper Clad Steel

TC: Tinned Copper   CCA: Copper Clad Aluminum



Note:

1)     Center conductor:BC,TC,CCA,CCS

2)     Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double

        non-bonded Al-foil are available

3)     Braiding wire:Al,BC,,TC,CCA,CCS Available

4)     Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available

5)     Braiding net:32,48,64,72,80,96,120,128,144 and more available

6)     Braiding coverage:Between 30-97%

7)     PVC jacket of flame retardant,UL Available





Characteristics:

SRL(dB)	Nom.Impedance(ohm)	Max.Attenuation.(Mhz dB/100m)
15	75	1	0.85	700	18.36
		50	4.79	1000	21.61
		100	6.72	1450	26.36
		200	9.28	1800	28.98
		400	13.28	2200	32.03



Application:

Coaxial Cable RG6  75ohm (For CCTV)

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable

for satellite systems where lower attenuation required



Factory Show



Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng Cable

Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape

and convenient communication facilities



Exhibition Trade Show



We attend to 5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.



More types of Cables we do



We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.



Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in  Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and  Ningbo port with facilitated transportation



 As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition
