Specifications
RG6 Coaxial Cable Messenger Wire1.2012 Top Sales
2.The best cost-effective
3.22 years Cable experience
4.ISO9001/CE/ROHS

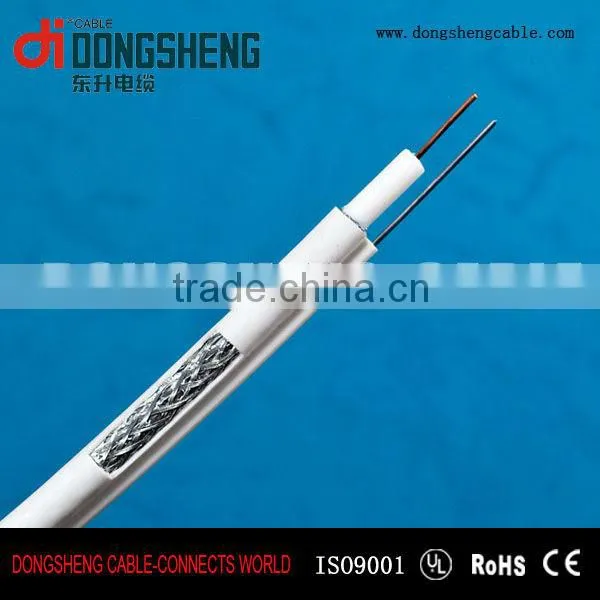

RG6 Coaxial Cable Messenger Wire
Specifications:
1) 1.02mm BC Conductor + 4.57mm PE Foam + Al Foil + Braiding + 6.9mm PVC Jacket+1.2mm Steel
2) Customers’specifications are welcomed
BC: Bare Copper CCS: Copper Clad Steel
TC: Tinned Copper CCA: Copper Clad Aluminum
Note:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available
Characteristics:
SRL(dB) |
Nom.Impedance(ohm) |
Max.Attenuation.(Mhz dB/100m) |
|||
|
15 |
75 |
1 |
0.85 |
700 |
18.36 |
50 |
4.79 |
1000 |
21.61 |
||
100 |
6.72 |
1450 |
26.36 |
||
200 |
9.28 |
1800 |
28.98 |
||
400 |
13.28 |
2200 |
32.03 |
||
Application:
Coaxial Cable RG6 75ohm (For CCTV)
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required
Factory Show
Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng Cable Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape and convenient communication facilities
Exhibition Trade Show
We attend to 5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.
More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition
