Heliax LMR300 Communication Cable
Heliax LMR300 Communication Cable
Andrew 50 ohm LMR300 Cavo Coassiale
50 ohm Coaxial Cable LMR300 Construction Specification
Coaxial Cable LMR300 Construction Specification | ||
Material |
Diameter(mm) |
|
1.Inner Conductor |
Solid Copper or CCA |
1.78 |
2.Dielectric |
Physical Foam Polyethylene |
3.81 |
3.Outer Conductor |
Bonded Aluminum Foil+Tinned Copper Braid |
5.72 |
4.Jacket |
Black Polyviny Chloride - FRPVC |
7.62 |
50 ohm Coaxial Cable LMR300 Packing:
1) Packing Lengths: 300m/wooden, 305m/wooden,500m/drum
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.

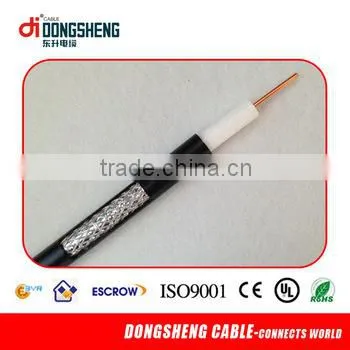

50 ohm Coaxial Cable LMR300 Products Photos:
50 ohm Coaxial Cable LMR300 Electrical Characteristics :
1) Characteristics Impedance: 50+/- 3 Ohms
2) Capacitance Conductor to Shield: 78pF/m
3) Velocity of Propagation : 85%
4) Min.Structural Return Loss (5-3000MHz) : 20 dB
5) Max. Attenuation :
@Frequency(Mhz) |
Max Attenuation(dB/100ft) |
Max Attenuation(dB/100m) |
|||||
30 |
1.1 |
3.5 |
|||||
50 |
1.4 |
4.5 |
|||||
150 |
2.4 |
7.9 |
|||||
220 |
2.9 |
9.6 |
|||||
450 |
4.2 |
13.8 |
|||||
900 |
6.1 |
19.9 |
|||||
1500 |
7.9 |
26.0 |
|||||
1800 |
8.7 |
28.7 |
|||||
2000 |
9.2 |
30.3 |
|||||
2500 |
10.4 |
34.2 |
|||||
5800 |
16.5 |
54.2 |
|||||
Application:
LMR Series cables are high performance broadband,flexible,low loss 50 Ohm coaxial communication cables designed for wireless application such as: Cellular,Mobile Antennas,wireless local loop,wireless internet,broadband wireless data.Compared to RG type braided cables, HSR cables offer far lower loss and better RF shielding.
Factory Show
Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng Cable
Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape
and convenient communication facilities.
Products Certifications
Founded in 1991,the company's rapid development helps us to be the industry leader.Ithas passed the ISO9001
quality system certification&UL certification,conferred with foreign trade license.It comes at the top of an
enterprise's comprehensive strength.
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) Koaxial Kable CT100 , KX6, KX8 ,17VATC,19VATC, SAT703, BT3002
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
