Coaxial Cable LMR400
Coaxial Cable LMR400
50 Ohm Antenna Cable LMR400
Belden LMR400 Coaxial Cable
50 ohm Coaxial cable LMR400 Construction Specification
Item |
Material |
Diameter(Inch/mm) |
|
|
Inner Conductor Dielectric Out Conductor Overall Braid Jacket |
Bare Copper/CCA Foam PE Bonded Aluminum Tinned Copper Wire Braid PVC/PE |
0.108 0.285 0.291 0.320 0.405 |
2.74 7.24 7.39 8.13 10.29 |
Packing:
1) Packing Lengths: 300m/wooden, 305m/wooden,500m/drum
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.

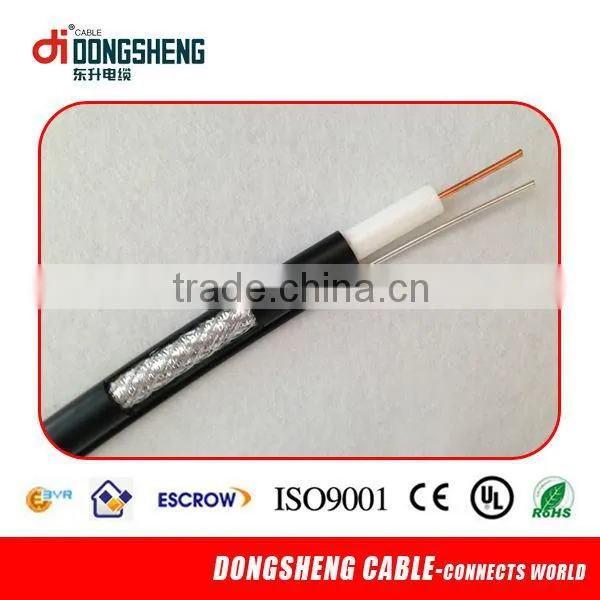

Products Photos:
50 ohm Coaxial Cable LMR400 Electrical Characteristics
1) Characteristics Impedance: 50+/- 3 Ohms
2) Capacitance Conductor to Shield: 78.4pF/m
3) Velocity of Propagation : 85%
4) Min.Structural Return Loss (5-3000MHz) : 20 dB
5) Max. Attenuation :
@Frequency(Mhz) |
Max Attenuation(dB/100ft) |
Max Attenuation(dB/100m) |
|||||
30 |
0.7 |
2.2 |
|||||
50 |
0.9 |
2.9 |
|||||
150 |
1.5 |
5.0 |
|||||
220 |
1.9 |
6.1 |
|||||
450 |
2.7 |
8.9 |
|||||
900 |
3.9 |
12.8 |
|||||
1500 |
5.1 |
16.8 |
|||||
1800 |
5.7 |
18.6 |
|||||
2000 |
6.0 |
19.6 |
|||||
2500 |
6.8 |
22.2 |
|||||
5800 |
10.8 |
35.5 |
|||||
Application :
LMR Series cables are high performance broadband,flexible,low loss 50 Ohm coaxial communication cables designed for wireless application such as: Cellular,Mobile Antennas,wireless local loop,wireless internet,broadband wireless data.Compared to RG type braided cables, HSR cables offer far lower loss and better RF shielding.
Factory Show
Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng Cable
Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape
and convenient communication facilities.
Products Certifications
Founded in 1991,the company's rapid development helps us to be the industry leader.Ithas passed the ISO9001
quality system certification&UL certification,conferred with foreign trade license.It comes at the top of an
enterprise's comprehensive strength.
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable, Fire Alarm Cable
4) Optical Fiber Cable(GYXTC8S, GYXTC8S, ADSS, FTHH ect.)
5) Speaker Cable,Power Cable, Electrical Cable, Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm RG174 RG58 RG214 LMR400
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna
