RG11 Messenger Coaxial Cable

FOB Price

USD $20 - $40 / Carton

100 Cartons(Min.Order)

Supply Ability 20000 Kilometer / Kilometers per Month
Port Fob Shanghai or Ningbo Seaport
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	DongSheng Cable
Model Number	Belden 75 ohm Coaxial Cable RG11Messenger	Type	Coaxial
Number of Conductors	1

Product Description

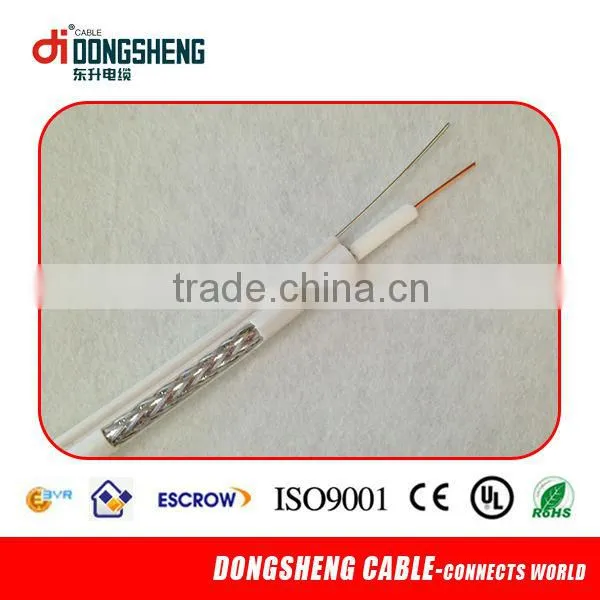

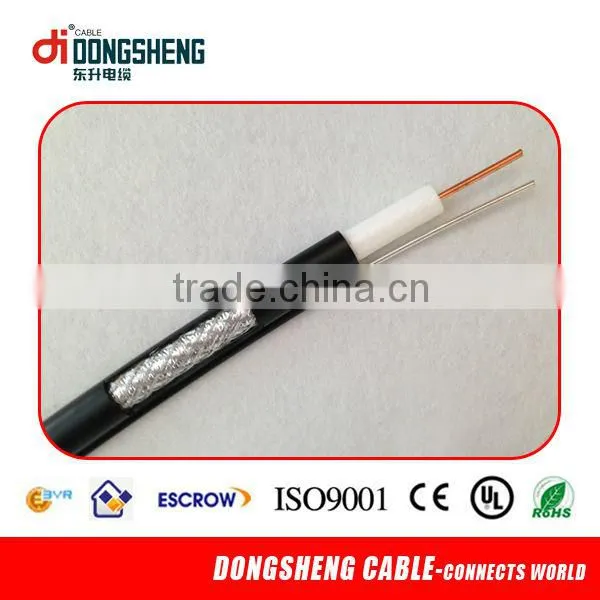

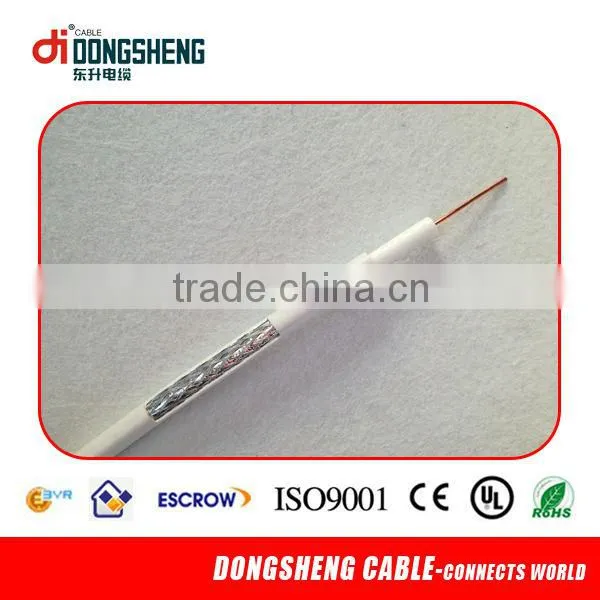

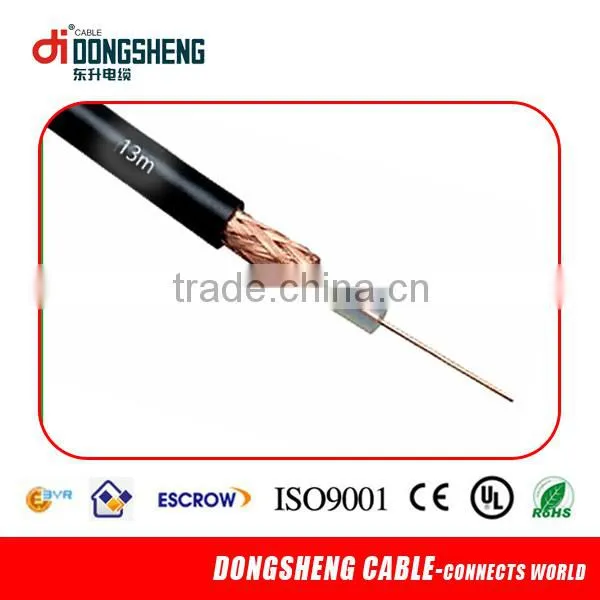

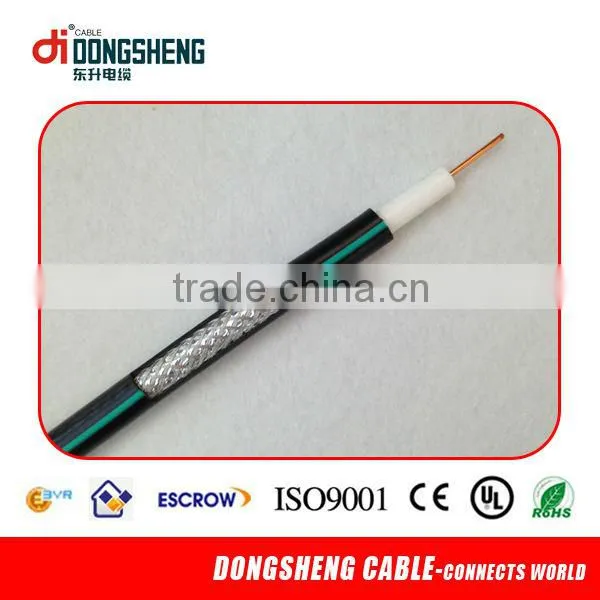

RG11 Messenger Coaxial Cable

1. OEM is OK
2. ISO9001/CE/REACH/ETL
3. Stable quality with competitive

Specification:

Physical Dimensions
Component		Standard Shield	Tri-Shield	Quad-Shield
Conductor	Material	CCS/BC	CCS/BC	CCS/BC
	Dia. (mm)	1.63±0.01	1.63±0.01	1.63±0.01
Dielectric	Material	Foam PE	Foam PE	Foam PE
	Dia. (mm)	7.11±0.10	7.11±0.10	7.11±0.10
Shield	Material	Al Foil + Al Braid	Al Foil + Al Braid + Al Foil	(Al Foil + Al Braid)*2
	Coverage	40%-95%	40%-95%	40%-95%
Jacket	Material	PVC/PE	PVC/PE	PVC/PE
	Dia. (mm)	10.03±0.10	10.16±0.10	10.34±0.10
Messenger	Material	Galvanized Steel	Galvanized Steel	Galvanized Steel
	Dia. (mm)	1.83±0.01	1.83±0.01	1.83±0.01
Mechanical Characteristics
Minimum Breaking Strength of Messenger			166kgf
Electrical Characteristics
Impedance(Ω)			75±3
Velocity of Propagation			83%
Capacitance(pF/m)			53.1
Structural Return Loss(≥dB)			20
Attenuation [@ 68° F. (20° C)]
Frequency(MHz)			Maximum(dB/100m)
5			1.25
55			3.18
211			5.94
300			7.05
400			8.10
550			9.65
750			11.48
1000			13.88
1450			18.10
1800			20.60
2250			23.50
3000			28.90

Products Photos and Package

Factory Show

Certification

Testing Equipment

Exhibition
