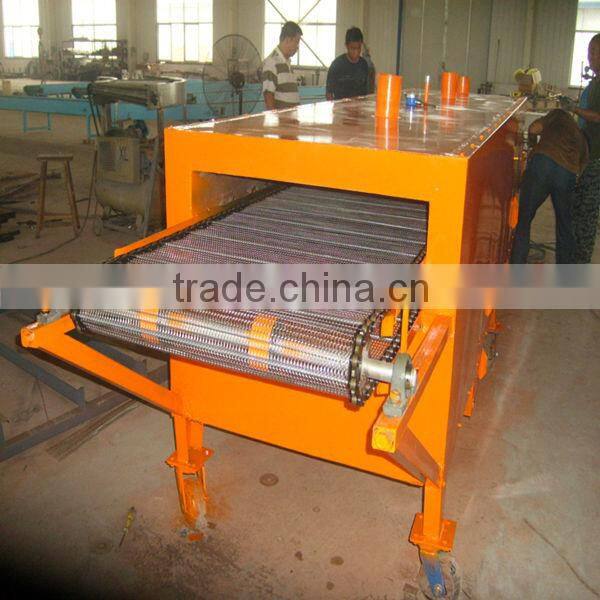

Help CenterBest Selling Belt Dryer Machine for Fruit With the Best Service
Related Products
-
High Technology and Bell Selling Electric Food Dryer With CEUS$ 5,009 - 47,788MOQ: 1 Set -
Factory Supply Belt Dryer Cassava Flour Drying Machine With CEUS$ 7,000 - 90,000MOQ: 1 Set
-
Factory Supply Belt Dryer Cassava Chip Drying Machine With CEUS$ 7,000 - 90,000MOQ: 1 Set
-
Factory Supply Belt Dryer Cassava Chips Drying Machine With CEUS$ 7,000 - 90,000MOQ: 1 Set
-
Factory Supply Cassava Drying Machine Food Belt Dryer With CEUS$ 7,000 - 90,000MOQ: 1 Set
The features of belt dryer:
1. High degree of mechanization,large production capacity,continuous option
2. Simple and excellent structure,material running smoothly through the cylinder, operating convenience.
3. Less mechanical failure,low maintain charge,low power consumption.
4. Uniformity of drying product is good.
5. Drying production line using a special scattered installations to ensure the dryer's drying effect.
6. Using innovative and unique sealing device, and sophisticated keepwarm system. Thus to reduce the coal consumption of the system effectively.
7. The whole system holds a good performance of sealing. It also has a complete dust removal equipment . There is no dust spilling. It is also has a good operationg environment.
8. The whole drying system uses the electric centralized control, autocontrol of temperature for hot air, high automation and convenient operation.
9. You can join in the crushing, mixing, granulating, packing and other follow-up steps after drying to produce the finished product of beandregs particle feed.
The working principle of Mesh belt dryer:

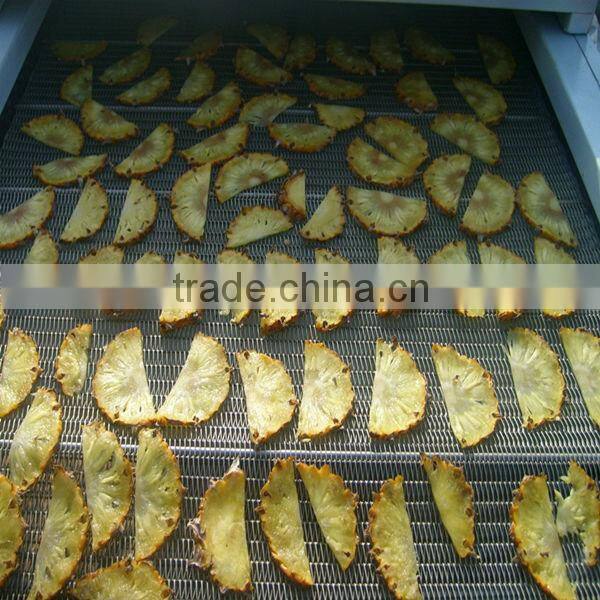

1. Materials are uniformly put on the mesh-belt by the feeder. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device.
2. The drier is composed of several units. For each unit, the hot air is circulated separately. Some exhausted gas is discharged with a special moisture elimination blower.
3. The waste gas is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process.
4. This process will bring the material water away. The mesh-belt moves slowly, Running speed can be freely adjusted according to the material temperature.
5. The final products after the drying will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the users’ demand. The unit number can be selected according to the demand.
Technical parameters:
Model |
KHWD6 |
KHWD8 |
KHWD10 |
KHWD12 |
KHJWD16 |
KHWD20 |
KHWD24 |
KHWD30 |
Width of belt(mm) |
600 |
800 |
1000 |
1200 |
1600 |
2000 |
2400 |
3000 |
Length of drying section(m) |
6-12 |
6-12 |
6-16 |
8-16 |
8-22 |
10-26 |
12-30 |
12-40 |
Length of feeding section(m) |
1 |
1 |
1 |
1 |
1 |
1.5 |
1.5 |
2 |
Length of transmitting section(m) |
1 |
1 |
1 |
1 |
1 |
1.5 |
1.5 |
2 |
Drying area(m2) |
3.6-36 |
4.8-48 |
6-80 |
7.2-96 |
12.8-105.6 |
20-260 |
28.8-360 |
36-600 |
Unit mumber |
1-5 |
|||||||
Interlamellar spacing (mm) |
400-600 |
|||||||
Carrying capacity |
90-200 Kg/m2 |
|||||||
Operation temperature (°C) |
carbon steel≤400 C°,stainless steel≤600 C° |
|||||||
Drying strength((kgH2O/h) |
5-20kg H2O/m2.h |
|||||||
Heat source |
hot wind,electricity,steam |
|||||||
Running speed |
0.06-1m/min |
|||||||
Transmission powder(kw) |
1.1-2.2 |
1.1-2.2 |
1.1-2.2 |
1.1-3 |
1.5-3 |
1.5-4 |
3-7.5 |
5-11 |
Matching equipment |
conveying equipment,air heating furnace,dust removing equipment,draught fan etc |
|||||||
