Factory Supply Cassava Drying Machine Food Belt Dryer
Description of Food Belt Dryer :
Our Food Belt Dryer belong to Belt Dryer, is a batch, continuous production drying equipment, use Steel Mesh for carrying materials for continuous drying, suitable for line, best suitable appropriate Assembly Line. As the conveyor belt is mesh, so it is most appropriate for drying block, granular, strip, sheet materials (such as: Coal Briquettes, Food, Flour, Vegetables).
It can be used to bake and dry the Food, Flour and Vegetables. The Food Belt Dryer can bake all kinds of the inflating food, pet food, TVP/TSP food, peanut, nut, chew nut and so on.
Features of Food Belt Dryer :
1.Single Layer Belt Dryer and Multi-layer Belt Dryer both can be manufactured, layers of Food Belt Dryer depends on capacity you need.
2.The Food Belt Dryer can be used separately,also used to support other other equipments in a line.
3.Heating methods of Food Belt Dryer :Electric heating; Steam heating; Hot air heating.
Outstanding Advantages of Food Belt Dryer :
1. The Food Belt Dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.Belt adopts the stainless steel,it is very suitable for food industry.
3. Running speed of belt in Electric Heating Food Belt Dryer can be controlled (frequency)
4. Temperature of Food Belt Dryer can be controlled willfully and designed according to the need.
5. Stainless steel insulation board,there are insulation cotton in the middle
6. Flexible detachable metal drawers to catch some scrap in the bottom of Food Belt Dryer .

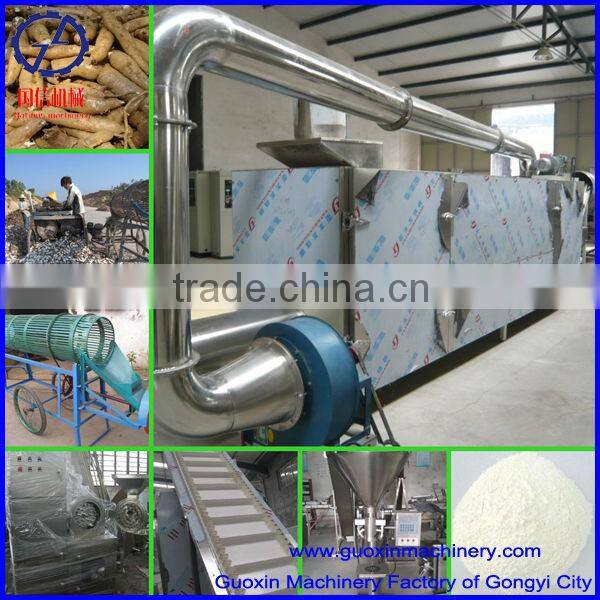

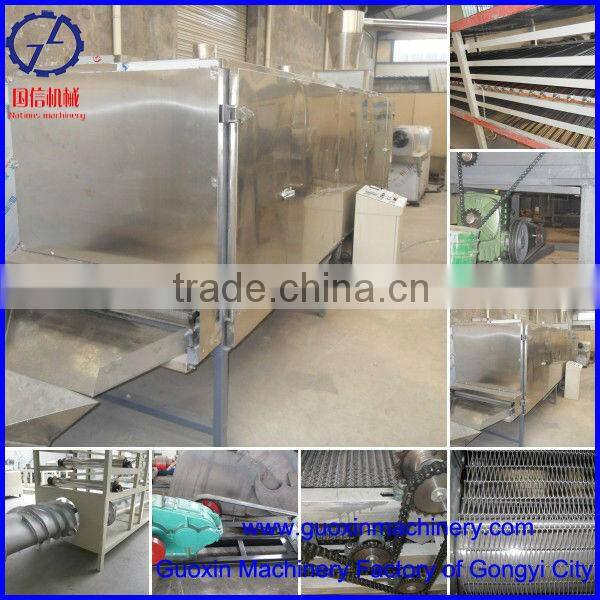

Hot air heating Food Belt Dryer as below:
Working principle of Food Belt Dryer :
The materials cassava evenly tile in the mesh belt, mesh belt using 12-60 mesh steel belt, the materials move back and forth in the Cassava Drying Machine dragged by transmission device. The hot air produced by Electric heating tube(Burner, Heating stove etc. ) go through Food Belt Dryer , make the moisture of wet material evaporate, and discharge from the wet hole, so as to achieve the purpose of drying.
Hot air heating Food Belt Dryer Flowchart

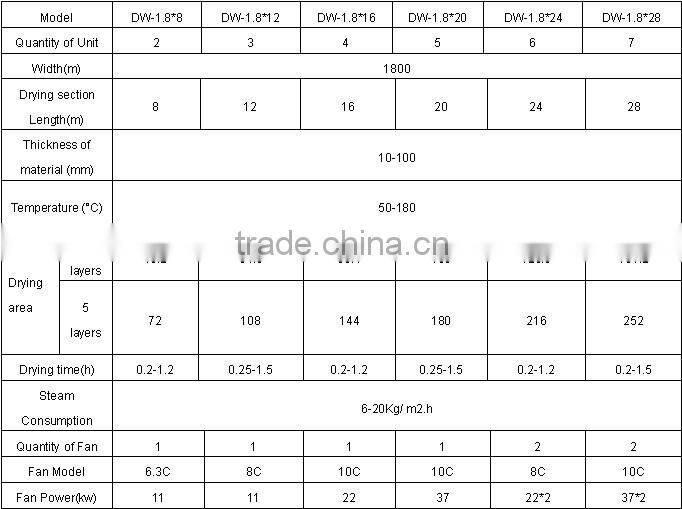

Technical Data of Food Belt Dryer :

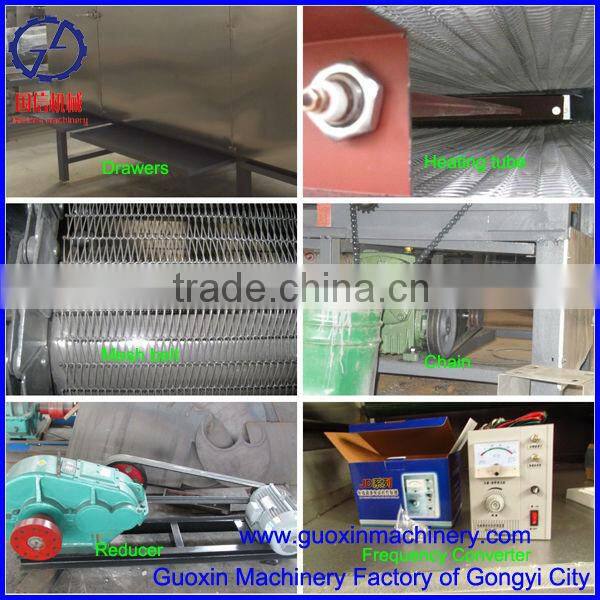

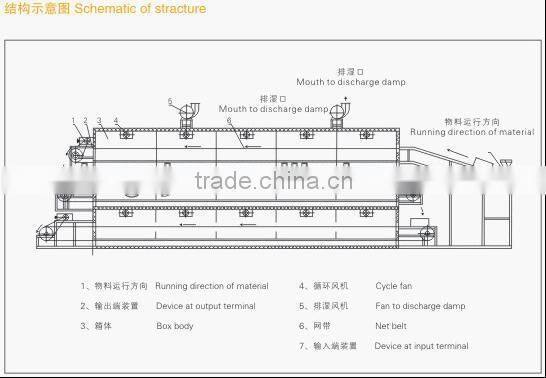

The structure of Food Belt Dryer :
1.Feed port, 2.Distributor, 3.Main body, 4.Cotton Insulation, 5.Mesh belt,
6.Reducer, 7.Chain Wheel, 8.Roller, 9.Discharge port 10.Dregs drawers,
11.Frequency modulation motor, 12.Transmission bracket, 13.heating source
14.Induced draft fan
Transportation of Food Belt Dryer :
Some Clients from World to buy our Food Belt Dryer :
Any questions about Food Belt Dryer, please contact me, send inquiry to me!
