Advanced Technology Air Flash Dryer with OEM Service

Specifications

1.Air Flash Dryer
2.Reasonable Structure
3.Low Power Consumption
4.ISO Approved and Best Offer



Brief Description of Air Flash Dryer:



Air Flash Dryer is such a drying system, it dries the raw meterials into a standard requirement, so that it can meet the customers' needs. These particular materials are including rice husk, sawdust and wood chip etc.



Structure of Air Flash Dryer:

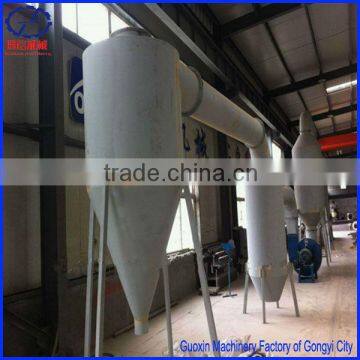

Electrical cabinets+ Blash blower+Heater+Screw feeder+Drying pipe+Air seal machinery+Cyclone+Dust collector+Draft fan





Working Principle of Air Flash Dryer:



1) First, the wet materials are put into the hopper. Then the fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhausted blower (draft fan) quickly.

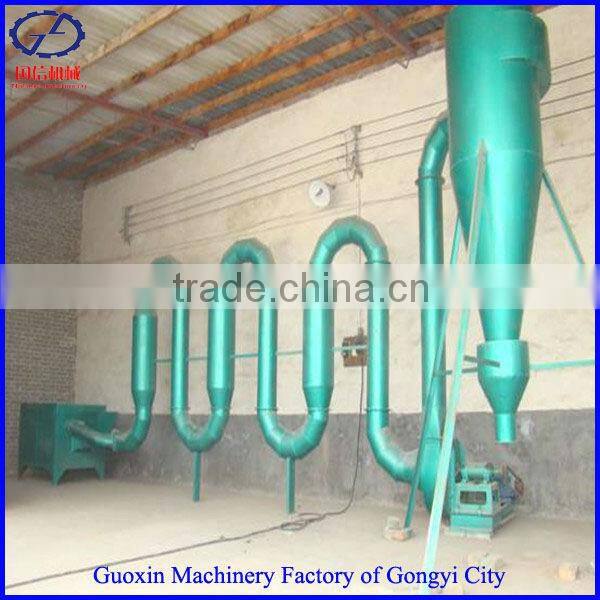

2) The hot air is going though the curving pipes, thus wet materials can get fully dried during the drying process.



3) After the wet materials get dried, the dried materials are expelled out by the exhausted blower.



Technical Data of Air Flash Dryer:



Model	GX-I	GX-II	GX-III	GX-IV
Productivity (kg/h)	300	500	600	900
Diameter of the materials	≤ 5 mm	≤ 5 mm	≤ 5 mm	≤ 5 mm
Motor power	4 kw	4 kw	5.5 kw	7.5 kw
Temperature of the heating air	260°C~360°C	260°C~360°C	260°C~360°C	260°C~360°C





Advantages of Air Flash Dryer:



1. Air Flash Dryer can reduce the moisture of the materials to 8-12% one time with the advantages of lower consumption and high efficiency.



2. The selection of Air Flash Dryer models depend on the original moisture content of raw materials.
