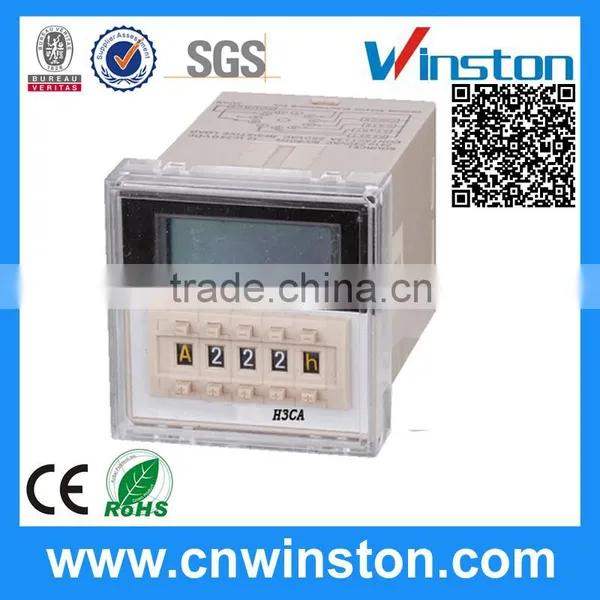

H3CA LCD Display Output Digital Auto Solid State Time Relay With CE

H3CA LCD Display Output Digital Auto Solid State Time Relay With CE thumbnail-1
H3CA LCD Display Output Digital Auto Solid State Time Relay With CE photo-1
US$ 6.5 - 8.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Winston
Model Number:
H3CA
Contact Supplier Request Quote Chat Now
Yueqing Winston Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Winston
Model Number H3CA
Theory Time Relay
Usage Auto
Size Miniature
Protect Feature Sealed
Contact Load Low Power



characteristics

1)Product Model: H3CA

2)Working power: DC24V. AC 220V.AC380V

3)Delay range: 0.1s~99.9s  1s~999s ,0.1m~99.9m ,1m~999m

0.1h~99.9h,1h~999h , 10h~9990h

4)Repeat error:≤1%

5)Working Mode: power- on delay

6)Display Mode: LCD

7)Contact No.: 2 group delay conversion

8)Contact capacity: 3A  AC250V (resistive)

9)Mechanical life:1×106 times

10)Electrical life: 1×105 times

11)Installation Mode: Panel type  Device relays

Technique parameter



Classification Multi Range Timer Multi Range Timer Multi Range Timer
Specification Model H3CR-A8 H3CA-A H3CA-8
Dimension 48H × 48W × 81.6D 48H × 48W × 81.6D 48H × 48W × 81.6D
Mounting & Socket Surface(-N) PS-08 PF083A PF113A(E) PS-08 PF083A
Flush(-Y) US-08 P3G-08 US-11 US-08 P3G-08
Full Timing Range 0.5SEC~300HRS 0.1SEC~9990HRS 0.1SEC~9990HRS
Rated Voltage (V) AC: 24,110~240(50/60Hz) AC: 24~240(50/60Hz) AC: 24,110, 220 (50/60Hz)
DC: 12,24~240(50/60Hz) DC: 24~240(50/60Hz) DC: 24,48(50/60Hz)
Indicator Operating Time Operating Flicker LCD LCD
O/P Contact Model H3CR-A8 H3CA-A H3CA-8
Time Limit 1C   5A
Time Limit 2C 5A(AC250)   5A
Instantaneous 1C
Life Mechanical 107 Times 107 Times 107 Times
Electrical 105 Times 105 Times 105 Times
Accuracy Repeat Error ±2% max ±2% max ±2% max
Setting Error ±5% max ±5% max ±5% max
Voltage Error ±5% max ±5% max ±5% max
Temp Error ±2% max ±2% max ±2% max
Reset Time 0.5 sec max 0.5 sec max 0.5 sec max
Consumed Power 100~240VAC:10VA 12VDC,24~240VDC:1.5W 100~240VAC:10VA 12VDC,24~240VDC:1.5W 100~240VAC:10VA 12VDC,24~240VDC:1.5W
Ambient temperature -10oC~+55oC -10oC~+55oC -10oC~+55oC
Ambient Huminity 35~85% RH 35~85% RH 35~85% RH
Weight 100g 100g 100g
Overall dimensions



H3CA LCD Display Output Digital Auto Solid State Time Relay with CEH3CA LCD Display Output Digital Auto Solid State Time Relay with CE

Packaging & Shipping

 What is the packing for our product?



What is the delivery way?



(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

 What the Certifications do we have obtained?



What is the payment?





What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)



2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view





Our team







FAQ

What is the MOQ of our Time Relays?



MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.



How to Visit and contact us?





Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed.



Besides, we are more pleased to help you to book a flight or hotel to save your time.
