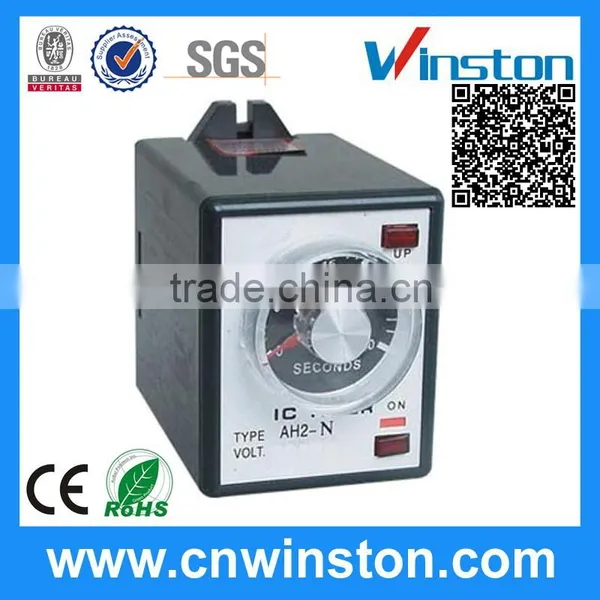

AH2-N Surface Mounted type Electric Adjustable Sequencer Time Relay with CE

FOB Price

USD $4.5 - $6.5 / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Ningbo/Shanghai
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

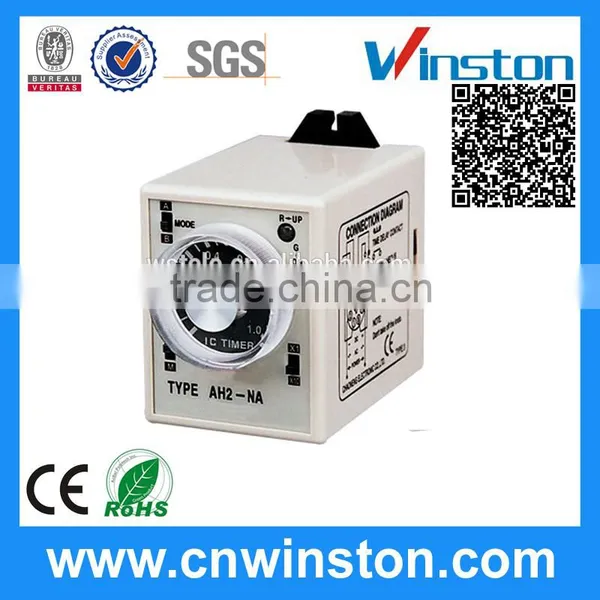

Place of Origin:	Zhejiang, China	Brand Name:	Winston	Model Number:	AH2-N,AH2-NA
Theory:	Time Relay	Usage:	Auto	Size:	Miniature
Protect Feature:	Sealed	Contact Load:	Low Power

Product Description

characteristics

Surface mounted
Dimensions(mm)61HX49WX70D
Socket type:PF083A(E) PS-08
AC/DC 24-240V
Different timing range on requirement

Technique parameter

Specification Model			AH2-N		AH2-Y
Dimension			61H × 49W × 70D		88H × 58W × 68D
Mounting & Socket		Surface(-N)	PF083A PS-08		PF083A
		Flush(-Y)	P2CF-08		US-08 P3G-08
Full Timing Range			SEC: 1,3,6,12,30,60
			MIN: 3,6,12,30,60
			HR: 3,6,12,24
Rated Voltage (V)			AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			ON-UP Two Indicator Lamp
O/P Contact	Model		AH2-N1/ AH2-Y1	AH2-N2/ AH2-Y2		AH2-N/ AH2-Y
	Time Limit 1C		5A			5A
	Time Limit 2C			5A
	Instantaneous 1C					5A
Life	Mechanical		5 × 106 Times
	Electrical		105 Times
Accuracy	Repeat Error		±1% max
	Setting Error		±10% max
	Voltage Error		±1% max
	Temp Error		±2% max
Reset Time			0.1 sec max
Consumed Power			3VA
Ambient temperature			-10oC~+55oC
Ambient Huminity			48~85% RH
Weight			220g

Overall dimensions

Packaging & Shipping

What is the packing for our product?

What is the delivery way?

(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

What the Certifications do we have obtained?

What is the payment?

What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)

2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view

Our team

FAQ

What is the MOQ of our Time Relays?

MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.

How to Visit and contact us?

Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed.

Besides, we are more pleased to help you to book a flight or hotel to save your time.
