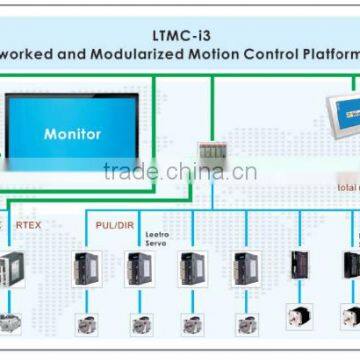

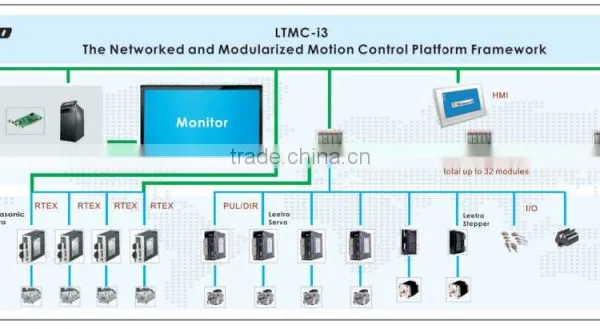

LTMC-i3 is a general-purpose motion control platform that segments the applications into many modules enhanced by the industry field bus. Each module has the universal interface and mechanical structure those enable a user to set up a motion control system in a less period of time. The saved time will be spent to make the most concerned workmanship coming true.
Applications (including but not limit to)
l Li-Ion Production Line
l Semiconductor Equipment
l Automobile Detection Equipment
l Auto Robot
l Pharmaceutical Production
l 6-D Movie Theater
l Glass Production
l Spinning and Weaving Equipment
Features
l Panasonic RTEX, Pulse/Axis and Analog/Axis
l Compatible with Panasonic networked servo
l Up to 32-axis
l Digital In/out, Analog In/Out
l Embedded PLC

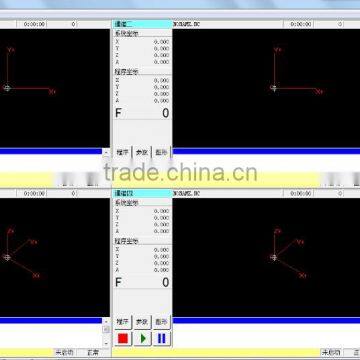

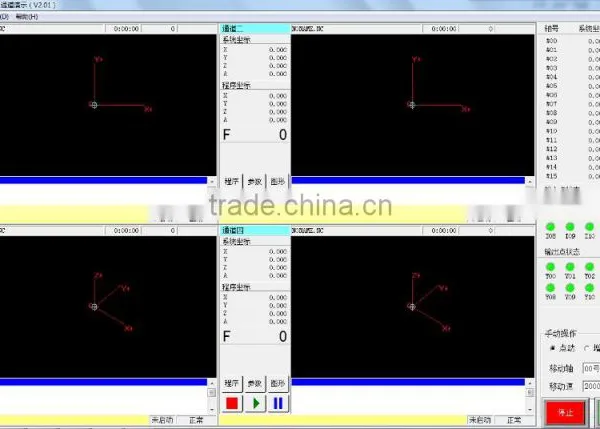

l Multi-task, Multi-channel (8-CH)
l Communication cycle: 1ms
l Transit distance up to 100 metric meters
l Transit speed 100Mb/s
Module Specifications
Work Temp. |
0~55°C |
Storage Temp. |
-20~75°C |
Humidity |
Under 90% RH |
Vibration/Shock |
GBT 2423.10-2008/GBT 2423.5-1995 |
EMC/EFT |
GBT 26220-2010/GBT 17626.2-2006/GBT 17626.4-2008/GBT 17626.5-2008/GBT 17626.29-2006 |
|
Installation (except MPC8632 and MC6001) |
35mm Guide (EN 50022) |
MPC8632
Motion Control |
8-CH Max Axis: 32 Interpolation Axis: 32 Linear Interpolation: 32 Arc Interpolation: any 2 Each Axis of 32: Close-loop/Open-loop |
IO |
Logic Input: 320 Logic Output: 320 PLC cycle: 1ms |
Speed |
100MB/s |
Media |
Ethernet Class5, 5e or above STP |
Max. Distance |
100 meters |
Max. Node |
32 |
Comm. Cycle |
1ms |
Bus Type |
RTEX |
Power |
PCI, DV5V, max 170mA |
LAN |
RX: Input TX: Output |
Cable Standard |
T568B, 8-wire |
MC6001

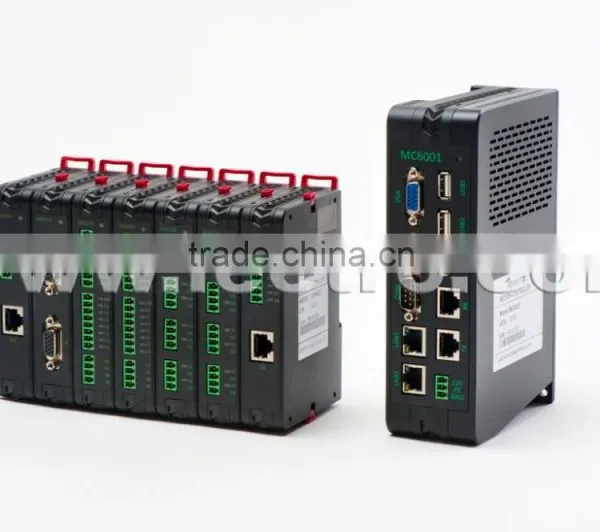

Processor Unit |
Intel X86 Dual-core 1.8G Memory: 1GB Hard Disk Drive: Industry Class CF Card 8GB (extend up to 64GB) Display: VGA Serial: 1*RS232/RS485 USB: 4*2.0 LAN: 1*100/1000M OS: Windows XPE |
Motion Control |
8-CH Max Axis: 32 Interpolation Axis: 32 Linear Interpolation: 32 Arc Interpolation: any 2 Single Axis Close-loop |
IO |
Logic Input: 320 Logic Output: 320 PLC cycle: 1ms |
Speed |
100MB/s |
Media |
Ethernet Class5, 5e or above STP |
Max. Distance |
100 meters |
Max. Node |
32 |
Comm. Cycle |
1ms |
Bus Type |
RTEX |
Power |
PCI, DV5V, max 170mA |
LAN |
RX: Input TX: Output |
Cable Standard |
T568B, 8-wire |
AX0612
Motor Control |
2-axis, Differential Pulse, Max Freq 4MHz Encoder Channel: A-B Differential, 16MHz Servo ALM: On, DC0V~DC5V Off, DC16V~DC24V (±10%) Pulse Output: Pul/Dir, CW+CCW Z-pulse Detection Signal Cable: Max 8-meter (UL2464 24AWG) |
Power |
DC24V (max 100mA); DC5V (max 100mA) |
Internal Current |
Max 100mA (DC24V) |
DI6016
Power |
DC24V±10% |
Control Node |
16 |
ON Node |
16 (simultaneous) |
Input Resistance |
4.7kΩ |
Input Current |
4.8mA (DC0V) |
ON Voltage |
DC0V~DC5V |
OFF Voltage |
DC16V~DC24V (±10%) |
ON Response |
Less than 2.0ms |
OFF Response |
Less than 2.0ms |
Consumption |
Max 100mA (DC24V) |
DO6016
Power |
DC24V±10% |
Control Node |
16 |
ON Node |
16 (simultaneous) |
Control Loaded Voltage |
DC12V~DC24V (±10%) |
Rated Loaded Current |
100mA, Over Current Protection |
Leaked Current |
Max 0.001mA |
ON Response |
5us |
OFF Response |
5us |
Consumption |
Max 100mA (DC24V) |
AI6324
Power |
DC24V±10% |
Input Channel |
4, Single-ended |
Input Signal Range |
-10V~+10V |
Max Input Votage |
±12V |
Input Resistance |
≥10MΩ |
A/D Switch Resolution |
16-bit |
A/D Switch Time |
≤2us |
Max Acquisition Rate |
400KSPS |
Channel Switch Time |
Simultaneous |
Total Unadjusted Error |
Approx. ≤0.2%FSR |
A/D Start Mode |
Program/External Trigger |
A/D Work Mode |
Program Query/Break Request |
Isolation Mode |
Optical/Capacitive |
Isolation Voltage |
≥1000V |
Consumption |
≤3W |
AO6324
Power |
DC24V±10% |
Output Channel |
4 |
Output Signal Range |
-10V~+10V |
Output Resistance |
<0.5Ω |
Output Load |
>5KΩ |
D/A Switch Resolution |
16-bit |
D/A Switch Time |
≤20us (each channel) |
Total Unadjusted Error |
≤0.5%FSR (approx.) |
Isolation Mode |
Optical/Capacitive |
Isolation Voltage |
≥1000V |
Consumption |
≤3W |
CN6001
Power |
D24V±10%, rated current over 3A |
Speed |
100Mb/s |
Media |
Ethernet Class5, 5e or above STP |
Max. Distance |
100 meters |
Insulated Resistance |
Over 1MΩ (500VDC) |
Voltage |
30s, 500VDC, leaked current max 10mA |
Consumption |
Max 100mA (DC24V) |
CN6002
Speed |
100Mb/s |
Media |
Ethernet Class5, 5e or above STP |
Max. Distance |
100 meters |
Control Node |
8 |
ON Node |
8 (simultaneous) |
Input Resistance |
4.7kΩ |
Input Current |
4.8mA (DC0V)) |
OFF Voltage Range |
DC16V~DC24V (±10%) |
ON Response Time |
Less than 2.0ms |
OFF Response Time |
Less than 2.0ms |
Consumption |
Less than 100mA (DC24V) |
