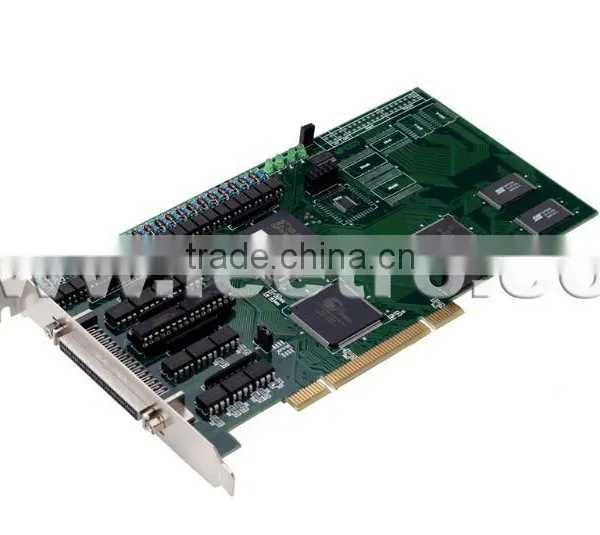

Genuine Laser Control Board MPC03-LH or LV

Genuine Laser Control Board MPC03-LH or LV thumbnail-1
Genuine Laser Control Board MPC03-LH or LV photo-1
US$ 128 - 220 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
Used
Year:
2008
Application:
Other, laser
Contact Supplier Request Quote Chat Now
Leetro Automation Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition Used
Year 2008
Application Other, laser
Place of Origin Sichuan, China
Brand Name Leetro
Model Number MPC03
Dimension(L*W*H) 215*128*22mm
Weight 0.3kg
Certification CE,ISO9001
Product Description



LaserCut software developed by Leetro Automation Co., Ltd. Can be applied to laser engraving and cutting system processing large-scale images based on MPC03-LH

Main features of LaserCut5.0/5.1are as follows:
Seamless connection with CorelDraw and AutoCAD makes the operation much easier.
Supports data formats such as AI, BMP, PLT, DXF, DST (Tajima Software).
After graphics & image data being called in, the system will carry out simple makeup and edit (such as zooming, rotating, reproducing and so on)
The software can hierarchically output data and easily set the output power, output speed and output mode (engrave, cut, and so on) and automatically save the defined parameters of every layer.
The software can engrave the image, scribe, cut and engrave the vector diagram and set engraving precision.
The software supports array output and can automatically distribute the array to the entire workbench. The software can also display output effect through analog output. The origin location can be defined at random to facilitate processing.
Pause and Continue are available during output and all output control operations can be directly connected to the operational control panel of devices for easy operation.
The software provides frame-tracing function during output so as to easily find the discharge location.
Engraving speed can reach 1500mm/s, curve cutting speed can reach 500mm/s and engraving precision can reach 0.1mm.
360degree slope engraving. The slope can be freely set and there is no limitation of speed (subject to the laser processing depth).
High processing speed of large data & graphics. Data of 15M less can be processed for an instant.
Constant laser processing strength during high-speed cutting ensures consistent processing depth.
Optimized Cutting path. Customers are provided with various path optimization methods.
Derivate lines can be introduced when cutting to ensure the smooth and flat cut seaming.
Unique breakpoint processing function ensures that no rejected product will be produced even when power is suddenly cut.
Outstanding features compared with laser engraving like products:

Advanced Position Compare Output Iron out the deviation problem in speedy engraving. The engraving speed is 90m/min, leading the like products.
Distinct Look-Ahead Algorithm And Track-Fit Algorithm Highly enhance the operating efficiency. Speed for cutting circles reaches 30 m/min, leading the laser processing industry.
Advanced Synchronous Tracking Control Ensure the synchronous changes of the laser power and the speed of laser head's moving.
Advanced PWM (Pulse-Width Modulated) Control Implement 360degree slope engraving easily, increase the real-time capability in adjusting the laser power.
No distortion in speedy cutting roundlet (less than 3mm diameter)



The Break-out Board Ports Definition is as below:

No. Name Definition   No. Name Definition
1     2
3     4
5     6
7 EA2+ 5V Power Supply + 8 EA2- Pause
9 EB2+ 5V Power Supply + 10 EB2- Homing
11 EZ2+ 5V Power Supply + 12 EZ2- Instant Stop
13     14 GND5 Power Supply GND
15 LASER Fire Laser 16
17 FRQ/PWM Laser Power Adjust 18
19 PUL2- Pulse 2- 20 PUL2+ Pulse 2+
21 DIR2- Direction 2- 22 DIR2+ Direction 2+
23     24 DCV5 +5V Power Supply
25     26 ORG2 Original 2
27     28 EL2+ Positive Limit 2
29     30 EL2- Negtive Limit 2
31     32 SD2+ Positive Deceleration 2
33     34 SD2- Negative Deceleration 2
35 EA3+ 5V Power Supply +   36 EA3- Down
37 EB3+ 5V Power Supply + 38 EB3- Right
39 EZ3+ 5V Power Supply + 40 EZ3- Up
41 EA4+ 5V Power Supply + 42 EA4- Framing
43 EB4+ 5V Power Supply + 44 EB4- Start/Continue
45 EZ4+ 5V Power Supply + 46 EZ4- Left
47     48
49 PUL3- Pulse 3- 50 PUL3+ Pulse 3+
51 DIR3- Direction 3- 52 DIR3+ Direction 3+
53 PUL4- Pulse 4- 54 PUL4+ Pulse 4+
55 DIR4- Direction 4- 56 DIR4+ Direction 4+
57 DCV24 +24V Power Supply 58 ALM External Alarming Input
59 ORG3 Original 3 60 ORG4 Original 4
61 EL3+ Positive Limit 3 62 EL4+ Positive Limit 4
63 EL3- Negtive Limit 3 64 EL4- Negative Limit 4
65 SD3+ Positive Deceleration 3 66 SD4+ Positive Deceleration 4
67 SD3- Negtive Deceleration 3 68 SD4- Negtive Deceleration 4
