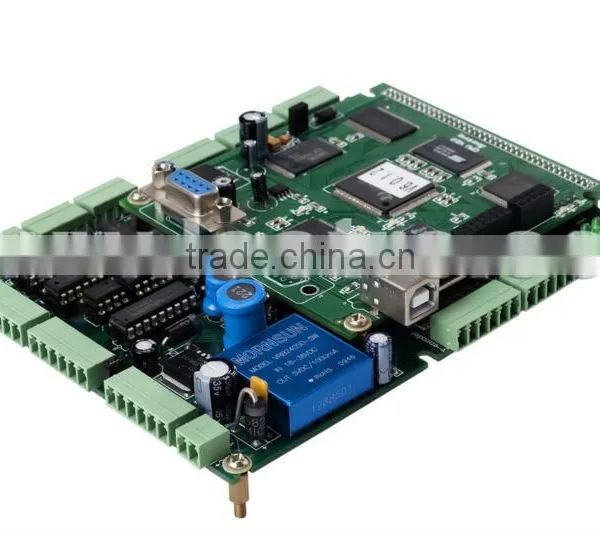

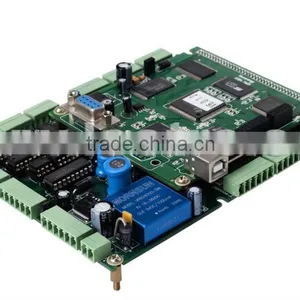

MPC6575 is designed for the close-loop motion control system which is in the laser machine only. Based on DSP and FPGA technology, the advanced velocity look-ahead and trajectory blending algorithm ensure the velocity invariableness and transition smoothness between any two-trajectory segments during the high speed X-Y continuous trajectory motion. And therefore the perfect smoothness and precision of the machining can be easily achieved.
Applications
CO2 or RF tube compatible laser machine exclusively, close-loop motion control system
Features
l Engraving speed up to 4000mm/s
l 2-3 axes linear interpolation and 2-axis circular interpolation
l High speed multi-axis continuous contouring
l Velocity look-ahead and trajectory blending
l Position comparison and trigger output
l Laser control is synchronized with laser head motion
l Advanced PWM laser power control
l Flying-optics compensation
l Individual laser power control for dual-head system
l Master/slave USB interface
l Embedded 128MB memory
l Advanced PID algorithm to minimize cutting inaccuracy
l Easy interface to any AC or DC motors with analogue command input
l All digital inputs and outputs are 2500Vrms isolated
Laser Control Functionality
Motion Control
High precision interpolation, circular interpolation resolution under 0.5 pulse
Engraving control resolution is in ONE pulse on the frequency of less than 2MHz
For CO2 tube
Laser ON, TTL compatible
Laser power control: PWM, frequency or analog voltage (user select)
For RF tube
Laser ON, TTL compatible
Q pulse signal, programmable duty and frequency
Software Environment
Windows 2000/XP/Vista/7, supports 32 bit (X86) and 64 bit (AMD 64) Windows
Bundled with LaserCut application software
Working Environment
Temperature: 0-60°C
Humidity: 5-90%, non condensing
Power
24VDC, 2A
DHL, TNT, FedEx air express
12-month product warranty
