Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > PCH Series Ring Hammer Crusher

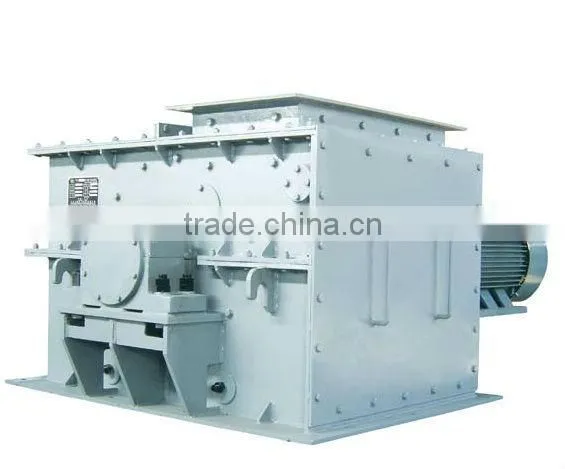

PCH Series Ring Hammer Crusher

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

Used

Year:

2008

Type:

Roller Crusher

Contact Supplier Request Quote Chat Now

Jiangsu Pengfei Group Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition Used

Year 2008

Type Roller Crusher

Motor Type AC Motor

Power(W) 110 KW

Capacity(t/h) 120

Place of Origin Jiangsu, China

Brand Name PCH

Model Number PC

Warranty 1

Specifications

Ring Hammer Crusher is a kind of impact rotor type crusher with a ring hammer.

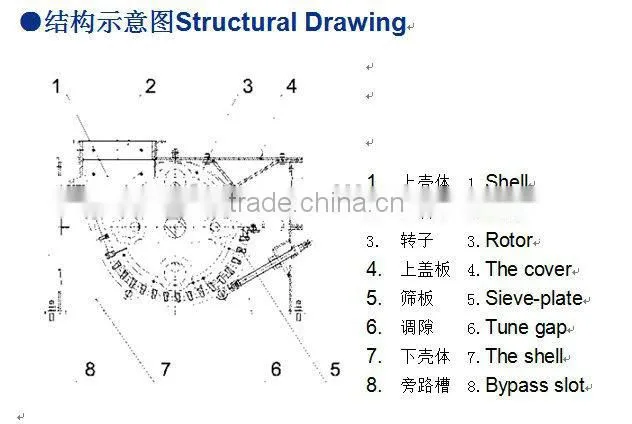

Ring Hammer Crusher is a kind of impact rotor type crusher with a ring hammer.Ring Hammer can not only switch along with rotor rotation, but also rotate around the hammer shaft pin. When material enters into the crusher, it can be crushed by the ring hammer which is revolved by the high-speed motor, at the same time material obtained the kinetic energy and rushed at the impact plate receiving the second crushing process, then falls on the screen sieve and be cut, extruded ring hammer. At last the materials that come up to the standard can be discharged by the machine. Uncrushable material enters into the metal collector and should be eliminated regularly.

Through replacement of sieve plate, discharge size of materials can be adjusted. Gap between rotor and sieve plate can be adjusted by the mechanism.

Main technical parameters

Type		PCH0604		PCH0606		PCH0808	PCH1010
Rotor	Diameter(mm)	645		645		800	1000
	Length(mm)	400		630		840	910
Capacity t/h		30		45		80	120
Feed size mm		≤120		≤150		≤200	≤250
Outlet size mm		≤3		≤3-10		≤5-20	≤5-25
Motor Selection	Model	Y180L-6	Y200L2-6	Y200L2-6	Y250M-6	Y280M-6	Y315M1-8	Y315M3-8
	Power kw	15	22	22	37	55	75	110
	Speed R/min	970	970	970	980	980	740	740
Dimension (L × W × H)mm		2002x1320x980	2028x1320x980	2397x1320x980	2522x1320x980	1313x1760x1230	3190x2040x1520	3190x2040x1520
kg Weight		2103	2185	2565	2723	3692	5150	5280
