1, Our Industry Advantage:
(1) PP/PE/PVC/PC/AS/PET/PET-G;
(2) Products of volume: 30ml-1000L;
(3) 1 year warranty;
(4) 20 years experience
(5) After-sales Service Provided: Engineers available to service machinery overseas
(6) All machine for Hydraulic system
(7) Many patent certificates
(8) More than 1000pcs different samples
(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.
(6) L/D: 23:1; 25:1; 28:1, 30:1
(7) Sales to more than 30 countries
(8) From 1-3 layers

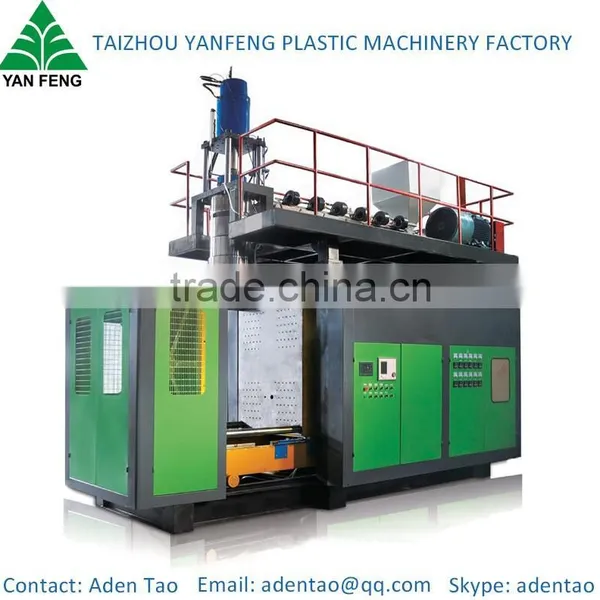

5 gallon pc water bottle extrusion blow molding machine in taizhou
2, YF-80PC 5 gallon pc water bottle extrusion blow molding machine-Hydraulic system-For Max.30L
5 gallon pc water bottle
3, Main characteristic
(1) Single process with single Die-head
(2) Max. 30L
(3) Hydraulic system
(4) Diameter of products 1100mm
(5) 220-380V; 3 phase; 50-60HZ (Custom Made)
(6) 80mm Diameter of screw
(7) 1 Year warranty
4, Technical specification
5 gallon pc water bottle
Model |
YF-80PC |
||
Suitable Materials |
PC… |
||
Real Output |
Diameter of products |
1100mm |
|
PC 5 gallon barrel weight |
Suitable use as standard |
600-850g(adjusted by controller) |
|
Product Volume |
1cavity |
5gallon |
|
Extrusion Unit |
Screw Diameter |
80mm |
|
Screw L/D Ratio |
25:1 L/D |
||
Screw Speed |
40 r/min |
||
Plasticizing Capacity |
115kg/h |
||
Number of Heating Zone on Screw |
4 |
||
Die Head Unit |
Amount of die head |
1 |
|
Volume of Storage Jar |
4.2 L |
||
PC storage capacity |
2Kg |
||
Die-pin Diameter |
80mm |
||
Number of Heating Zone |
4 |
||
Clamping Unit |
Work Station Amount |
1 |
|
Mold Board Amount |
4 |
||
Mold Board Size |
700*700*66mm(L*W*T) |
||
Clamping Force |
180KN |
||
Mould Unit |
Cavity amount |
1 cavity |
|
Max Mold Size |
750*500*500mm(L*W*T) |
||
Lifter Unit |
Turbine reducer lifter |
4 pieces |
|
Power Unit |
Electrical Source |
220/380V,3phase 50/60Hz |
|
Screw Motor Power |
30KW |
||
Clamping hydraulic motor |
7.5 KW |
||
Servo hydraulic motor |
4 KW |
||
Screw heating power |
10 KW |
||
Die head heating power |
5 KW |
||
Hopper dryer power |
4.5 KW |
||
Fan power(4pcs) |
0.12x4=0.48kw |
||
Total Power |
58 KW |
||
Fact consumption power |
20kw/h(tested) |
||
Waterhead |
Water pool |
||
Air Supplier Pressure |
0.8 Mpa |
||
Air consumption |
0.5 m3 /min |
||
Size of main machine |
3910X2060X3190mm |
||
Weight of main machine |
9000kg |
||
Auxiliary Equipments |
Low Pressure Air Compressor 1 Set |
0.8m3 /min;1.25MPa;7.5KW;0.32 m3 |
|
Air Tank 1 Set |
0.42 m3 /0.8 Mpa |
||
Oil/water automatic mold temperature controller 1 Set |
Heating power 4.5kw;motor power 0.5kw |
||
These 3 auxiliary equipments is enough, no need other equipments. | |||
5, Parts and Brand for your reference
Item |
Brand |
Country |
Oil Pump |
YUKEN |
Japan |
Control switch |
MITSUBISHI PLC |
Japan |
The contactor |
Schneider Electric |
France |
Reversing valve |
DUPLOMATIC |
Italy |
Proportioning valve |
SMC |
Japan |
oil valve |
YUKEN |
Japan |
Touch screen |
PROFACE |
Japan |
PLC |
MITSUBISHI |
Japan |
Inverter |
INVT |
Taiwan |
Temperature |
OMRON |
Japan |
Valve |
ATOS |
Italy |
6, Main part pictures
YF-80PC Automatic Extrusion Blow Molding Machine is hydraulic:automatic hollow plastic molding machine with accumulator die head and the die head adopts German technology. It is special for producing 5 gallon PC water barrel . The transparence of PC 5 gallon barrel is very good. This machine is widely used in such fields: chemical industry, petroleum, medicine, commodity, cosmetic, foods, lighting, tool, auto, motorcycle, shoemaking, toys and so on. It can produce plastic bucket, chemical drum, auto parts (water box, oil box, air-condition wind pipeline and empennage), tool boxes and bags, dust collector tube, chairs for bus and gymnasium, etc. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit. For its good quality and our perfect service, it’s your best choice to use it.
Characteristic:
1. Control Unit: Japan Mitsubishi PLC programmable controller and Taiwan WEINTEK touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.
2. Hydraulic Unit: It adopts international famous Taiwan COMPASS brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.
3. Extrusion Unit: Hard gear surface decelerator; famous HFinverter inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating .
4. Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel. The volume is 4L and the pc capacity is 2kg.
5. Clamping Unit: Single cylinder double sliding tramroad, fast and balanced; four mould boards, high precision linearity leaders, single hydraulic cylinder double bidirectional open-closing mould.
6. Parison Programmer: 30 points famous PROFITER brand Wall-thickness controller is is equipped.
7. Blow Fitting Unit: Down blowing fitting is equipped.
8. Electrical Components: All of the electrical components are made in Japan and Taiwan.
9. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.
