Our Industry Advantage:
(1) PP/PE/PVC/PC/AS/PET/PET-G;
(2) Products of volume: 30ml-1000L;
(3) 2 years warranty;
(4) 20 years experience
(5) After-sales Service Provided: Engineers available to service machinery overseas
(6) All machine for Hydraulic system
(7) Many patent certificates
(8) More than 1000pcs different samples
(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.
(6) L/D: 23:1; 25:1; 28:1, 30:1
(7) Sales to more than 30 countries
(8) From 1-3 layers

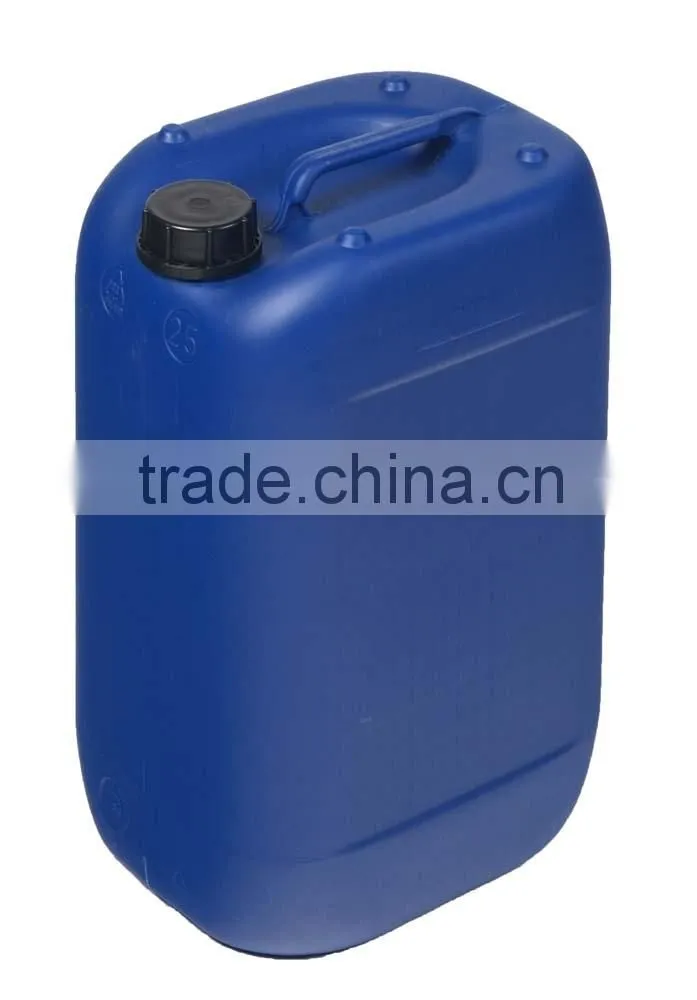

25liter Chemical HDPE Plastic Barrels Plastic Drums Plastic Pails made in china taizhou huangyan
1, Our machines and samples
Extrusion blow moulding machine
PET blow moulding machine
Samples

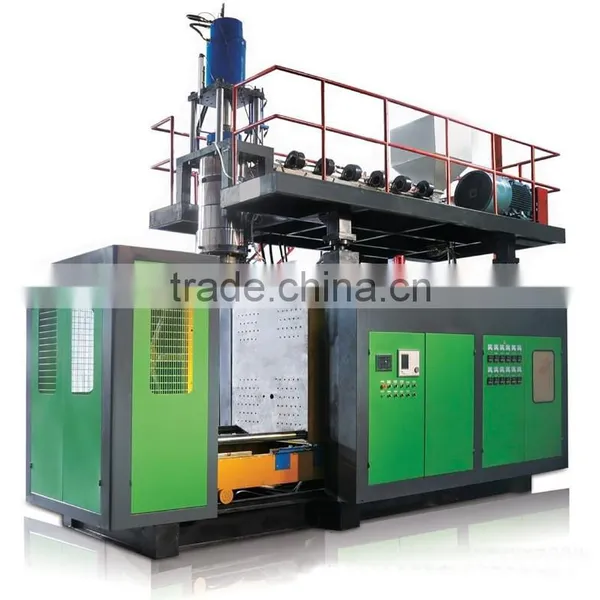

2, YF-90 Blow moulding machine-Hydraulic system For Max. 60L
3, Main characteristic
(1) Single process with single Die-head
(2) Max. 60L
(3) Hydraulic system
(4) 370pcs/h
(5) 220-380V; 3 phase; 50-60HZ (Custom Made)
(6) 90mm Diameter of screw; L/D 25:1
(7) 2 Years warranty
4, Technical specification
Model |
YF- 90 |
||
Suitable Materials |
PE,PP,AS… |
||
Output(Running Free) |
Depend on bottle design |
370 pcs/h |
|
Product Volume |
1cavity |
5L~60L |
|
Die Head Amount |
Piece |
1 |
|
Work Station Amount |
Piece |
1 |
|
Extrusion Unit |
Screw Diameter |
90mm |
|
Screw L/D Ratio |
23:1 L/D |
||
Screw Speed |
80 r/min |
||
Plasticizing Capacity |
120kg/h |
||
Number of Heating Zone on Screw |
4 |
||
Die Head Unit |
Volume of Storage Jar |
6.5L |
|
Max Die-pin Diameter |
300mm |
||
Number of Heating Zone |
4 |
||
Mould Unit |
1 Cavity |
1 cavity |
|
Mold Board Space |
350~1200mm |
||
Clamping Force |
300 KN |
||
Power Unit |
Electrical Source |
220~380V,3phase 50/60Hz |
|
Total Heating Power |
25 Kw |
||
Main Power |
15 Kw |
||
Screw Motor Power |
30 Kw |
||
Water head |
Cooling Tower |
||
Weight |
8000kg |
||
Dimension |
4800*2900*3700mm |
||
Air Supply Pressure |
0.6~0.8 MPa |
||
Auxiliary Equipments |
Low Pressure Air Compressor 1 Set (requisite) |
1.0m3/1.0MPa |
|
crusher machine 1set |
65 |
||
mixing machine 1set |
200kg |
||
5, Parts and Brand for your reference
Item |
Brand |
Country |
Oil Pump |
YUKEN |
Japan |
Control switch |
MITSUBISHI PLC |
Japan |
The contactor |
Schneider Electric |
France |
Reversing valve |
DUPLOMATIC |
Italy |
Proportioning valve |
SMC |
Japan |
oil valve |
YUKEN |
Japan |
Touch screen |
PROFACE |
Japan |
PLC |
MITSUBISHI |
Japan |
Inverter |
INVT |
Taiwan |
Temperature |
OMRON |
Japan |
Valve |
ATOS |
Italy |
6, Main part pictures
Gate of Factory
Sample Room
Meeting Room
Reception Room
