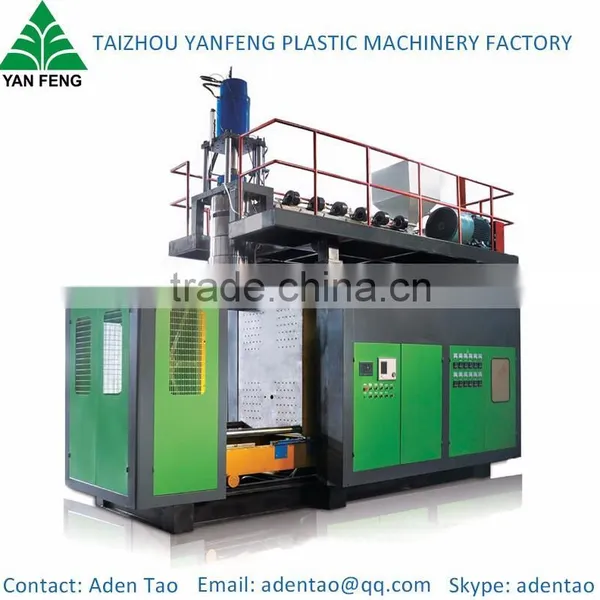

5 Gallon pc Water Bottle Making Machine From Taizhou YF-80PC

5 Gallon pc Water Bottle Making Machine From Taizhou YF-80PC thumbnail-1
5 Gallon pc Water Bottle Making Machine From Taizhou YF-80PC thumbnail-2
5 Gallon pc Water Bottle Making Machine From Taizhou YF-80PC thumbnail-3
5 Gallon pc Water Bottle Making Machine From Taizhou YF-80PC photo-1
5 Gallon pc Water Bottle Making Machine From Taizhou YF-80PC photo-2
5 Gallon pc Water Bottle Making Machine From Taizhou YF-80PC photo-3
US$ 5,000 - 52,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Zhejiang Huangyan Yanfeng Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name YANFENG
Model Number YF-80PC
Voltage 220-380 v; 3 phase; 50-60HZ
Power(W) 20KW
Dimension(L*W*H) 3910X2060X3190mm
Weight 9T
Certification CE;I SO9001; SGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

1, Our Industry Advantage:

(1) PP/PE/PVC/PC/AS/PET/PET-G;

(2) Products of volume: 30ml-1000L;

(3) 1 year warranty;

(4) 20 years experience

(5) After-sales Service Provided: Engineers available to service machinery overseas

(6) All machine for Hydraulic system

(7) Many patent certificates

(8) More than 1000pcs different samples

(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.

(6) L/D: 23:1; 25:1; 28:1, 30:1

(7) Sales to more than 30 countries

(8) From 1-3 layers



5 gallon pc water bottle making machine from taizhou YF-80PC





Product Description



2, YF-80PC 5 gallon pc water bottle making machine-For Maximum 30Liter bottle

5 gallon pc water bottle making machine from taizhou YF-80PC

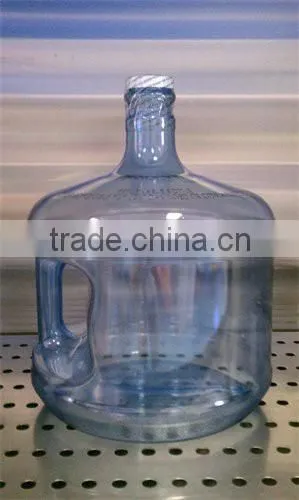

5 gallon pc water bottle







3, Main characteristic



(1)    Single process with single Die-head

(2)    Maximum 30Liter pc water bottle

(3)    Hydraulic system

(4)    Diameter of products 1100mm

(5)    220-380V; 3 phase; 50-60HZ (Custom Made)

(6)    80mm Diameter of screw

(7)    1 Year warranty



4, Technical specification

 5 gallon pc water bottle



Model

YF-80PC

Suitable Materials

PC…

Real Output

Diameter of products

1100mm

PC 5 gallon barrel weight

Suitable use as standard

600-850g(adjusted by controller)

Product Volume

1cavity

5gallon

Extrusion Unit

Screw Diameter

80mm

Screw L/D Ratio

25:1 L/D

Screw Speed

40 r/min

Plasticizing Capacity

115kg/h

Number of Heating Zone on Screw

4

Die Head Unit

Amount of die head

1

Volume of Storage Jar

4.2 L

PC storage capacity

2Kg

Die-pin Diameter

80mm

Number of Heating Zone

4

Clamping Unit

Work Station Amount

1

Mold Board Amount

4

Mold Board Size

700*700*66mm(L*W*T)

Clamping Force

180KN

Mould Unit

Cavity amount

1 cavity

Max Mold Size

750*500*500mm(L*W*T)

Lifter Unit

Turbine reducer lifter

4 pieces

Power Unit

Electrical Source

220/380V,3phase 50/60Hz

Screw Motor Power

30KW

Clamping hydraulic motor

7.5 KW

Servo hydraulic motor

4 KW

Screw heating power

10 KW

Die head heating power

5 KW

Hopper dryer power

4.5 KW

Fan power(4pcs)

0.12x4=0.48kw

Total Power

58 KW

Fact consumption power

20kw/h(tested)

Waterhead

Water pool

Air Supplier Pressure

0.8 Mpa

Air consumption

0.5 m3 /min

Size of main machine

3910X2060X3190mm

Weight of main machine

9000kg

Auxiliary Equipments

Low Pressure Air Compressor  1 Set

0.8m3 /min;1.25MPa;7.5KW;0.32 m3

Air Tank  1 Set

0.42 m3 /0.8 Mpa

Oil/water automatic mold temperature controller 1 Set

Heating power 4.5kw;motor power 0.5kw

These 3 auxiliary equipments is enough, no need other equipments.





5, Parts and Brand for your reference



Item

Brand

Country

Oil Pump

YUKEN

Japan

Control switch

MITSUBISHI PLC

Japan

The contactor

Schneider Electric

France

Reversing valve

DUPLOMATIC

Italy

Proportioning valve

SMC

Japan

oil valve

YUKEN

Japan

Touch screen

PROFACE

Japan

PLC

MITSUBISHI

Japan

Inverter

INVT

Taiwan

Temperature

OMRON

Japan

Valve

ATOS

Italy

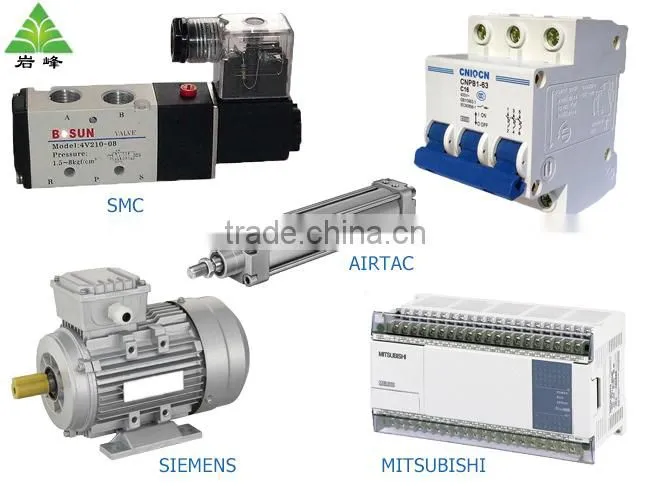

6, Main part pictures







Company Information



5 gallon pc water bottle making machine from taizhou YF-80PC



Sample Room

5 gallon pc water bottle making machine from taizhou YF-80PC



Meeting Room

5 gallon pc water bottle making machine from taizhou YF-80PC

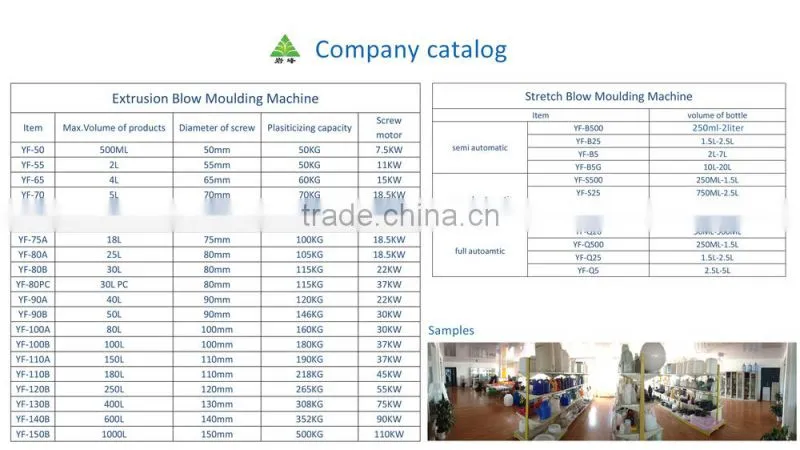

Catalog
