1, Our Industry Advantage:
(1) PP/PE/PVC/PC/AS/PET/PET-G;
(2) Products of volume: 30ml-1000L;
(3) 1 year warranty;
(4) 20 years experience
(5) After-sales Service Provided: Engineers available to service machinery overseas
(6) All machine for Hydraulic system
(7) Many patent certificates
(8) More than 1000pcs different samples
(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.
(6) L/D: 23:1; 25:1; 28:1, 30:1
(7) Sales to more than 30 countries
(8) From 1-3 layers

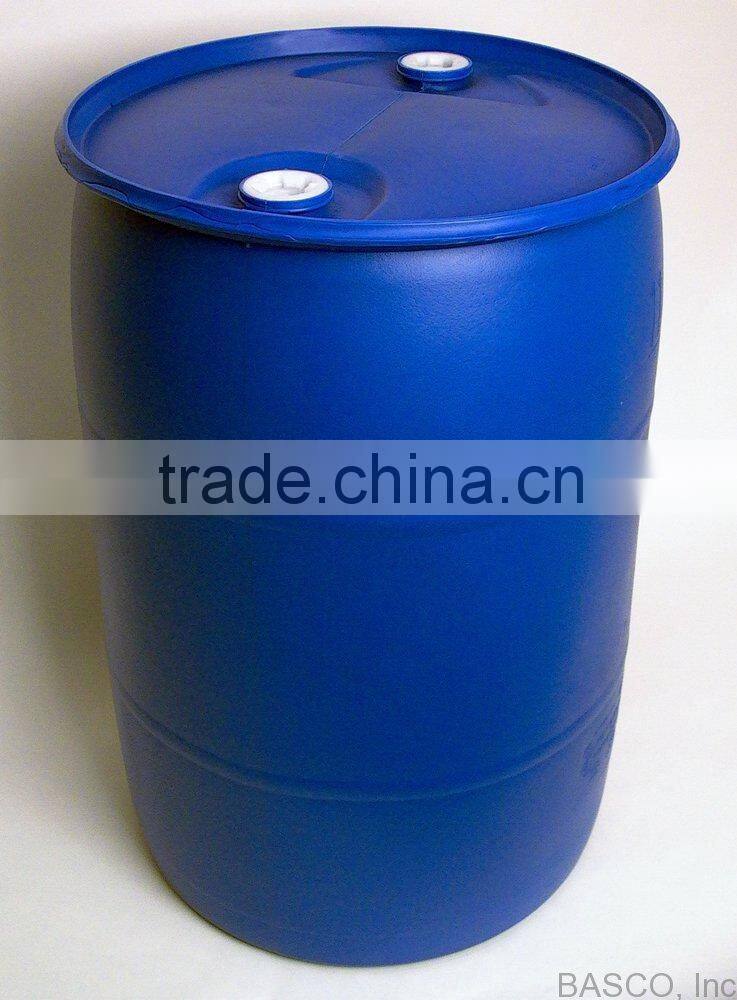

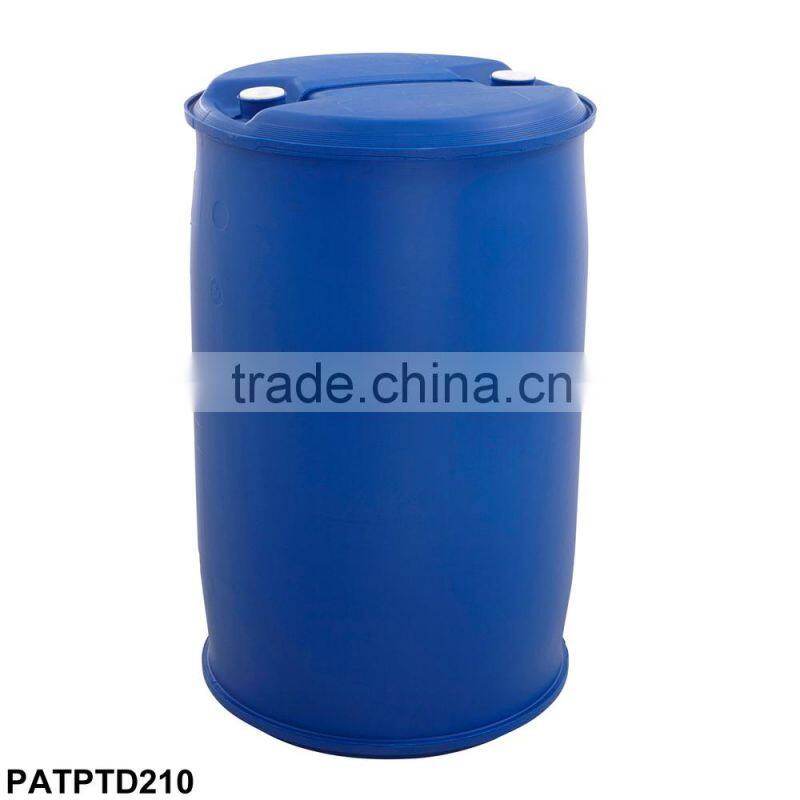

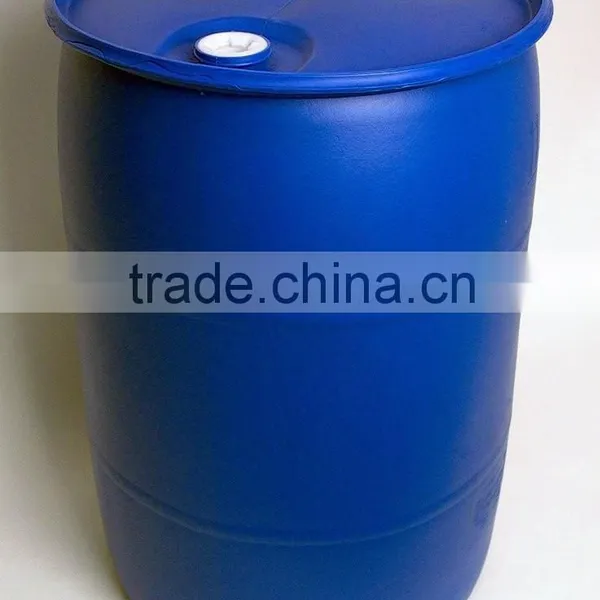

55 gallon plastic drum extrusion blow molding machine price in taizhou from YF-120B
2, YF-120B 55 gallon plastic drum extrusion blow molding machine-Hydraulic system For Max. 250L
3, Main characteristic
(1) Single process with single Die-head
(2) Max. 250L
(3) Hydraulic system
(4) Diameter of product 800mm
(5) 220-380V; 3 phase; 50-60HZ (Custom Made)
(6) 120mm Diameter of screw; L/D 28:1
(7) 1 Year warranty
4, Technical specification
55 gallon plastic drum extrusion blow molding machine
Model |
YF- 120B |
||
Suitable Materials |
PE,PP,PET-G, AS… |
||
Output(Running Free) |
Diameter of product |
800mm |
|
Product Volume |
1cavity |
250L |
|
Die Head Amount |
Piece |
1 |
|
Work Station Amount |
Piece |
1 |
|
Extrusion Unit |
Screw Diameter |
120mm |
|
Screw L/D Ratio |
28:1 L/D |
||
Screw Speed |
80 r/min |
||
Plasticizing Capacity |
265kg/h |
||
Number of Heating Zone on Screw |
4 |
||
Weight |
23T |
||
Dimension |
6500*3200*4500mm |
||
Die Head Unit |
Volume of Storage Jar |
25L |
|
Max Die-pin Diameter |
400mm |
||
Number of Heating Zone |
4 |
||
Mould Unit |
1 Cavity |
1 cavity |
|
Mold Board Space |
450~1200mm |
||
Clamping Force |
700 KN |
||
Power Unit |
Electrical Source |
220~380V,3phase 50/60Hz |
|
Total Heating Power |
25 KW |
||
Main Power |
15 KW |
||
Screw Motor Power |
35 KW |
||
Water head |
Cooling Tower |
||
Weight |
23T |
||
Dimension |
6500*3200*4500mm |
||
Air Supply Pressure |
0.6~0.8 MPa |
||
Auxiliary Equipments |
Low Pressure Air Compressor 1 Set (requisite) |
1.0m3/1.0MPa |
|
crusher machine 1set |
65 |
||
mixing machine 1set |
200kg |
||
5, Parts and Brand for your reference
Item |
Brand |
Country |
Oil Pump |
YUKEN |
Japan |
Control switch |
MITSUBISHI PLC |
Japan |
The contactor |
Schneider Electric |
France |
Reversing valve |
DUPLOMATIC |
Italy |
Proportioning valve |
SMC |
Japan |
oil valve |
YUKEN |
Japan |
Touch screen |
PROFACE |
Japan |
PLC |
MITSUBISHI |
Japan |
Inverter |
INVT |
Taiwan |
Temperature |
OMRON |
Japan |
Valve |
ATOS |
Italy |
6, Main part pictures
Gate of Factory
Sample Room
Meeting Room
Reception Room
Extrusion blow moulding machine
PET blow moulding machine
Samples
