Help CenterHDPE LDPE PE PP Plastic Extrusion Blow Mold Machine
Related Products
-

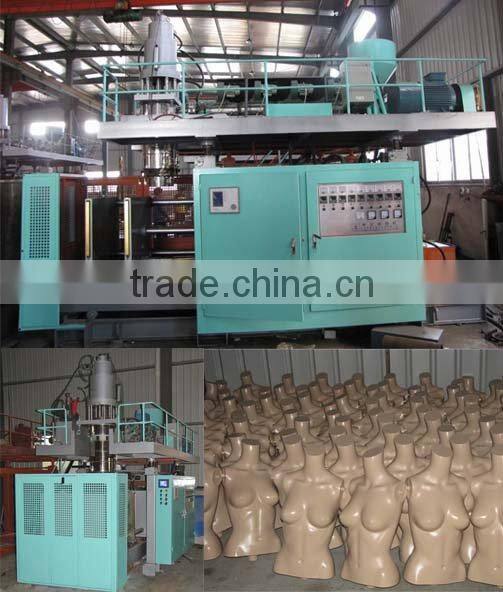

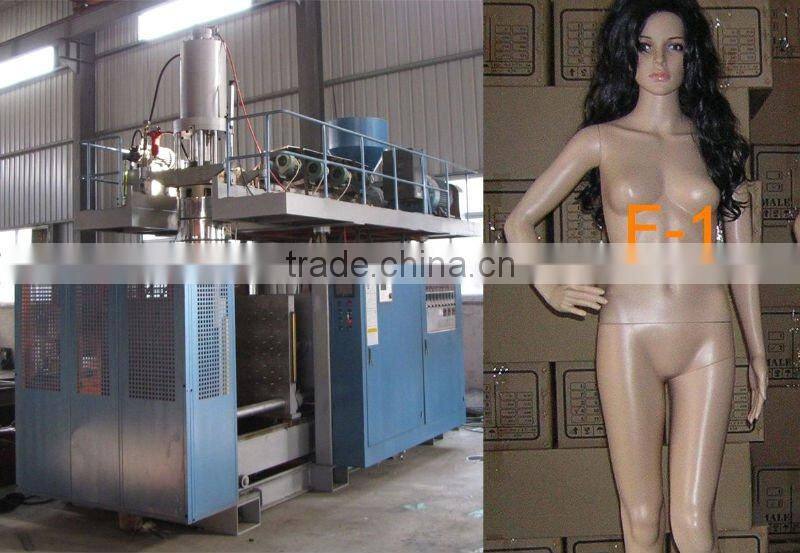

Automatic Extrusion Blow Molding Machine ZK-90B Mannequin Automotive PartNegotiableMOQ: 1 Set -
Blow Molded Plastic Chair and TableNegotiableMOQ: 1 Set
-
EBM Machine for Plascit ToysNegotiableMOQ: 1 Set
-
Hollow Automatic Plastic Blow Molding Machines Floating Pontoon Bus SeatNegotiableMOQ: 1 Set
-
Children Playground Equipment Blow Molding MachineUS$ 25,000 - 660,000MOQ: 1 Set
Specifications
automatic plastic extrusion blow mold machinePLC+touch screen+bilingual
jerrycan, tank,tool case,board,automobile part...
hollow plastic extrusion blow mold machine,
plastic blowing machine,extrusion blow molding machine

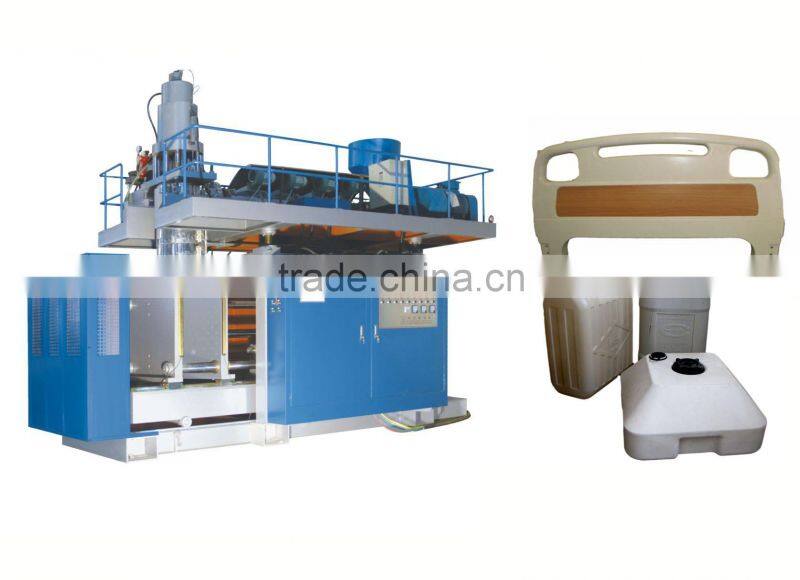

Hollow plastics blow moulding machine can produce all kinds of PE Container, PP Container, ABS Container, PC Container. likes oil buckets, toolbox, chairs,jerrycans, desks,hollow parts and so on.
PLC plus man-machine interface, operate by touch screen. Self-diagnosis alarm, clear at a glance.
Accumulator die head whose runner is made by high-quality nitride alloy steel with mirror surface treatment, material and color quick reload.
Unique " three tie bar +two cylinder + linear guide" structure of the clamping structure to ensure a more uniform mode-lock, knit line more smooth.
Hydraulic system designed under energy-saving hydraulic principles,adopt two oil pump structure. lower energy consumption by 20% -40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system ,etc.
| specification | unit | zk-90A | zk-90B |
| max container capacity | L | 50 | 50 |
| number of die heads | set | 1 | 1 |
| machine dimension(L*W*H) | M | 5*2.3*3.9 | 5*2.3*3.9 |
| total weight | ton | 8 | 8 |
| clamping unit | |||
| clamping force | KN | 300 | 300 |
| platen opening stroke | mm | 300-1100 | 300-1100 |
| max mould size(W*H) | mm | 720*800 | 720*800 |
| mould thickness | mm | 350-500 | 350-500 |
| power | |||
| max drive | KW | 11 | 11 |
| total power | KW | 90 | 90 |
| fan power for screw | KW | 0.18*5 | 0.18*5 |
| air pressure | Mpa | 0.7 | 0.7 |
| air consumption | m3/min | 0.9 | 0.9 |
| average energy consumption | KW | 35 | 35 |
| extruder unit | |||
| screw diameter | mm | 90 | 90 |
| screw L/D ratio | L/D | 25:1 | 25:1 |
| plasticizing capacity | kg/hr | 130 | 130 |
| number of heating zone | zone | 5 | 5 |
| extruder heating power | KW | 12.5 | 12.5 |
| extruder driving power | KW | 12 | 30 |
| accumulator head | |||
| number of heating zone | zone | 3 | 3 |
| power of die heating | KW | 6 | 6 |
| max die-pin diameter | mm | 350 | 350 |
| accumulator volume | L | 6 | 6 |
