Specifications
automatic plastic blow molding machine ZK-1001.simple operate
2.energy saving
3.accumulator die head
4.MAX 100L

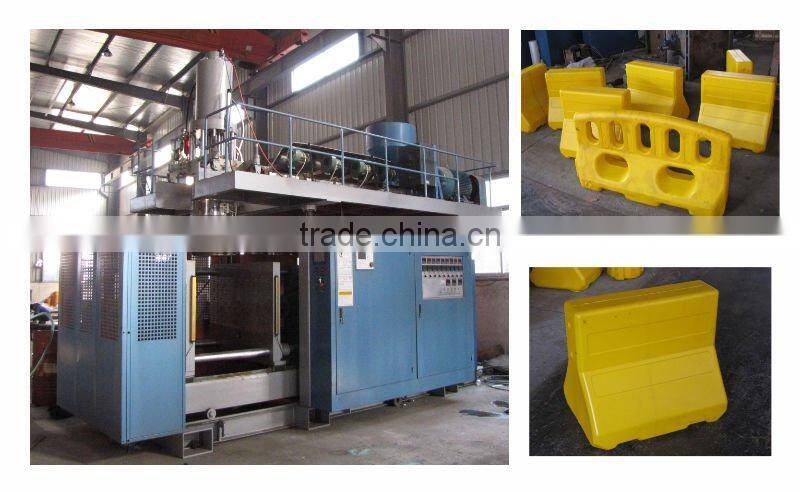

hollow automatic plastic blow molding machine
good quality and best price, can make the needs of customers.

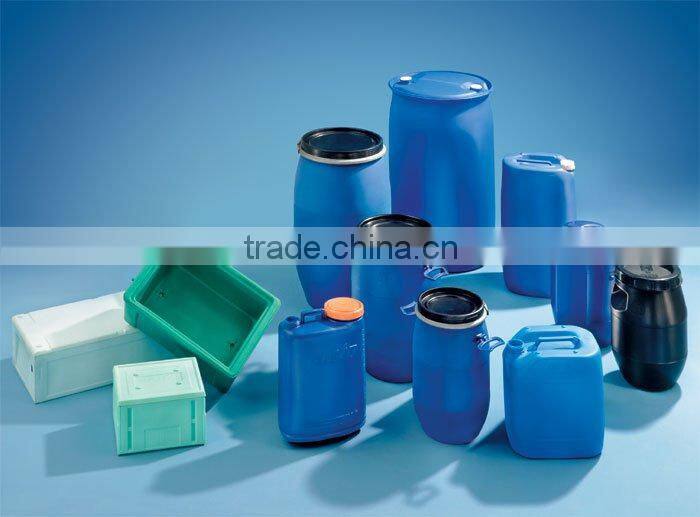

blow molding machines. max products up to 100L, like jerry cans, gallon, chemical drum, barrel, toy, bus seat chair, mannequins, fuel tanks, automotive parts etc plastic hollow blow molding parts.
Features:
1) Controlled by Japanese PLC
2) Temperature controlled model
3) Interactive monitor with machine-human interface
4) Imported hydraulic elements
5) Proportional control
6) Imported electric elements
7) Hard gear surface reducer
8) Accumulator head with special steel
9) Vicker hydraulic valve, seal and proportional control
10) Japan PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements
following is the technical specifications:
specification |
unit |
zk-100B |
max container capacity |
L |
100 |
number of die heads |
set |
1 |
machine dimension(L*W*H) |
M |
6.5*3.3*4.2 |
total weight |
ton |
13 |
clamping unit |
|
|
clamping force |
KN |
400 |
platen opening stroke |
mm |
400-1200 |
max mould size(W*H) |
mm |
900*1200 |
mould thickness |
mm |
410-600 |
power |
|
|
max drive |
KW |
11 |
total power |
KW |
85 |
fan power for screw |
KW |
0.72 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
38 |
extruder unit |
|
|
screw diameter |
mm |
100 |
screw L/D ratio |
L/D |
25:1 |
plasticizing capacity |
kg/hr |
160 |
number of heating zone |
zone |
4 |
extruder heating power |
KW |
20 |
extruder driving power |
KW |
37 |
accumulator head |
|
|
number of heating zone |
zone |
5 |
power of die heating |
KW |
18 |
max die-pin diameter |
mm |
400 |
accumulator volume |
L |
15 |
