blow molded plastic chair and table
- 0 per Month
- NINGBO SHANGHAI
- T/T
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | shengda |
Model Number: | zk-90A |
Product Description
Specifications
plastic blow moulding machinesJapan mitsubishi PLC or taiwan delta PLC
taiwan delta touch screen...

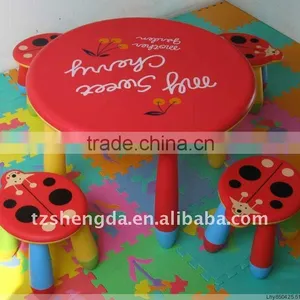

plastic blow moulding machines making tool case--making blow molded plastic furniture table chair stool bus seat

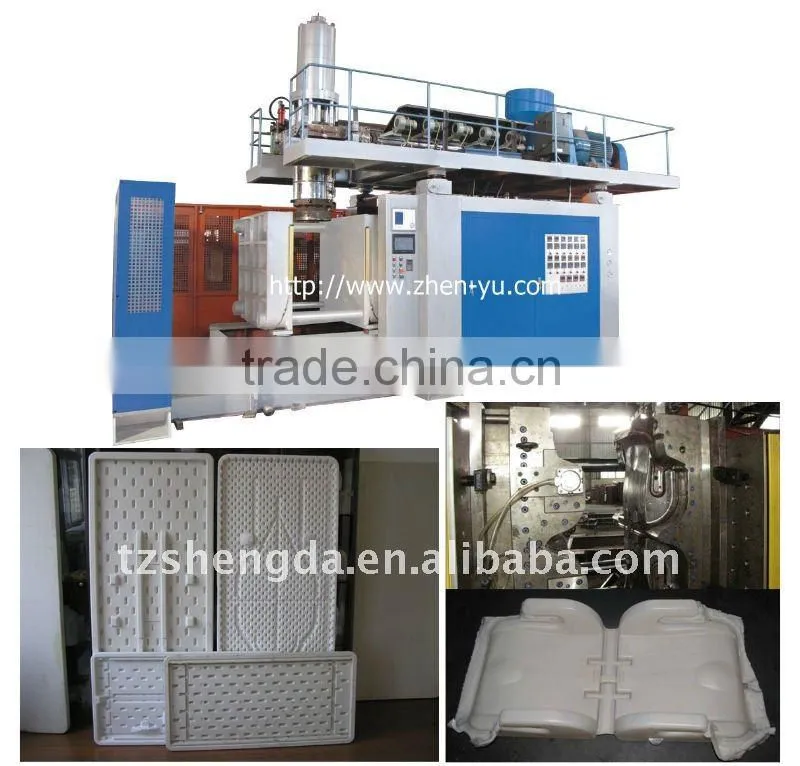

90 Model automatic large extrusion blow molding machine --- This model adopts fixed mould open-closing system and accumulator die. Parison programmer is available to control thickness.This model is automatic process with low noise, saving energy,high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box,oil box,air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball stands,baby castle), tool box,vacuum cleaner pipe,chairs for bus and gymnasium,etc.This model can produce max 60L hollow plastic product.
good quality and best price, can make the needs of customers.
following is the technical specifications:
specification | unit | zk-90A |
max container capacity | L | 50 |
number of die heads | set | 1 |
machine dimension(L*W*H) | M | 5*2.3*3.9 |
total weight | ton | 8 |
clamping unit |
|
|
clamping force | KN | 300 |
platen opening stroke | mm | 300-1100 |
max mould size(W*H) | mm | 720*800 |
mould thickness | mm | 350-500 |
power |
|
|
max drive | KW | 11 |
total power | KW | 90 |
fan power for screw | KW | 0.18*5 |
air pressure | Mpa | 0.7 |
air consumption | m3/min | 0.9 |
average energy consumption | KW | 35 |
extruder unit |
|
|
screw diameter | mm | 90 |
screw L/D ratio | L/D | 25:1 |
plasticizing capacity | kg/hr | 100 |
number of heating zone | zone | 5 |
extruder heating power | KW | 12.5 |
extruder driving power | KW | 12 |
accumulator head |
|
|
number of heating zone | zone | 3 |
power of die heating | KW | 6 |
max die-pin diameter | mm | 350 |
accumulator volume | L | 6 |
