Specifications

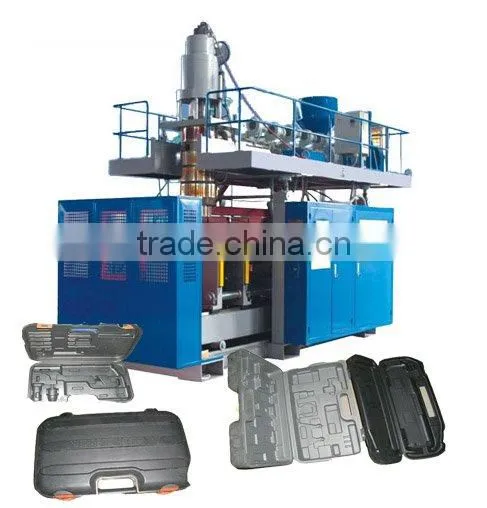

automatic blow moulding machine ZK-90Bcan make barrel,drum,automobile pipe,plate,baby safe seat etc
fixed open-close system..

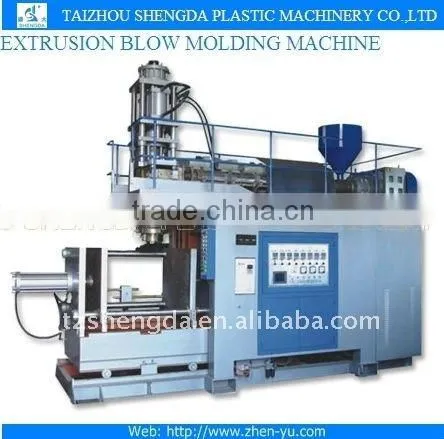

blow molding machine(extrusion blow molding machine) ZK-90B

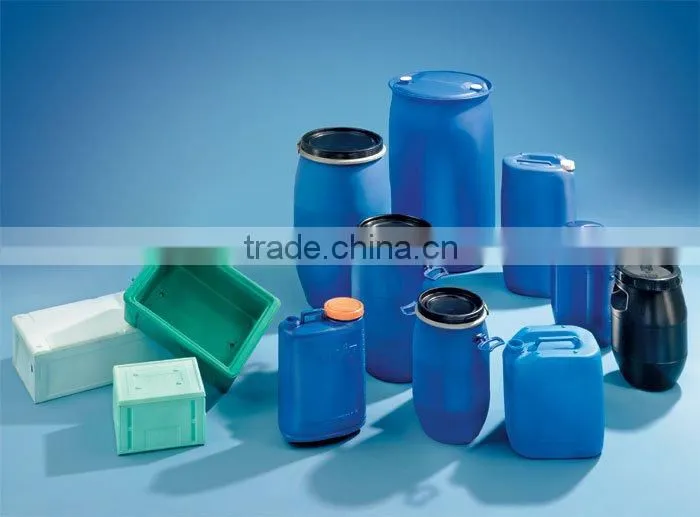

1.This series is mainly applicable to the production of various packing barrels with PE and PP material and capacity between 10-60L. toolbox,motorcar parts such as gasoline bank, wind pipe automatic and other large and medium-sized plastic hollow products.
2.This series adopts new patent of two pull-rod type closing-mold device;double-folding accumulator head;extrusion device,equipped with complete blowing device and product taking-outdevice,and entirely achieves full automatic production.
3.The electrical control system adopts Complete computer control to automatically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
4.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.
following is the technical specifications:
specification |
unit |
zk-90A |
zk-90B |
max container capacity |
L |
50 |
60 |
number of die heads |
set |
1 |
1 |
machine dimension(L*W*H) |
M |
5*3.1*3.2 |
5*3.1*3.9 |
total weight |
ton |
7 |
9 |
clamping unit |
|
|
|
clamping force |
KN |
300 |
300 |
platen opening stroke |
mm |
350-1050 |
350-1050 |
max mould size(W*H) |
mm |
700*1000 |
700*1000 |
mould thickness |
mm |
360-500 |
360-500 |
power |
|
|
|
max drive |
KW |
11 |
11 |
total power |
KW |
63 |
70 |
fan power for screw |
KW |
0.72 |
0.72 |
air pressure |
Mpa |
0.7 |
0.7 |
air consumption |
m3/min |
0.9 |
0.9 |
average energy consumption |
KW |
28 |
35 |
extruder unit |
|
|
|
screw diameter |
mm |
90 |
90 |
screw L/D ratio |
L/D |
25:1 |
25:1 |
plasticizing capacity |
kg/hr |
100 |
120 |
number of heating zone |
zone |
5 |
4 |
extruder heating power |
KW |
12.5 |
12.5 |
extruder driving power |
KW |
22 |
30 |
accumulator head |
|
|
|
number of heating zone |
zone |
3 |
5 |
power of die heating |
KW |
7 |
20 |
max die-pin diameter |
mm |
350 |
350 |
accumulator volume |
L |
5 |
6 |
