Specifications

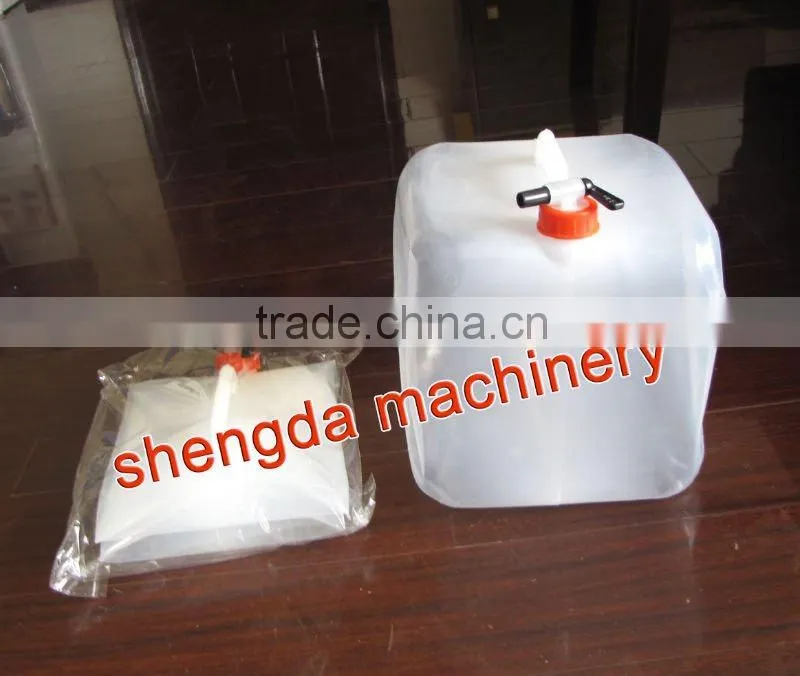

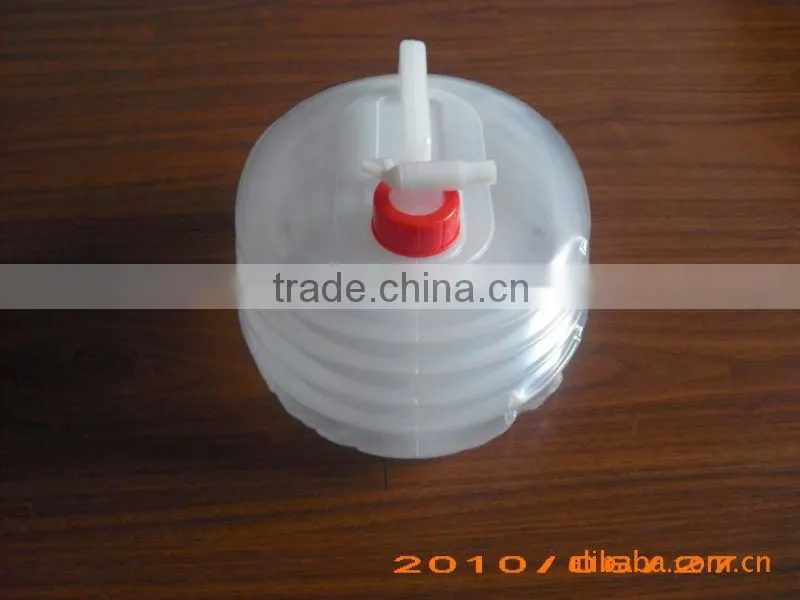

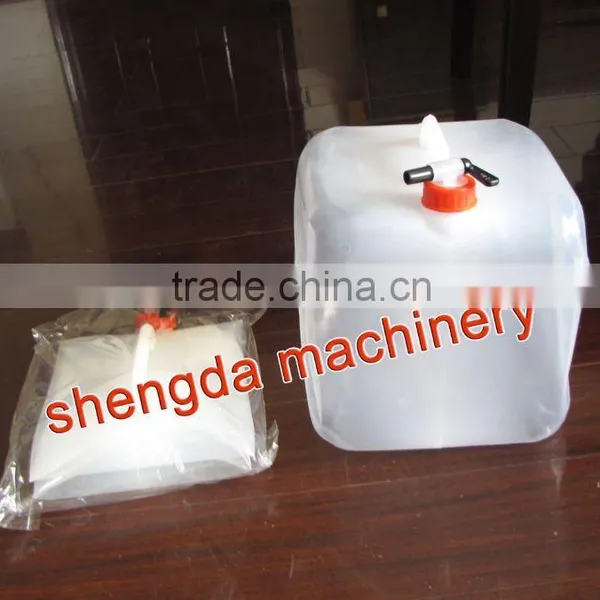

plastic blow molding machine ZK-70barrel,foldable water container,collapsible jerrycan
capacity:1-20L
screw:70mm
plastic blow moulding machine(extrusion blow molding machine)
1.This series is mainly applicable to the production of various packing barrels with PE and PP material and capacity between 1~20L,toolbox,motorcar parts such as gasoline bank, wind pipe and other large and medium-sized plastic hollow products.
2.This series adopts new patent of two pull-rod type closing-mold device;double-folding accumulator head;extrusion device,equipped with complete blowing device and product taking-outdevice,and entirely achieves full automatic production.
3.The electrical control system adopts Complete computer control to automatically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
4.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.
More information contact us !
ZK-70A suit for small hollow products tool case air dust auto parts,collapsible water container 3-5points parison controller
ZK-90MODEL haveZK-90A ZK-90B model .
ZK-90A 3-5 points parison controller in PLC, suit for automative parts, air duct, tool case, tool box, traffic cone,etc.
ZK-90B 30 points parison controller independent,suit for jerrycan, drum, barrel, baby safety seat chemical tank,etc.
ZK-100B suit for 100L below tank jerrycan, road barrier,water tank,bus seat etc..
ZK-120B for 100-220L drum road barrier baby castle, table panel etc large products
ZK-135B for 250-1000L drum road barrier baby castle, table panel etc large products
following is the technical specifications:
specification |
unit |
ZK-70A |
max container capacity |
L |
20 |
machine dimension |
M |
4*2.6*2.7 |
total weight |
ton |
4.5 |
clamping system |
|
|
clamping force |
KN |
160 |
plate opening stroke |
mm |
250-800 |
max mould size(W*H) |
mm |
520*600 |
mould thickness |
mm |
260-400 |
power |
|
|
max drive |
KW |
7.5 |
total power |
KW |
40 |
fan power for screw |
KW |
0.72 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
20 |
extruding system |
|
|
screw diameter |
mm |
70 |
screw L/D ratio |
L/D |
25:1 |
plasticising capacity |
kg/hr |
60 |
number of heating zone |
zone |
4 |
extruder heating power |
KW |
10 |
extruder driving power |
KW |
11 |
die head |
|
|
number of heating zone |
zone |
3 |
power of die heating |
KW |
4 |
max die-pin diameter |
mm |
250 |
accumulator capacity |
L |
2.5 |
