Help CenterRoad Cone Anti-dazzle Board ZK-90A Plastic Blow Molding Machine
Related Products
-
ZK-100B Seat Tank Traffic Barrier Plastic Blow Moulding MachineNegotiableMOQ: 1 Set -
Plastic Headboard Blow Moulding MachineNegotiableMOQ: 1 Set
-
LDPE Collapsible Jerrycan Water Bag Plastic Blow Molding Machine ZK-70ANegotiableMOQ: 1 Set
-
Traffic Cone Road Cone Anti-dazzle Board ZK-90A Extrusion Blow Molding MachineNegotiableMOQ: 1 Set
-
Traffic Cone Road Cone Anti-dazzle Board ZK-90A Plastic Blowing MachineNegotiableMOQ: 1 Set
Specifications
plastic blowing machine ZK-90Aimport PLC controller
3 point parison control system
parasol base automotive tool case
plastic blow mold machine ZK-90A Model
import PLC controller
3 point parison control system, especial suit for parasol base automotive accessories,tool box,road cone etc simple products..
much more economic than ZK-90B
automatic large extrusion blow molding machine --- This model adopts fixed mould open-closing system and accumulator die. Parison programmer is available to control thickness.This model is automatic process with low noise, saving energy,high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box,oil box,air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball stands,baby castle), tool box,vacuum cleaner pipe,chairs for bus and gymnasium,etc.This model can produce max 60L hollow plastic product.
ZK-90MODEL haveZK-90A ZK-90B model .
ZK-90A 3 points parison controller in PLC, suit for automative parts, air duct, tool case, tool box, traffic cone,etc.
ZK-90B 30 points parison controller independent,suit for jerrycan, drum,baby safety seat chemical tank,etc.
ZK-100B suit for 100Lbelow tank jerrycan, road barrier,water tank,bus seat etc..
ZK-120B for 100-220L drum road barrier baby castle, table panel etc large products
good quality and best price, can make the needs of customers.
following is the technical specifications:
specification |
unit |
zk-90A |
zk-90B |
max container capacity |
L |
50 |
60 |
number of die heads |
set |
1 |
1 |
machine dimension(L*W*H) |
M |
5*3.1*3.2 |
5*3.1*3.9 |
total weight |
ton |
7 |
9 |
clamping unit |
|
|
|
clamping force |
KN |
300 |
300 |
platen opening stroke |
mm |
350-1050 |
350-1050 |
max mould size(W*H) |
mm |
700*1000 |
700*1000 |
mould thickness |
mm |
360-500 |
360-500 |
power |
|
|
|
max drive |
KW |
11 |
11 |
total power |
KW |
63 |
70 |
fan power for screw |
KW |
0.9 |
0.72 |
air pressure |
Mpa |
0.7 |
0.7 |
air consumption |
m3/min |
0.9 |
0.9 |
average energy consumption |
KW |
28 |
35 |
extruder unit |
|
|
|
screw diameter |
mm |
90 |
90 |
screw L/D ratio |
L/D |
25:1 |
25:1 |
plasticizing capacity |
kg/hr |
100 |
120 |
number of heating zone |
zone |
5 |
4 |
extruder heating power |
KW |
12.5 |
12.5 |
extruder driving power |
KW |
22 |
30 |
accumulator head |
|
|
|
die head dimension |
m |
|
|
number of heating zone |
zone |
3 |
5 |
power of die heating |
KW |
7 |
20 |
max die-pin diameter |
mm |
350 |
350 |
accumulator volume |
L |
5 |
6 |

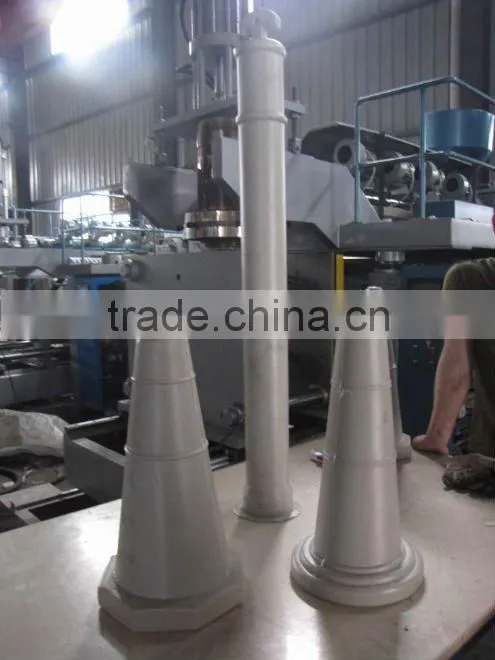

the photos is just testing products, not so clear and good looking.
