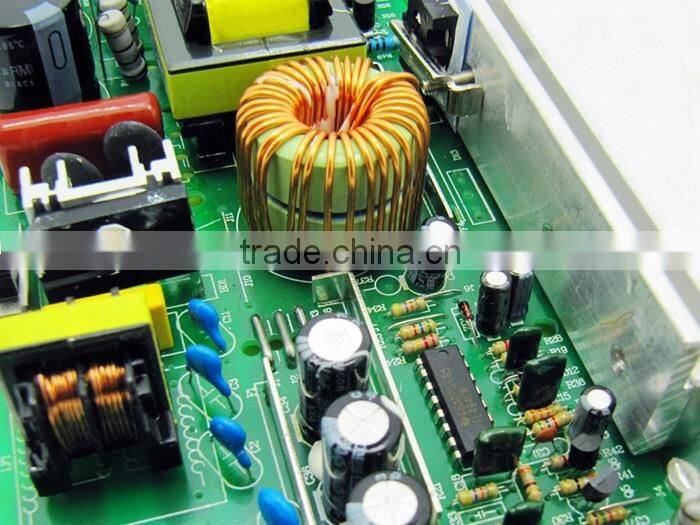

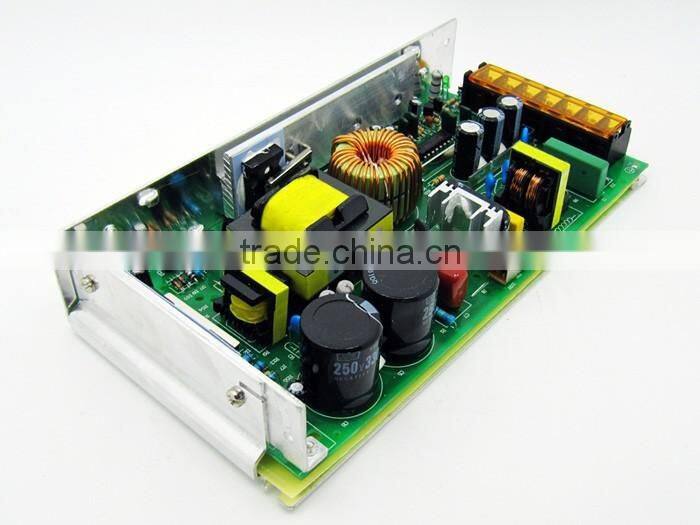

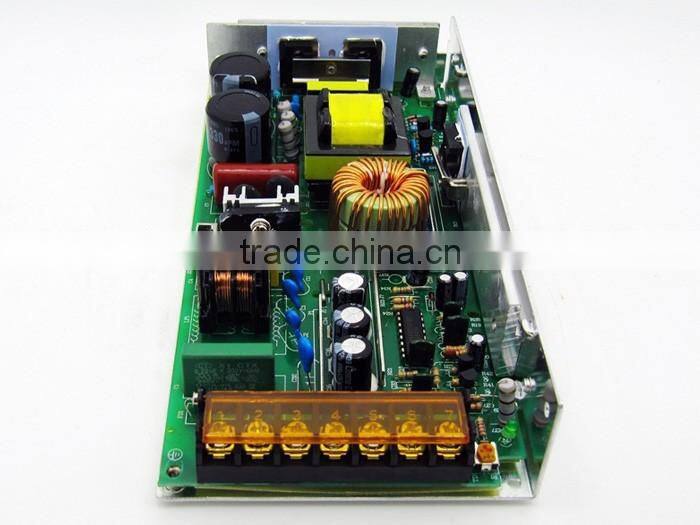

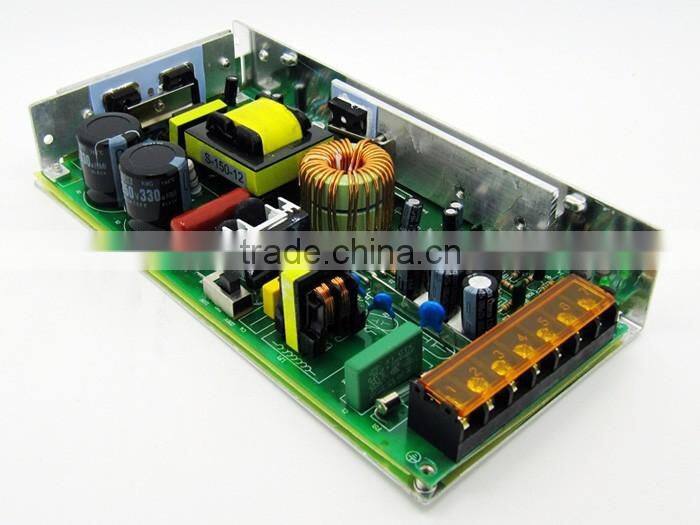

Best Cheap Good Quality 150w LED Driver 5v 30a DC Power Supply 30v 5a Variable dc Power Supply Quality Choice

Model&Specification

S-150-5

S-150-7.5

S-150-9

S-150-12

S-150-13.5

S-150-15

S-150-24

S-150-27

S-150-48

  DC Output voltage

 5V

 7.5V

9V

 12V

13.5V

  15V

 24V

   27V

   48V

  Output voltage range

   2%

  1%

1%

  1%

1%

  1%

  1%

  1%

  1%

  Rated output current

  30A

 20A

16.7A

  12.5A

  11.2A

  10A

  6.5A

  5.6A

 3.2A

  Output current range

  0~30A

  0~20A

0~16.7A

  0~12.5A

0~11.2A

  0~10A

  0~6.5A

  0~5.6A

 0~3.2A

  Wave and noise

150mVp-p

150mVp-p

120mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

 75mVp-p

  Inlet stability

   0.5%

  0.5%

0.3%

  0.3%

0.3%

 0.3%

  0.2%

  0.2%

  0.2%

  Load stability

   0.5%

  0.5%

0.3%

   0.3%

0.3%

  0.3%

   0.2%

   0.2%

  0.2%

  DC output power

  150W

  150W

150.3W

  150W

 151.2W

  150W

  156W

  151.2W

  153.6W

  Efficiency

   80%

  80%

80%

  82%

83%

  84%

  85%

  86%

  87%

  Adjustable range for DC voltage

 4.5~5.5

  6~8.3

8~10.4

 10.6~13.2

12~15V

 13.5~16.5

  21~28

  24~30

  43~53

  AC input voltage range

         85~132VAC/176~264VAC selected by switch 47~63Hz, 248~370VDC

  Input current

         3.2A/115V  1.6A/230V

  AC Inrush current

         Cold-start current 30A/115V  60A/230V

  Leakage current

         <3.5mA/240VAC

Overload protection

         105% ~ 150% Type: cut down output  Reset: auto recovery.

Over-voltage protection

         115%~135%

  Temperature coefficient

         ±0.03%/°C(0~50°C)

  Setup, rise, hold up time

         100ms, 50ms, 20ms

  Vibration

         10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes

  Withstand voltage

         I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

  Isolation resistance

         I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
