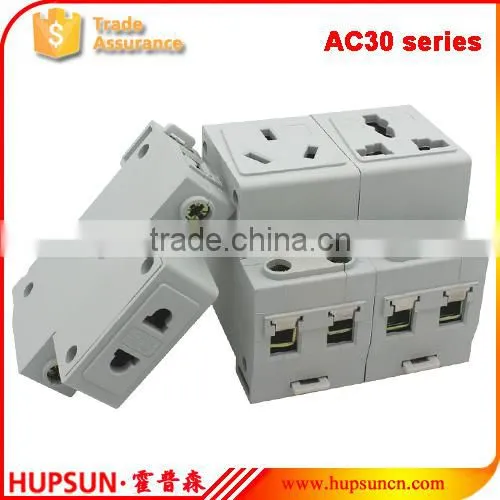

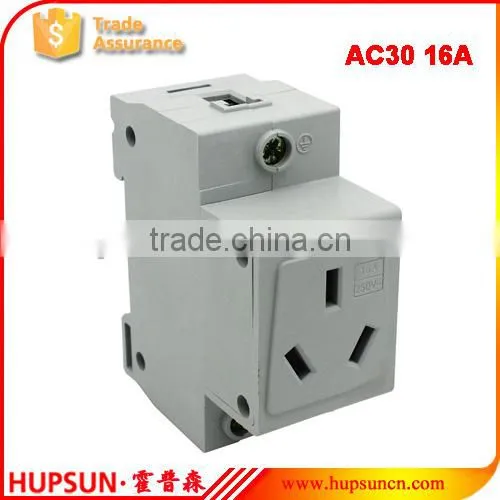

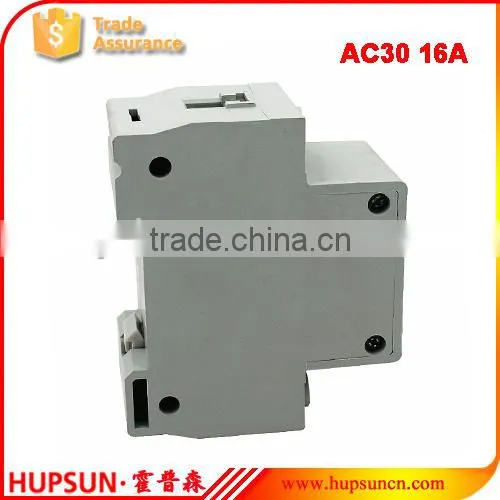

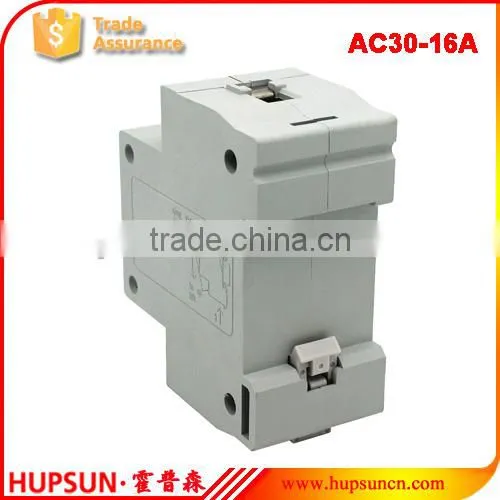

AC30 16A DIN RAIL modular socket, distribution box socket Quality Choice

FOB Price

USD $0.25 - $0.75 / Piece

100 Pieces(Min.Order)

Supply Ability 2200 Piece / Pieces per Month
Port Ningbo/ Shanghai
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	HUPSUN	Model Number:	AC30
Type:	Electrical Plug	Grounding:	Standard Grounding	Rated Voltage:	220VAC
Rated Current:	16A	Application:	Residential / General-Purpose

Product Description

AC30 250VAC 16A 2P modular switches sockets, 250v household socket

Product Description

1. Scope & application: Modular Sockets

Modular sockets are applied to AC 50Hz, rated work voltage 250V/ 440V and below, rated current to 10A/ 16A/ 25A, and usually use for home, office, farm, light industry and so on.

2. Construction features: Modular sockets

Modular sockets has good reliable contact, which is suitable for guide installation and can be used together with our other modular products for connection of mobile devices, tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.

The products comply with the standard IEC60881-1, GB2099.

3. Main parameter: Modular sockets

Pole	Voltage	Current	Operation life	Standard	Connect wire	Modular Mounting	Installation
2P	250V	10A	5000 cycles	IEC, CCC	<16MM²	yes	DIN-Rail
2P+E	250V	10A, 16A	5000 cycles	IEC, CCC	<16MM²	yes	DIN-Rail
3P+E	440V	16A, 25A	5000 cycles	IEC, CCC	<16MM²	yes	DIN-Rail

Type	Current(A)	Voltage(V)	Width(mm)	Poles	Connection Capacity
AC30-10/2	10	250	18	2	≤16MM²
AC30-10/2	16	250	18	2	≤16MM²
AC30-10/2	10	250	36	3	≤16MM²
AC30-10/2	16	250	36	3	≤16MM²
AC30-10/2	20	250	36	3	≤16MM²
AC30-10/2	25	250	36	3	≤16MM²
AC30-10/2	10	250	36	3	≤16MM²
AC30-10/2	16	250	36	3	≤16MM²
AC30-10/2	16	415	54	4	≤16MM²
AC30-10/2	25	415	72	4	≤16MM²

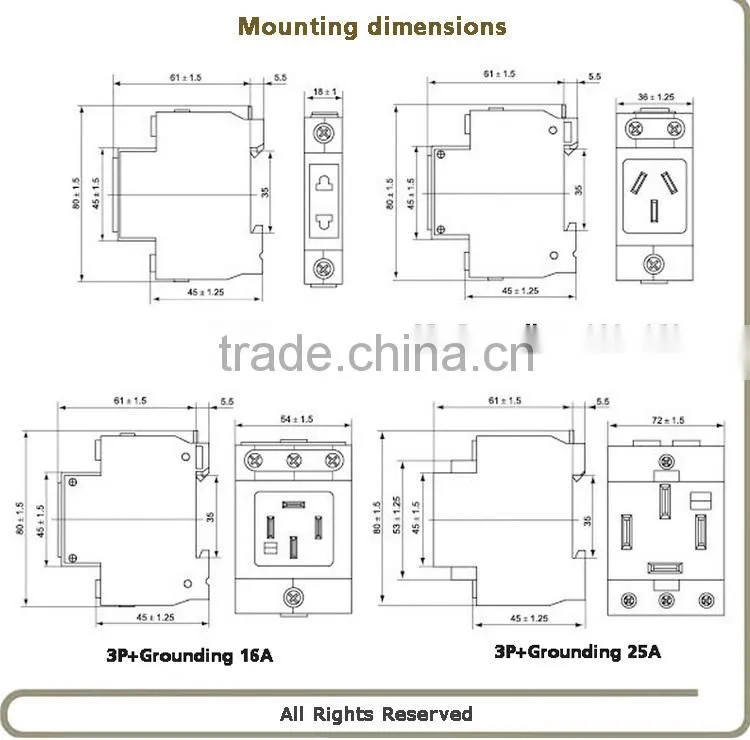

4. Installation: Modular sockets

Installation DIN width 35mm

Frequency: 50 or 60Hz	Overvoltage category: ΙΙΙ
Rated insulation voltage: Ui 500V	Pullution degree: 2
Rated impulse withstand voltage	Protection class: IP20
Uimp: 5000V	Standard mounting: 35mm DIN Rail
Dielectric test voltage at ind. Freq.	Ambient temperature: -50°c to +40°c
For 1min: 2.8KV	Storage temperature: -25°c to +70°c

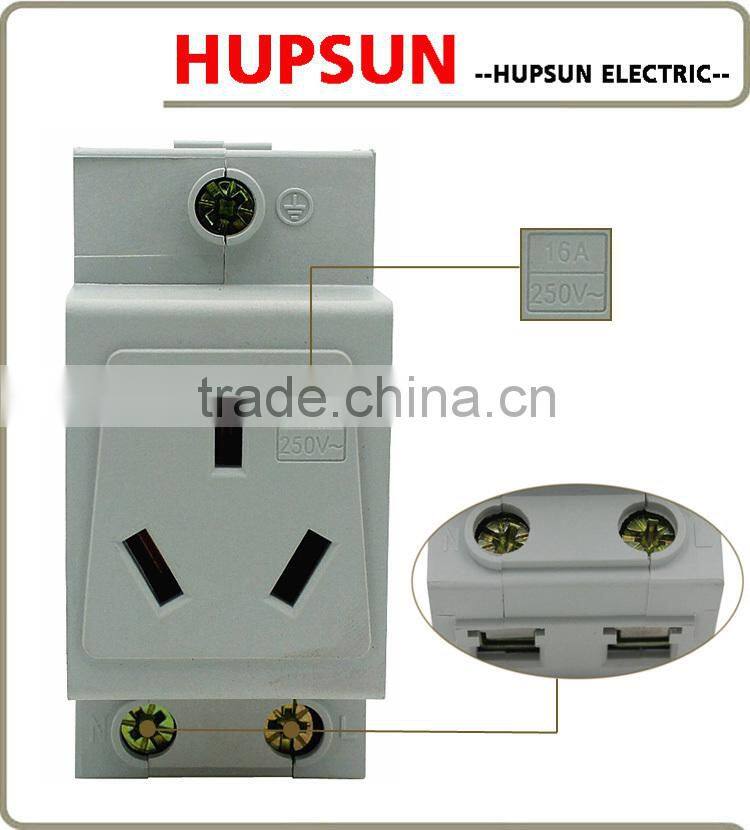

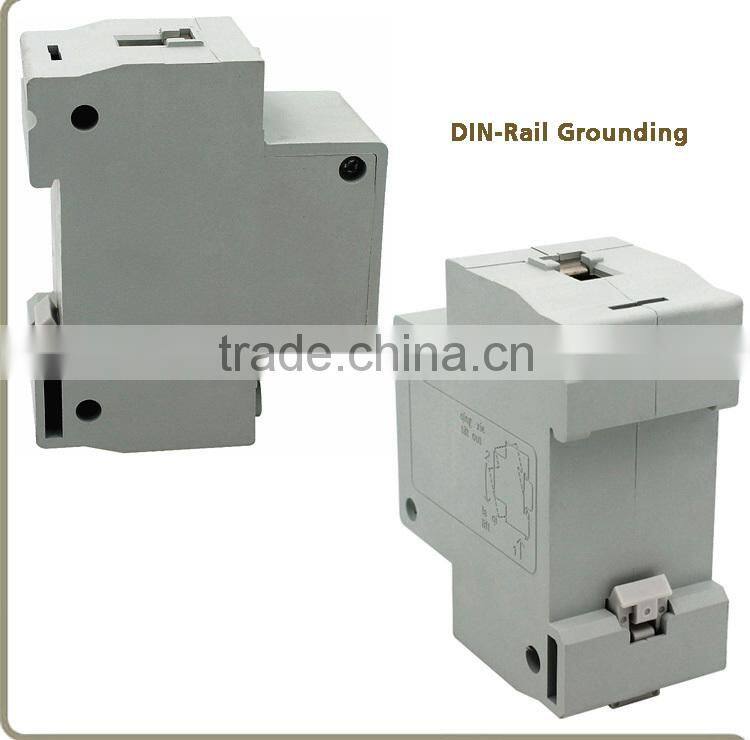

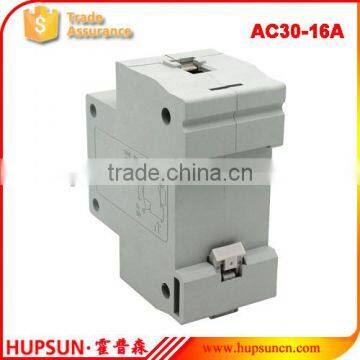

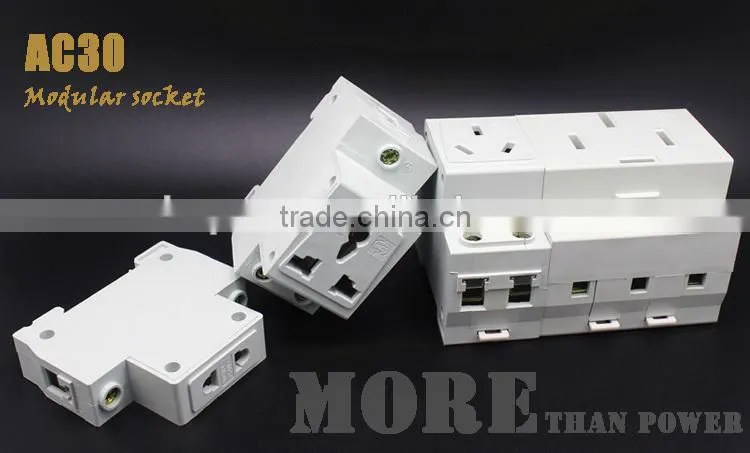

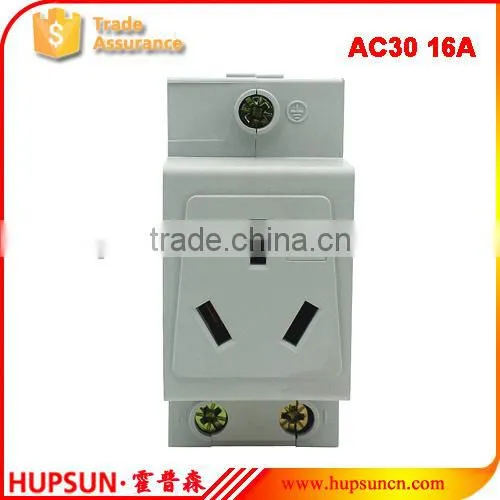

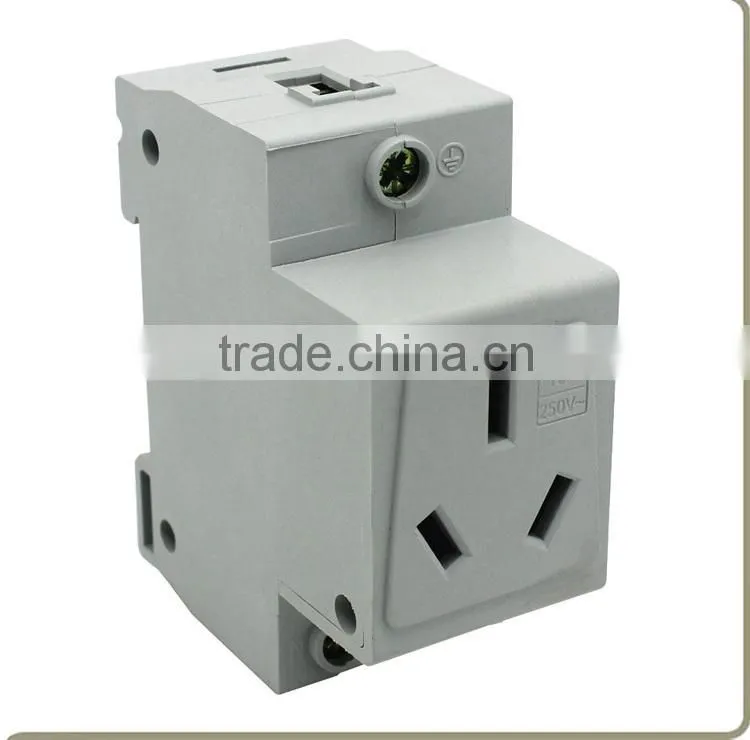

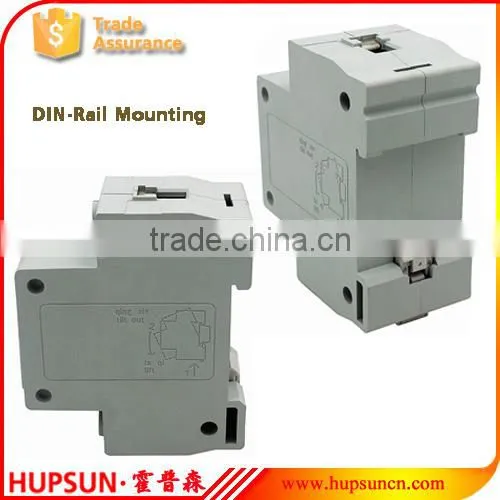

Detailed Images
