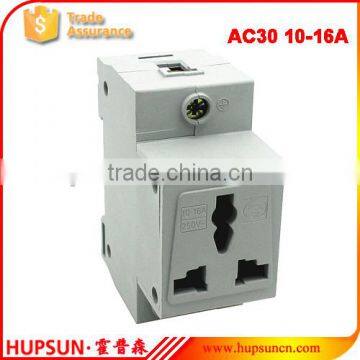

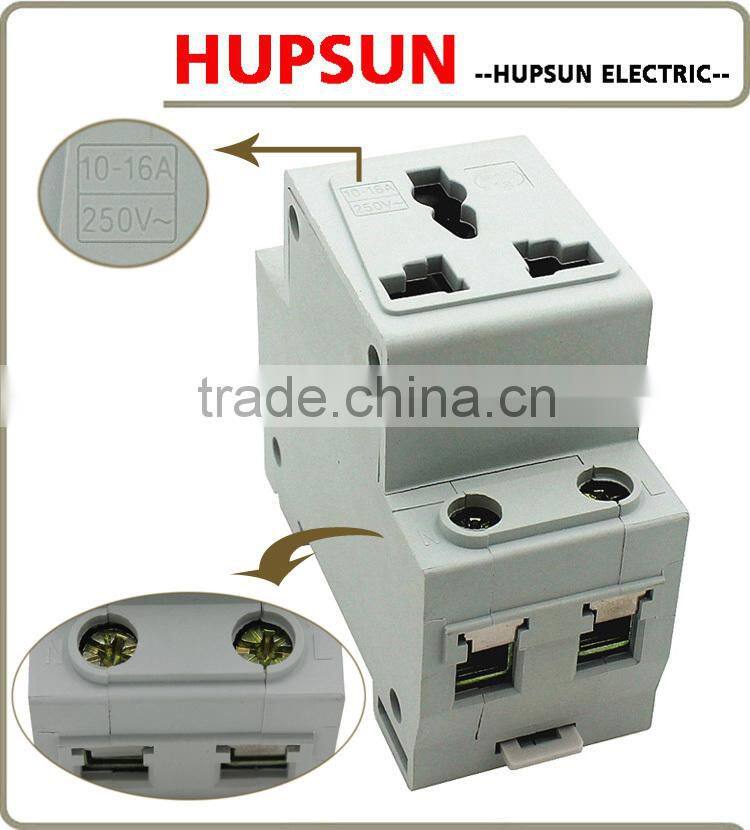

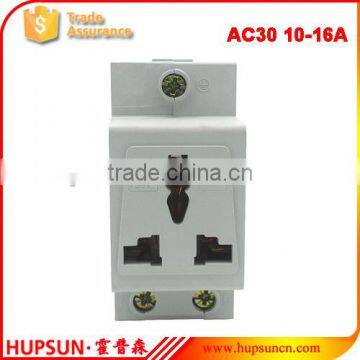

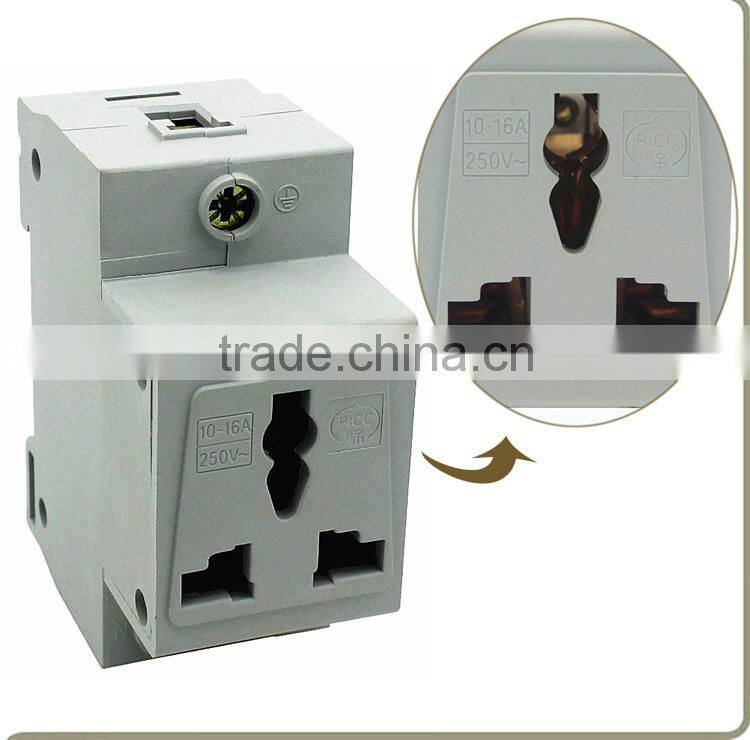

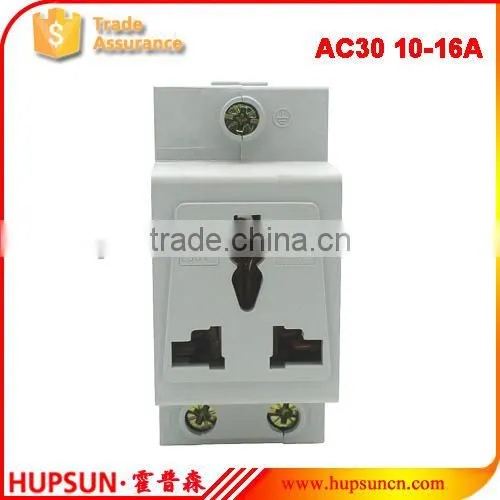

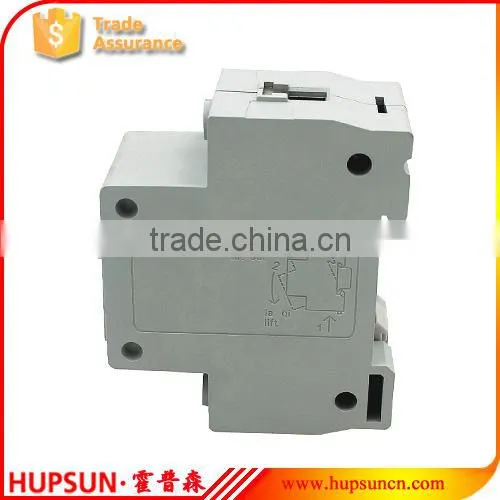

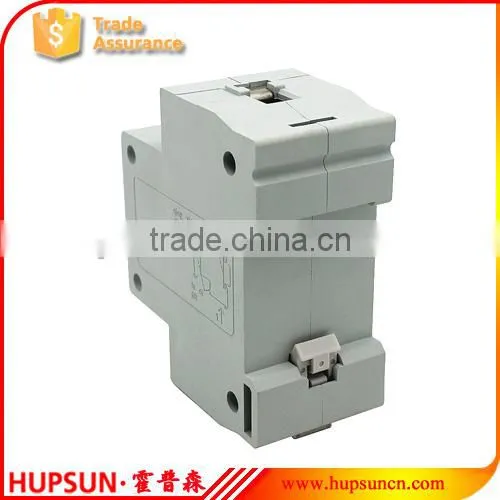

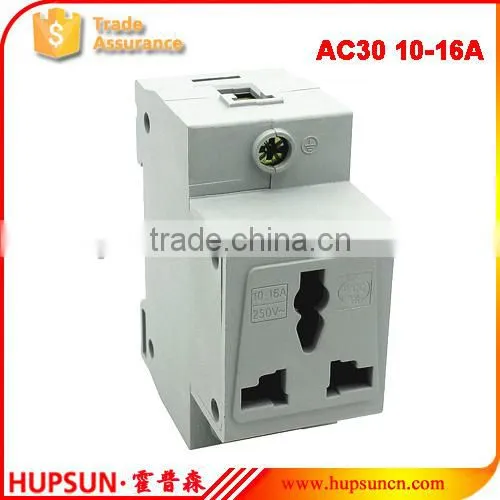

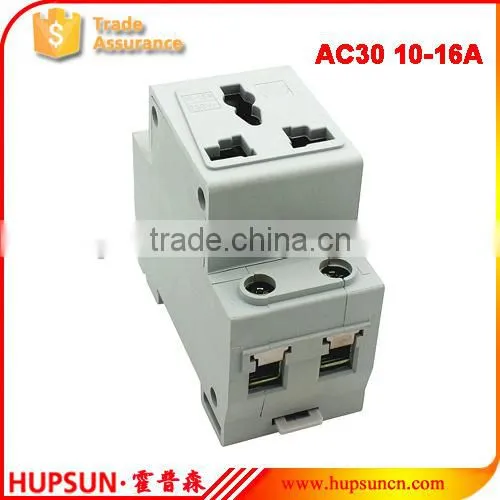

AC30 250VAC 10A 16A 2P industrical plug socket, female electrical socket
USD $0.25 - $0.75
/ Piece
100 Pieces(Min.Order)
- 2200 Piece / Pieces per Month
- Ningbo/ Shanghai
- T/T Credit Card PayPal
You May Like
-
4holes RCA jack AV socket
-
AV socket AV6 double-six-hole socket RCA jack video with metal
-
Good quality single socket RCA as AV connector
-
4 holes jack socket RCA as AV connector
-
Bluetooth 4.0 Wireless Anti lost alarm with Bluetooth Remote control for iPhone Samsung smartphone
-
KDC-A04 Power Switch 4pin
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | HUPSUN | Model Number: | AC30 |
| Type: | Electrical Plug | Grounding: | Standard Grounding | Rated Voltage: | 220VAC |
| Rated Current: | 10A 16A | Application: | Residential / General-Purpose |
Product Description
AC30 250VAC 10A 16A 2P industrical plug socket, female electrical socket
Product Description
1. Scope & application: Modular Sockets
Modular sockets are applied to AC 50Hz, rated work voltage 250V/ 440V and below, rated current to 10A/ 16A/ 25A, and usually use for home, office, farm, light industry and so on.
2. Construction features: Modular sockets
Modular sockets has good reliable contact, which is suitable for guide installation and can be used together with our other modular products for connection of mobile devices, tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.
The products comply with the standard IEC60881-1, GB2099.
3. Main parameter: Modular sockets
| Pole | Voltage | Current | Operation life | Standard | Connect wire | Modular Mounting | Installation |
| 2P | 250V | 10A | 5000 cycles | IEC, CCC | <16MM2 | yes | DIN-Rail |
| 2P+E | 250V | 10A, 16A | 5000 cycles | IEC, CCC | <16MM2 | yes | DIN-Rail |
| 3P+E | 440V | 16A, 25A | 5000 cycles | IEC, CCC | <16MM2 | yes | DIN-Rail |
| Type | Current(A) | Voltage(V) | Width(mm) | Poles | Connection Capacity |
| AC30-10/2 | 10 | 250 | 18 | 2 | ≤16MM2 |
| AC30-10/2 | 16 | 250 | 18 | 2 | ≤16MM2 |
| AC30-10/2 | 10 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 16 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 20 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 25 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 10 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 16 | 250 | 36 | 3 | ≤16MM2 |
| AC30-10/2 | 16 | 415 | 54 | 4 | ≤16MM2 |
| AC30-10/2 | 25 | 415 | 72 | 4 | ≤16MM2 |

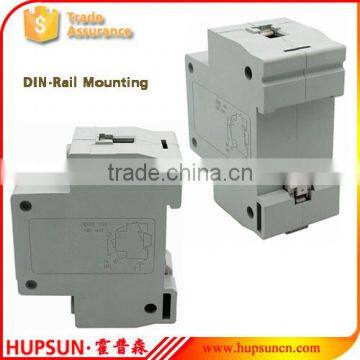

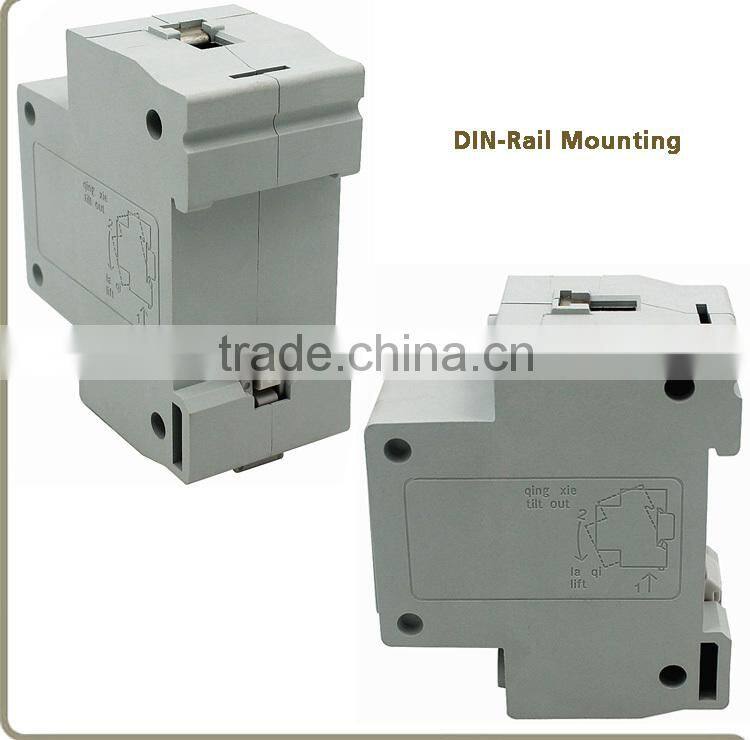

4. Installation: Modular sockets
Installation DIN width 35mm
| Frequency: 50 or 60Hz | Overvoltage category: ΙΙΙ |
| Rated insulation voltage: Ui 500V | Pullution degree: 2 |
| Rated impulse withstand voltage | Protection class: IP20 |
| Uimp: 5000V | Standard mounting: 35mm DIN Rail |
| Dielectric test voltage at ind. Freq. | Ambient temperature: -50°c to +40°c |
| For 1min: 2.8KV | Storage temperature: -25°c to +70°c |
