Specifications
1. German FESTO cylinder.2. Japanese SMC solenoid valve.
3. Precise printing, steady and durable.
4. CE approved.

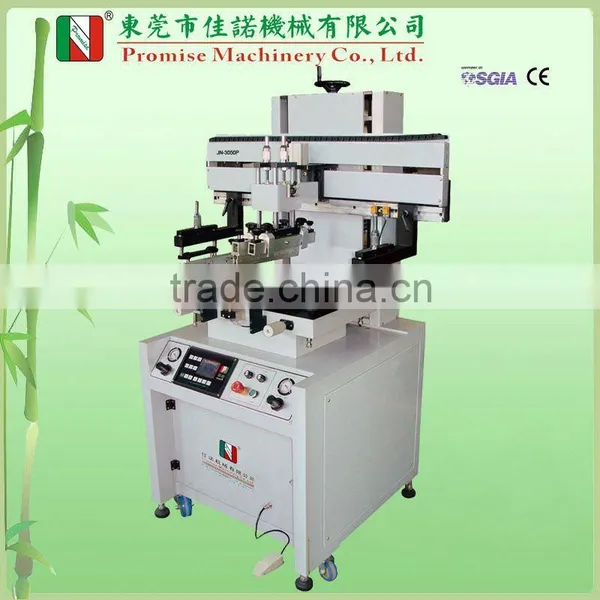

Flat Screen Printing machine JN-3050P
This kind of machine is Suitable for printing on various materials such as wood, plastic, metal, glass, leather, cosmetics, gifts, or ceramic etc.
Be widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc
Printing objects such as decal, cards, transfer paper, pester, sticker, PVC/PET/PC films, metal nameplate etc which are made of non-deforming materials
Features:
1. Advanced computerized system control.
2. Built-in LED digital counter.
3. Light-weight, strong aluminum cast machine frame.
4. Pneumatically driven adopt from FESTO, can adjust the movement speed of each part.
5. Can be operated in manual and semi-auto mode to suit different worker's skill level.
6. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
7. with the snap-off unit, it can depart the screen frame and printing object smoothly, ensure good printing quality.
8. Squeegee / flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
9. Linear guide rail and the slider left and right, to ensure the printing precision.
10. Imported converter, the required printing speed key adjust printing.
11. with a jog/step/round robin/automatic function to switch easily.
12. Table with foot switch/emergency stop button, ensure the needs of the printing process and operating personnel.
13. Machine running fast and stable, low nosie.
Specifications:
1. Thickness of printing matter: 0~60mm
2. Size of printing table: 400× 600mm
3. Max printing area: 350× 450mm
4. Max Stroke of up-and-down frame: 160mm
5. Max. Printing speed: 1300Pcs/Hr
6. Air pressure: 6 Bar
7. Power voltage: AC 110V/220V 60Hz/50Hz
8. Power consumption: 35 W
9. Machine dimension: 960× 900× 1580mm
10. Machine weigh: 200 Kg
