Model JN-4060P High Precision Flat Screen Printing Machine
- 300 Set / Sets per Month
- China Main Port
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Promise |
Model Number: | JN-4060P | Usage: | Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer | Automatic Grade: | Semi-Automatic |
Voltage: | 110V/220V 50HZ/60HZ | Gross Power: | 200 W | Dimensions(L*W*H): | 1250 x 970 x 1720mm |
Weight: | 230KG | Certification: | CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

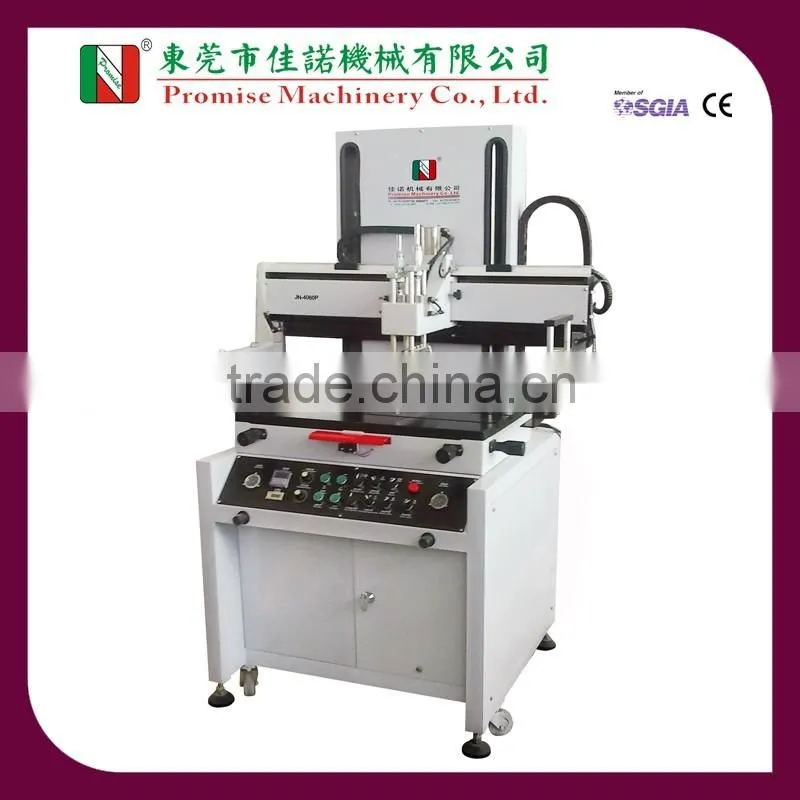

High Precision Flat Screen Printing machine JN-4060P
This screen printing machine is Suitable for printing on various materials such as wood, plastic, metal, glass, leather, cosmetics, gifts, or ceramic etc.
Be widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc
Printing objects such as decal, cards, transfer paper, pester, sticker, PVC/PET/PC films, metal nameplate etc which are made of non-deforming materials
Advantage:
1. PLC control. (Touch Screen Panel is optional.)
2. Left&Right Movement Driven: Motor drive left&right printing.
3. Up&Down Movement Driven: Pneumatic, cylinder adopt from German FESTO. (Motor driven is optional.)
Specifications:
Thickness of printing material | 0~60mm |
Size of printing table | 500× 700mm |
Max printing size | 400× 600mm |
Max Stroke of up-and-down frame | 160mm |
Max. Printing speed | 1200Pcs/Hr |
Air pressure | 6 Bar |
Power voltage | AC 110V/220V 60Hz/50Hz |
Power consumption | 200 W |
Machine dimension | 1250× 970× 1720mm |
Machine weight | 230 Kg |
Features:
1. PLC control.
2. Built-in LED digital counter.
3. Light-weight, strong aluminum cast machine frame.
4. Pneumatically driven adopt from FESTO, can adjust the movement speed of each part.
5. Can be operated in manual and semi-auto mode to suit different worker's skill level.
6. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
7. with the snap-off unit, it can depart the screen frame and printing object smoothly, ensure good printing quality.
8. Squeegee / flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
9. Linear guide rail and the slider left and right, to ensure the printing precision.
10. Imported converter, the required printing speed key adjust printing.
11. with a jog/step/round robin/automatic function to switch easily.
12. Table with foot switch/emergency stop button, ensure the needs of the printing process and operating personnel.
13. Machine running fast and stable, low nosie.
Why choose us? Our Advantages:
How to Order?
Cooperative Partners:
We do business with companies and customers all over the world. Please feel free to contact us.
Packing:
As the picture bellow, we pack goods with high standard ways to ensure the goods not damaged on the way of transportation.
Delivery:
7~15 days after order confirmed.
Shipping Cooperators:
You can choose any shipping way as follow:
About our Company:
We are specialized in high-quality pad printers, pad printing machine, high precision flat screen printing machine , screen printers, hot stamping machines, heat transfer machines, water transfer machines, peripheral equipment and printing consumables. With customers' support and caring, we has experienced our steady development for more than 16 years.

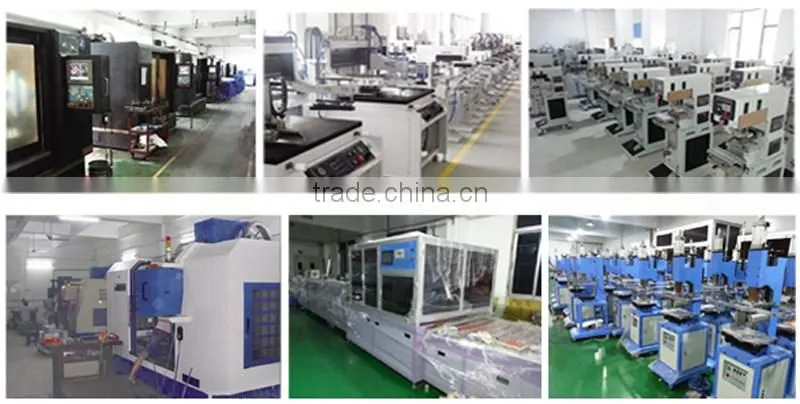

Workshop:
Certificates:
Contact Us
- Dongguan Promise Machinery Co., Ltd.
- Contact nameVincent Joe
- Phone86-769-82287798
- AddressNo. 34, Xiaobian Avenue, Chang'an, Dongguan, China Dongguan,Guangdong
