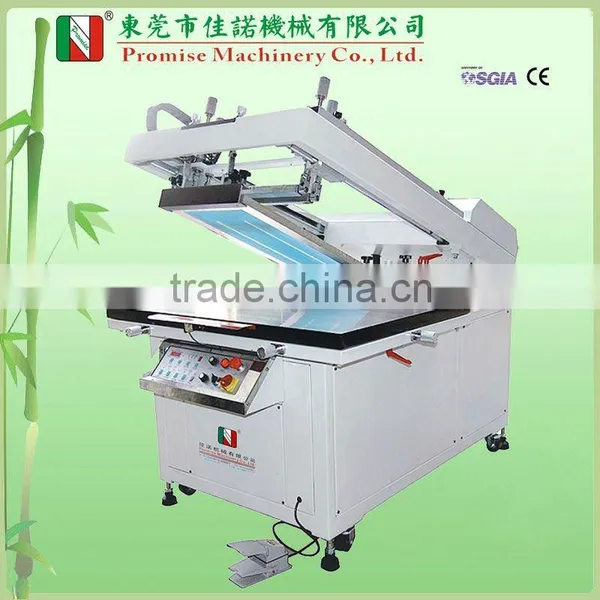

Oblique Arm Precision Screen Printing Machine (Model JN-OA6090P)

Specifications

Application Scope:

This Oblique Arm Precision Screen Printing Machine is widely used in the packaging industry (such as the packages of cigarettes, wine, gift, cosmetic, etc. ), the printing of brand, calendary, oil painting, keyboard, New Year pictures, transfer papers, pressure-sensitive adhesive, Non-woven bag and credit card.

Advantages:
1. Designed with its structure equipped with both power-driven and air-powered devices;
2. The prinitng operation and lifting transmission are under the control of the imported variable automatic system, and the complete machine is characterized by uniformity of operation.
3. Its printing plate is cast with aluminum alloy, Stainless steel sheet of 2mm in thickness is adhered to the surface of the printing plate, and the printing plate may be smooth, even, and free from distortion;
4. In addition, it is provided with coordinate vernier device and automatic air-intake function, ensuring still more easy and accurate printing plate alignment.
5. Slide rail adopts linear guide rail made in Germany, Free of attrition wear. Transpission gear is equipped with imported timing belt and it is characterized by free actuation and adjustable speed.
6. Pressure of squeegee blade and in returning blade are adjustable and may be separately manipulated, and adjustment up tp 45 degrees is allowed as well
7. It is equipped with safe bounce-back function, ensuring safety in operationl it is also provided with automatic synchronous screen-departure function, and this may avoid the scumming of printed materials effectively.
8. All components of the electrical section are from noted brands, its panel is fitted with electronic touch keys. The complete machine is coated with static pyrolytic coating, with esthetic appearance, good taste, and solvent resistance.

Machine Fittings:
1. Single chip microcomputer;
2. Taiwan Frequency conversion Motor;
3. Taiwan Frequency conversion controlling system;
4. Omron Relay and Schneider AC contactor;
5. HWL Magnetic induction sensor, Airtic Pneumatic Component.

Specifications:
