Automatic PVC Pipe Printer,pipe Printing Machine
- shanghai
- T/T
You May Like
-
Automatic PVC Tube Printer,plastic Tube Printing Machine
-
Automatic Plastic Tube Printing Mahine
-
Automatic Plastic Bottle Printing Machine
-
DAKE High Speed Automatic Plastic Bottle Printing Machine,UV Curling
-
DAKE 6-color High Speed Automatic Plastic Bottle Printing Machine,PLC System
-
DAKE-60 High Speed Automatic Plastic Bottle Printing Machine
Product Details
| Condition | New | Plate Type | Letterpress | |
| Place of Origin | Shanghai, China | Brand Name | DAKE | |
| Model Number | DAKE-60 | Usage | Tube Printer | |
| Automatic Grade | Automatic | Voltage | 3 phase380V/50Hz | |
| Gross Power | 14kw | Dimensions(L*W*H) | 5m*2.5m*1.8m | |
| Weight | 3000kg | Certification | ISO9001 | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.PVC pipe printing machine2.Corona system(1KW)
3.6 colors printing Host
4.UV curing system(1+3)KW
automatic PVC pipe printer,pipe printing machine
1 Characteristic
The machine head,with a power of 4KW,is controlled by frequency control,With forward and reverse jog operation function;UV lights down low-power (1KW),And with the shutter gobo,More secure and reliable;;Open-type color station,alters ink by independent variable speed motors..
2 component parts
1.Automatic loading system and output frame (controled by photo-electricity)
2.delicate index drive of eight location
3.Corona system(1KW)
4 6 colors printing Host
5.UV curing system(1+3)KW
6. Electronic Control Box
3 Main technical parameters
Model | DAKE-60 |
Total power | 14KW |
Voltage | 3 phase380V/50Hz |
Air consumption | 0.5M3/0.6MP |
size of product | dia60mm*H240mm |
printing speed | 6000pcs/hr |
color | 4/6 |
Curing | UV(4KW) |
size | 5m*2.5m*1.8m |
weight | 3000kg |

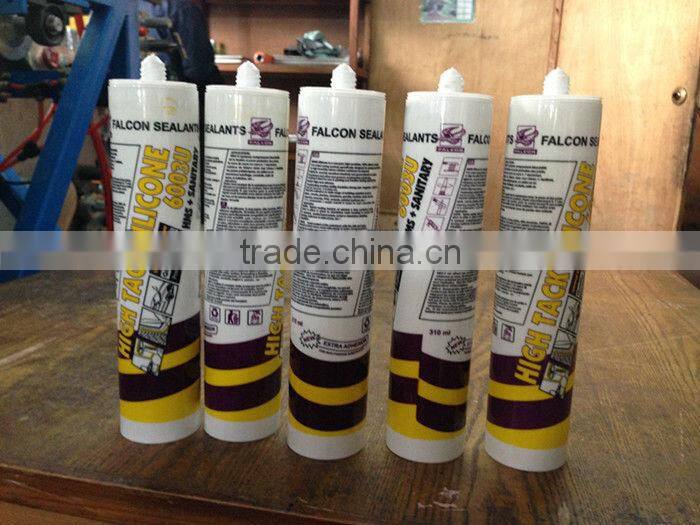

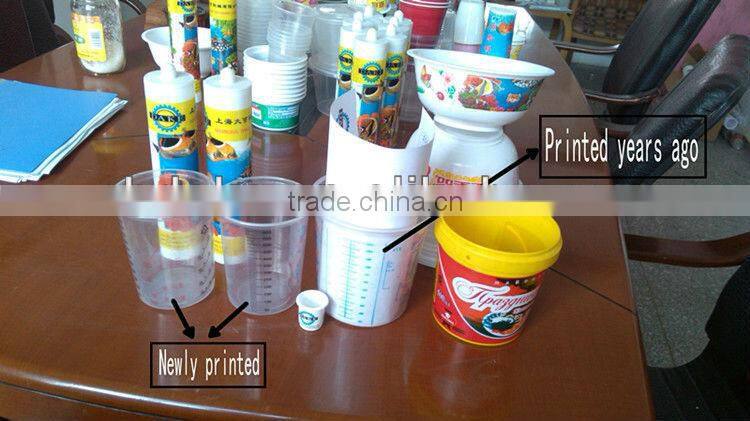

4 Pictures
