plastic thermoforming machine
- 20 Set / Sets per Month
- SHANGHAI
- T/T
- cooling tower fill forming machine/ PVC pp fills machine
- Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
- Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
- Plastic Seedling tray blister forming machine / Seed tray blister making machine
- Hot selling automatic plastic dishes making tray seed thermoforming machine with factory price
- best selling PS Foam Disposable Lunch Box Making Machine Fast Food Box Foaming Machine
Product Details
Condition: | New | Type: | Thermoforming Machine | Plastic Type: | PP |
Product Type: | Cup | Automatic: | Yes | Place of Origin: | Shanghai, China |
Brand Name: | DAKE | Model Number: | DAKE-DT66B | Voltage: | 380V |
Power(W): | 83kW | Weight: | 5T | Dimension(L*W*H): | 9.5m*1.5m*2.7m |
Certification: | ISO9001 | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
thermoforming machinea.good quality
b.reasonable price
nsummate after-sale service
1 Thermoforming machine
Plastic Thermoforming Machine is a kind of efficient automatic plastic thermoforming technical process.It can finish
producing at one time through feeding,heating ,streching,forming and sidecutting,etc.It can produce such as PP,PE,
PS,and ABS,etc. This machine has wide used ,This machine is mainly used for producing disposable plastic vessels,
such as teacup,milkcup,instant noodles bowl and other plastic products,etc..
2 Main technical parameters of equipment
Model | DT66B |
Sheet width | 300-600mm |
Sheet thickness | 0.3-1.5mm |
Max diameter of sheet rolll | 700mm |
Max forming area | 620*220mm |
Max forming depth | 120mm |
Revolution | 20-35mould/min |
Power | 83KW |
Voltage | Three phase 380V/50Hz |
Air consumption | 0.7Mpa*1.6m3/min |
Dimension | 9.5m*1.5m*2.7m |
Weight | 5T |

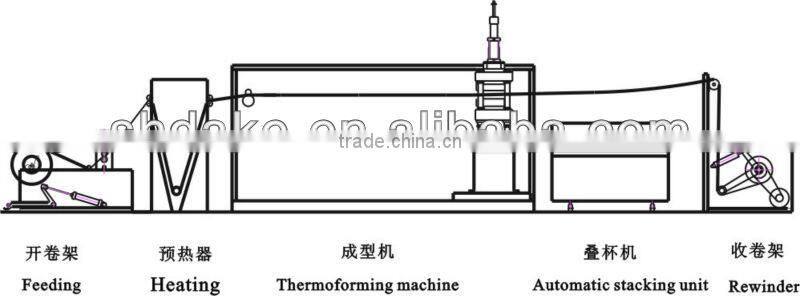

3 Process map
