New Multifunctional Plastic Thermoforming Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Plastic Cup
Place of Origin	Shanghai, China	Brand Name	DAKE
Model Number	DAKE-DT66A	Voltage	Three phase 380V/50Hz, Three phase 380V/50Hz
Power(W)	83KW	Dimension(LWH)	9.5m1.5m2.7m
Weight	5T	Certification	Other, ISO9001
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

New multifunctional plastic thermoforming machine
nvenient
2.ISO9001
3.stable running
4.high efficiency

New multifunctional plastic thermoforming machine

Brief introduction:

1. With more than 10 years' experience, we have achieved good reputation and reliability both at home and abroad.

2. Our main products:

a. plastic cup coiling machine

b. The bent offset printer

c. Thermoforming machine

d. Thermoforming mold

e. Extrusion line

What we sell is not the best, but the most fitting.

Quick Details

Place of Origin: Shanghai, China (Mainland)	Condition: New	Automatic Grade: Automatic
Max diameter of sheet rolll: 700mm	Brand Name: DAKE	Model Number: DAKE-DT66A
Revolution: 20-35mould/min	Max forming area: 620*220mm	Sheet thickness: 0.3-1.5mm
Air consumption: 0.7Mpa*1.6m3/min	Powrr: 83KW	Max forming depth: 120mm
Sheet width: 300-600mm	Dimension: 9.5m1.5m2.7m	Voltage: Three phase 380V/50Hz

Packaging & Delivery

Packaging Details:	Acording to the exported demand
Delivery Detail:	30Days

Specifications

1. adopt the most advanced plastic thermoforming technology
2. convenient
3. ISO9001
4. stable running
5. high efficiency

New multifunctional plastic thermoforming machine

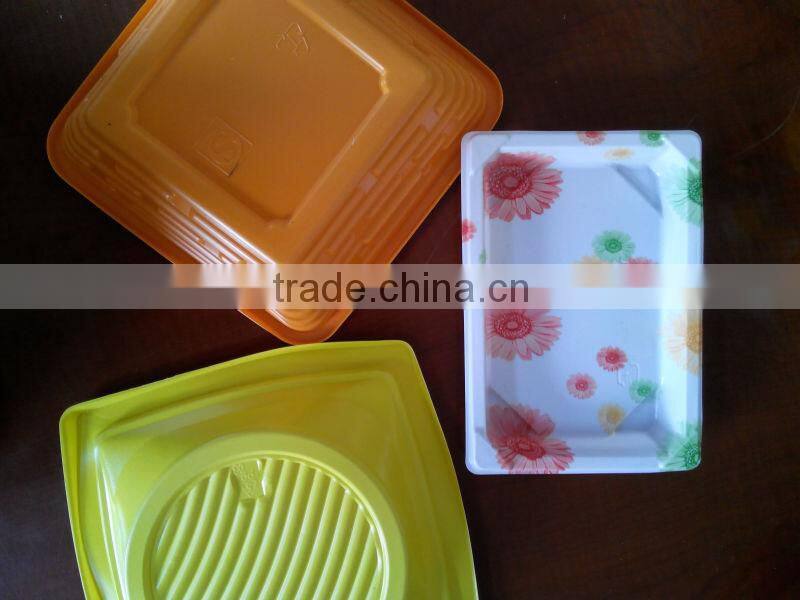

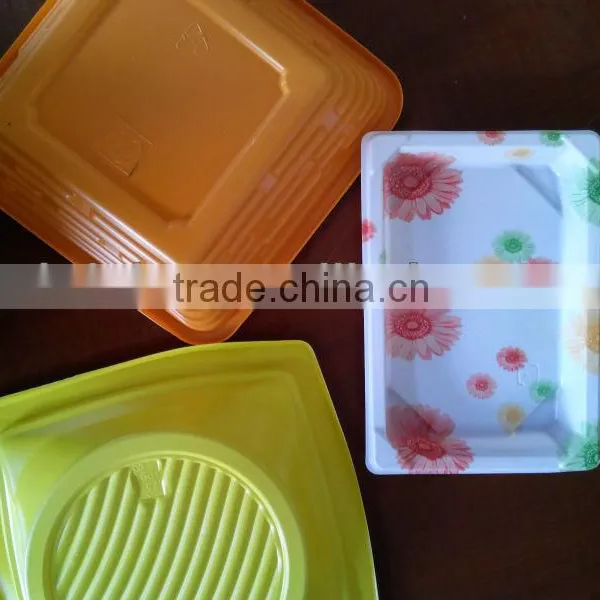

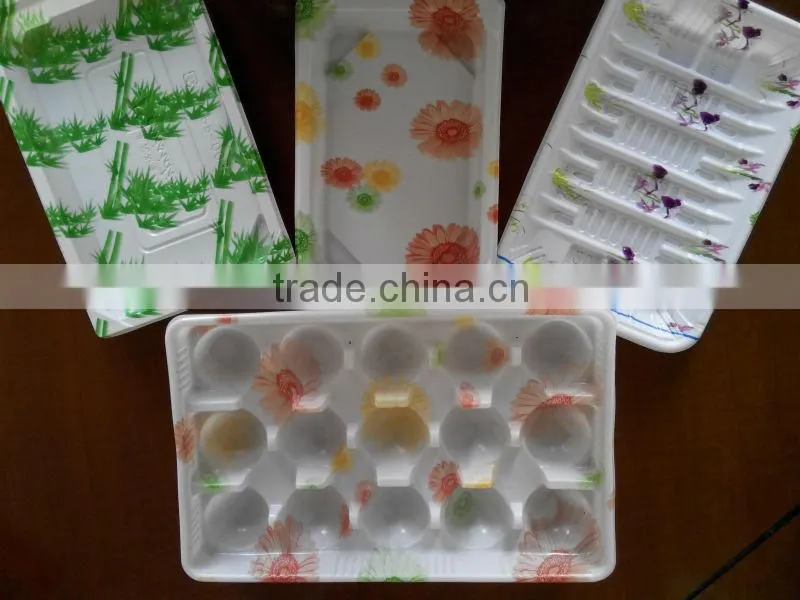

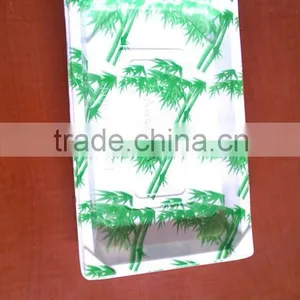

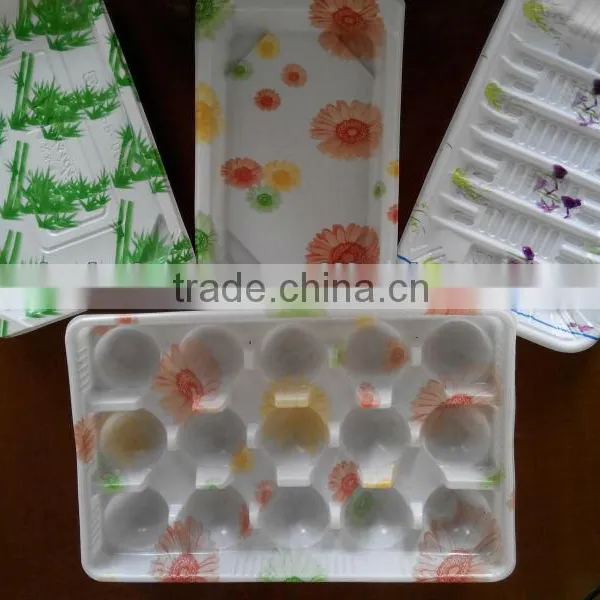

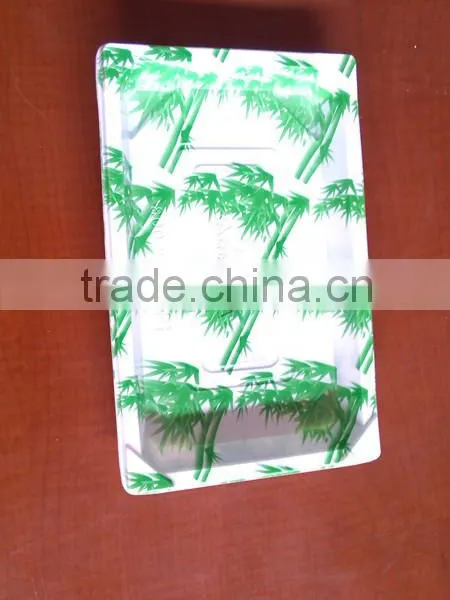

Plastic Thermoforming Machine is a kind of efficient automatic plastic thermoforming machine. It can finish producing at one time through feeding,heating ,streching,forming and side-cutting,etc.It can produce such as PP,PE ,PS,and ABS,etc. This machine has been widely used ,This machine is mainly used for producing disposable plastic vessels, such as teacup,milkcup,instant noodles bowl and other plastic products,etc..

Main technical parameters of equipment

Model	DT66A
Sheet width	300-600mm
Sheet thickness	0.3-1.5mm
Max diameter of sheet rolll	700mm
Max forming area	620*220mm
Max forming depth	120mm
Revolution	20-35mould/min
Powrr	83KW
Voltage	Three phase 380V/50Hz
Air consumption	0.7Mpa*1.6m3/min
Dimension	9.5m1.5m2.7m
Weight	5T
