The Bent Offset printer of Thermoforming Machine
Company profile:
Shanghai DAKE Machinery co., ltd was founded in1999 ,and our main product are The Bent Offset Printer, The Coiling machine, The Thermoforming Machine, Extrusion Line and Mould. We integrate developing, producing ,selling and service as a whole. We preserve in the prosecution tenet of “survival on quality, development on innovation and winning credit on consummate service”, and we pay much attention to clients’feedback.Our company has strong technical strength, advanced equipment , excellent staff, and consummate after-sale service system and import &export rights. Our products sold all over the world.
1,Use&Feature
Plastic Thermoforming Machine is a kind of efficient automatic plastic thermoforming technical process. It can finish producing at one time through feeding, heating , stretching, forming and side-cutting, etc. It can produce such as PP,PE ,PS, and ABS, etc. This machine has wide used ,This machine is mainly used for producing disposable plastic vessels, such as teacup, milk cup, instant noodles bowl and other plastic products, etc..

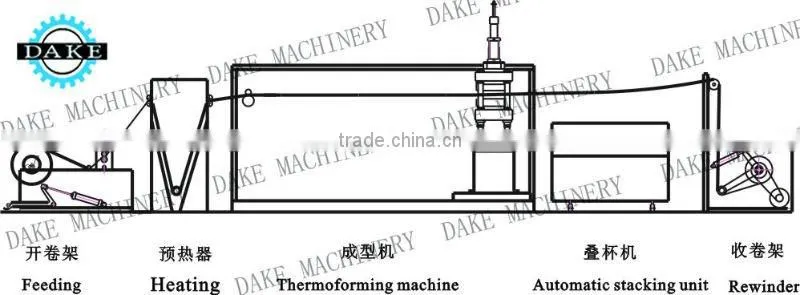

2, Main parts of the equipment
3,Main Technical parameters
Mould |
DT66A/B |
DT71B |
Sheet width |
300-600mm |
450-700mm |
Sheet thickness |
0.3-1.5mm |
0.3-2.2mm |
Max dia of the sheet roll |
700mm |
1000mm |
Max forming area |
620*220mm |
660*330mm |
Max forming depth |
120mm |
160mm |
Speed |
20-35Mould/min |
20-35Mould/min |
Total power |
83KW |
93KW |
Air consumption |
0.7MP*1.6m³/min |
0.7MP*2.2m³/min |
Machinery size |
9.5m*1.5m*2.7m |
10.5m*1.5m*2.7m |
Weight |
5T |
7T |
5,Others
Place of origin |
Shanghai, China (Mainland) |
Shipment |
FOB to SHANGHAI PORT |
Payment |
By T/T or Cash |
Delivery Date |
30 Days |
After-sales Service Provided |
Engineers available to service machinery overseas |

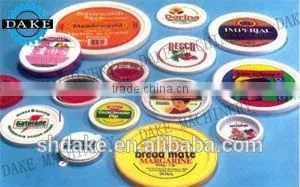

Pictures of machine and samples
Shanghai DAKE Machinery co., ltd
ADD:No.4685Fujin Road, Baoshan District, Shanghai .China
Fax:0086-21-36133258
Tel:0086-21-56680978
