New Automatic Plastic Thermoforming Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Product Type | Plastic Cup | |
| Place of Origin | Shanghai, China | Brand Name | DAKE | |
| Model Number | Dake-DT66A | Voltage | Three phase 380V/50Hz, Three phase 380V/50Hz | |
| Power(W) | 83KW | Dimension(L*W*H) | 9.5m*1.5m*2.7m | |
| Weight | 5T | Certification | Other, ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
New automatic plastic thermoforming machine1.effient automtic
2.easy to use
3.adopt advanced technology
4.iso9001
New automatic plastic thermoforming machine
Brief introduction:
1. With more than 10 years' experience, we have achieved good reputation and reliability both at home and abroad.
2. Our main products:
a. plastic cup coiling machine
b. The bent offset printer
c. Thermoforming machine
d. Thermoforming mold
e. Extrusion line
What we sell is not the best, but the most fitting.
Quick Details
Place of Origin: Shanghai, China (Mainland) | Condition: New | Automatic Grade: Automatic |
Max diameter of sheet rolll: 700mm | Brand Name: DAKE | Model Number: DAKE-DT66A |
Revolution: 20-35mould/min | Max forming area: 620*220mm | Sheet thickness: 0.3-1.5mm |
Air consumption: 0.7Mpa*1.6m3/min | Powrr: 83KW | Max forming depth: 120mm |
Sheet width: 300-600mm | Dimension: 9.5m*1.5m*2.7m | Voltage: Three phase 380V/50Hz |
Packaging & Delivery
| Packaging Details: | Acording to the situal situation. |
|---|---|
| Delivery Detail: | 30Days |
Specifications
1.adopt the most advanced plastic theroforming technology
nvenient
3.high efficiency
4.stable running
5.ISO9001
New automatic plastic thermoforming machine

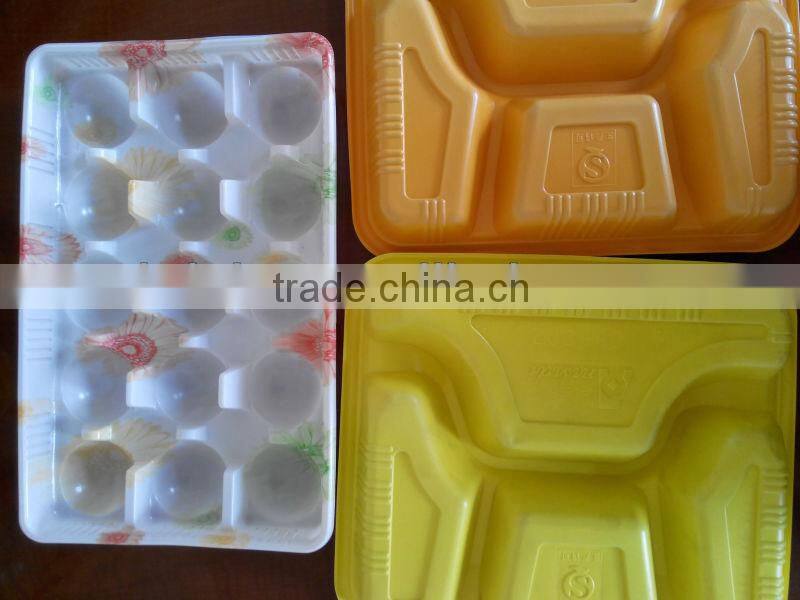

Plastic Thermoforming Machine is a kind of efficient automatic plastic thermoforming machine. It can finish producing at one time through feeding,heating ,streching,forming and side-cutting,etc. It can produce such as PP,PE ,PS,and ABS,etc. This machine has been wide used ,This machine is mainly used for producing disposable plastic vessels, such as teacup,milkcup,instant noodles bowl and other plastic products,etc..
Main technical parameters of equipment
Model | DT66A |
Sheet width | 300-600mm |
Sheet thickness | 0.3-1.5mm |
Max diameter of sheet rolll | 700mm |
Max forming area | 620*220mm |
Max forming depth | 120mm |
Revolution | 20-35mould/min |
Powrr | 83KW |
Voltage | Three phase 380V/50Hz |
Air consumption | 0.7Mpa*1.6m3/min |
Dimension | 9.5m*1.5m*2.7m |
Weight | 5T |
