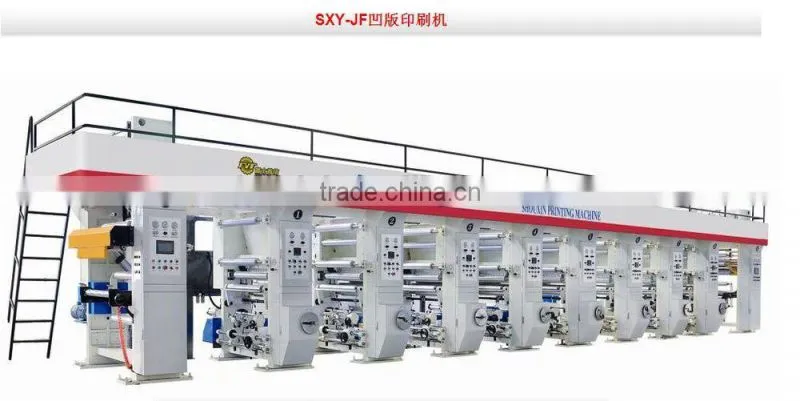

High-speed Aluminum Foil Rotogravure Printing Machine Supplier's Choice

High-speed Aluminum Foil Rotogravure Printing Machine Supplier's Choice photo-1

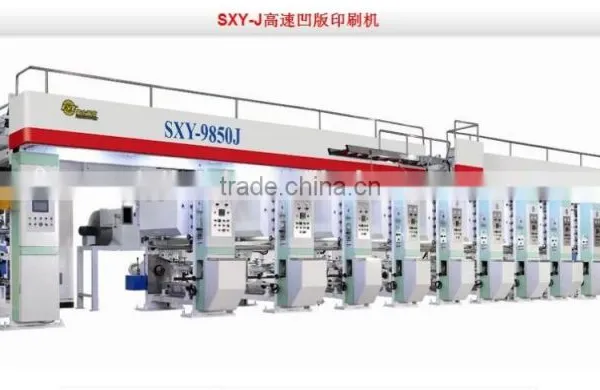

High-speed Aluminum Foil Rotogravure Printing Machine Supplier's Choice photo-2

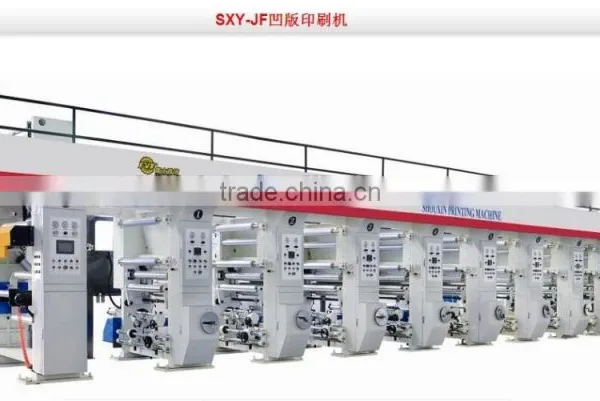

High-speed Aluminum Foil Rotogravure Printing Machine Supplier's Choice photo-3

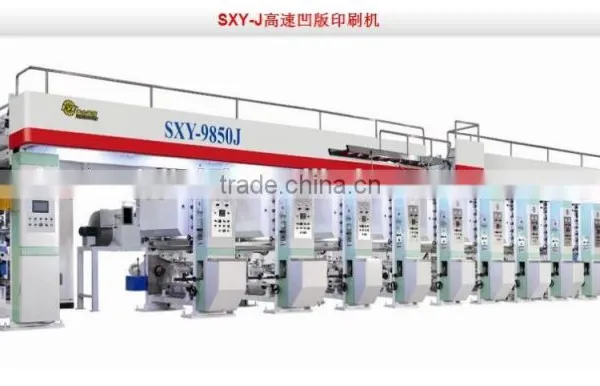

High-speed Aluminum Foil Rotogravure Printing Machine Supplier's Choice photo-4

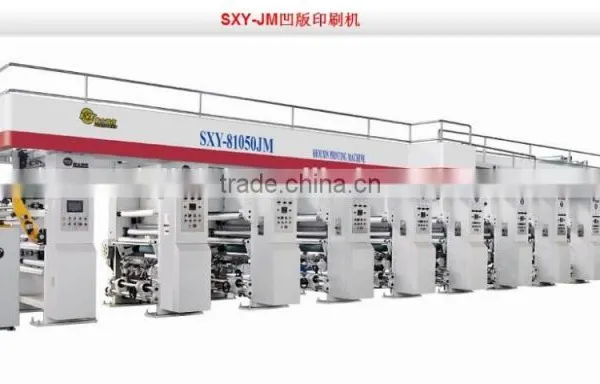

High-speed Aluminum Foil Rotogravure Printing Machine Supplier's Choice photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Jinlai Packaging
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name Jinlai Packaging
Model Number SXY-JM( Rotogravure Printing Machine)
Usage Other
Automatic Grade Automatic
Voltage 380v/60Hz
Gross Power 126Kw
Dimensions(L*W*H) 18600mm,5740mm,3210mm
Weight 13..5
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Features

  • Automatic cutting unit
  • Swing tension testing mechanism
  • Each color unit individual dry system design
  • Independent traction frame consists of cast iron wallboard and cross rail
  • It fits all kinds of film.



Purpose

 This machine is used for print Aluminum foil, BOPP, PET,PE,NY material. Independent double location rewinding and unwinding flip frame institution. Automatic change roll pre-driving and cutting. Servo motor control tension system, Plate roller drive and synchronous registering high speed print combine rotogravure printing machine.



Compose

This machine takes operation side as benchmark. Arrange from left to right, unwind unit, unwind feeding unit, first printing color group to seventh printing color group, rewind feeding unit, rewind unit. And composed by electrical system, plate roller drive synchronous registering unit.



The Features of the transmission part



  •  No gear back lash, plate roller has high synchronous precision, adopt high precision reducer.
  • No mechanical drive power loss, save transmission energy 10%-15%.
  • The length of go through material reduce, reduce material go through time, convenient for accurate overprinting.

  • Three direction adjust scraper, build best scraper position (new type, integral type structure).
  • Two side big size display figure, benefit for long distance observation.





Technical Data

  Print material   Aluminum foil,BOPP,PET,PVC,PE,NY,Paper
  Print Width 850mm,1050mm,1250mm
  Mechanical Speed   180m/min
  Printing cylinder   Φ600mm
  Unwind/Rewind web dia   Φ800mm
  Color register accuracy   ≤±0.15mm
Dry Method Electricity,steam,thermal oil or gas

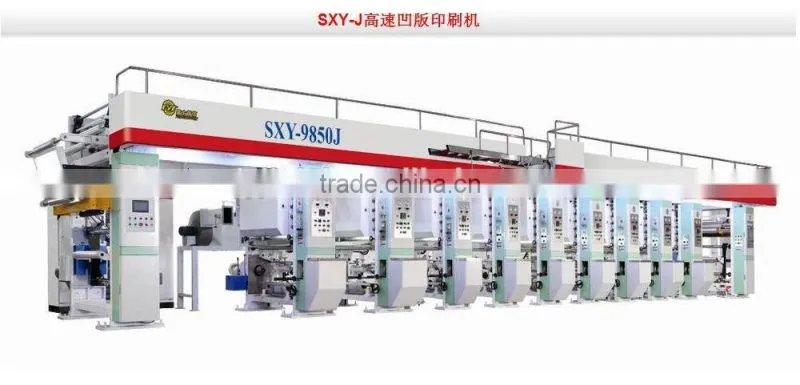

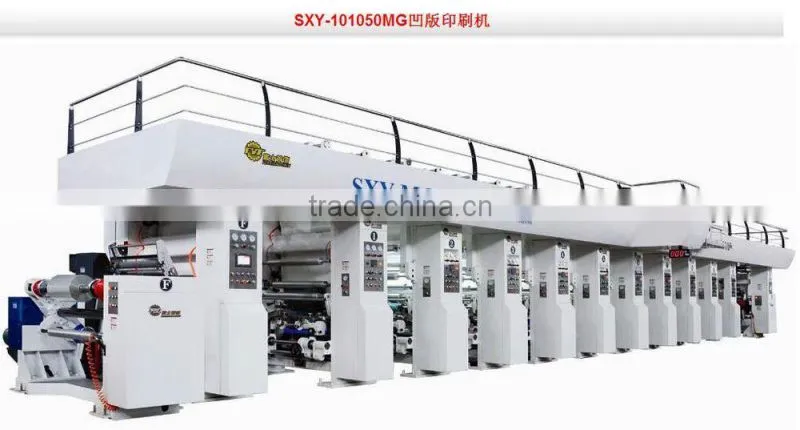

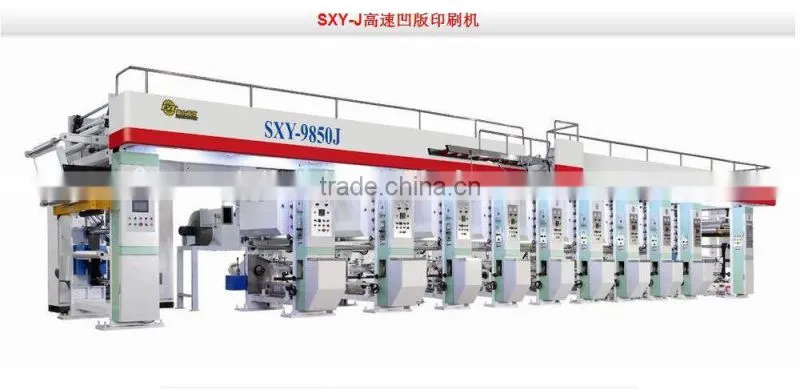

 High-speed aluminum foil rotogravure printing machineHigh-speed aluminum foil rotogravure printing machineHigh-speed aluminum foil rotogravure printing machineHigh-speed aluminum foil rotogravure printing machine
