Specifications
1.aluminum foil slitting machine2Materials:BOPP,CPP,PET and aluminized film and other materials.
3.Adopt timing belt transm

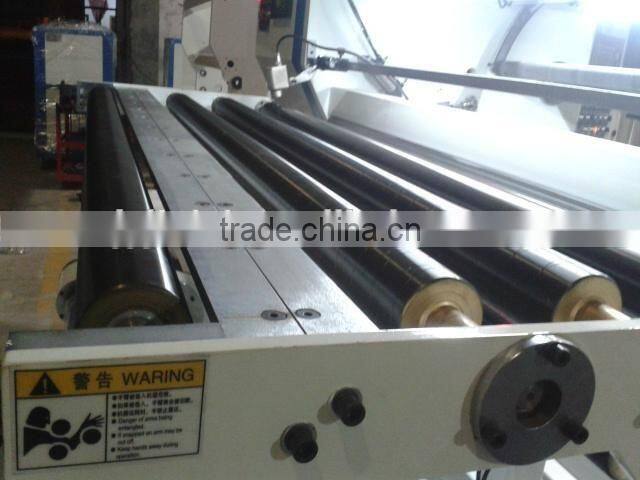

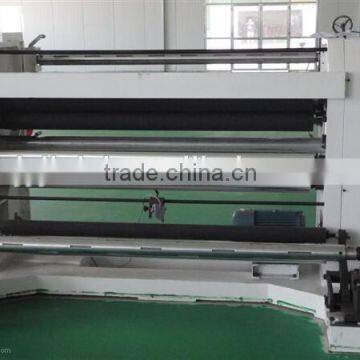

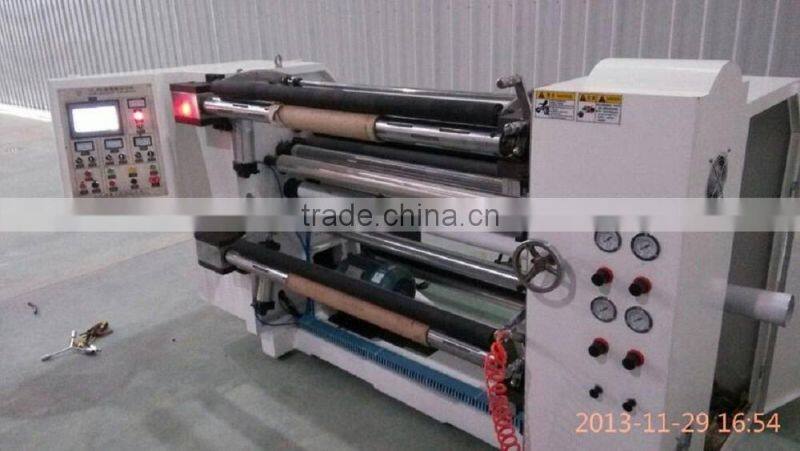

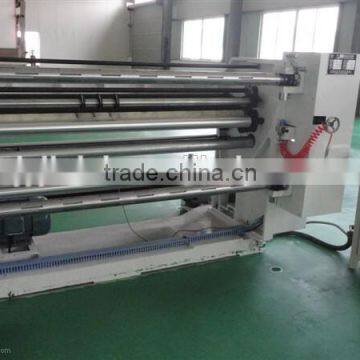

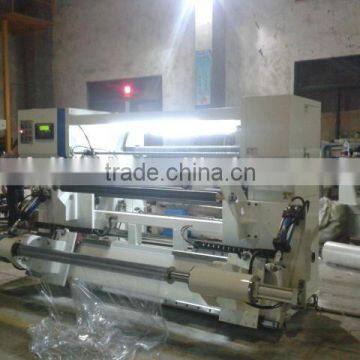

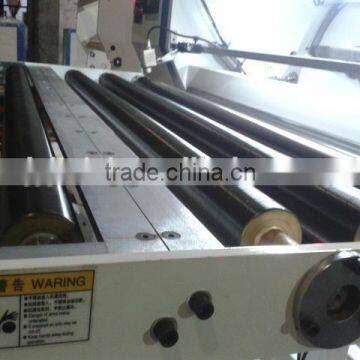

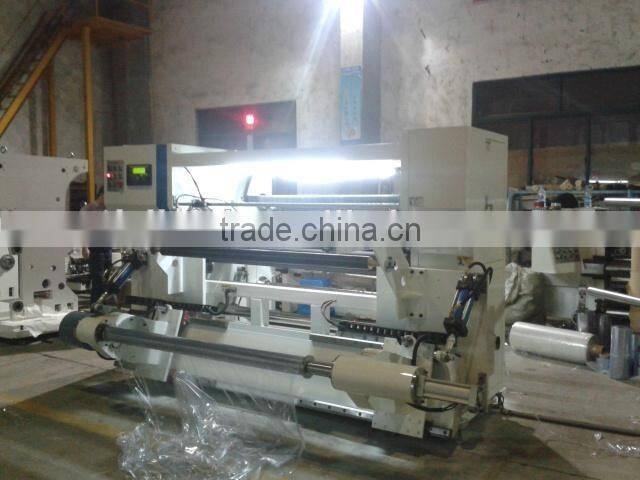

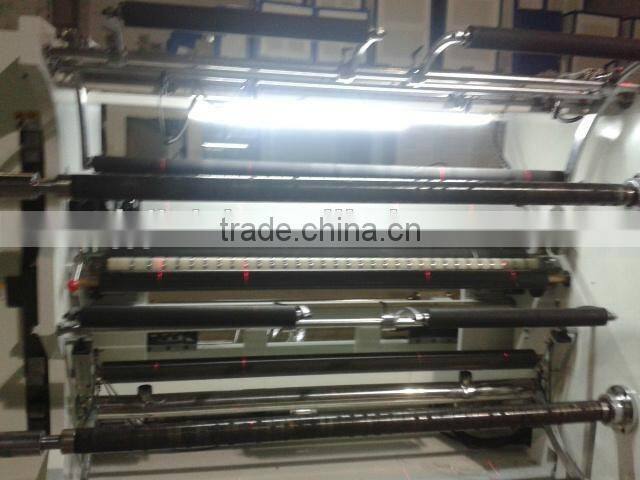

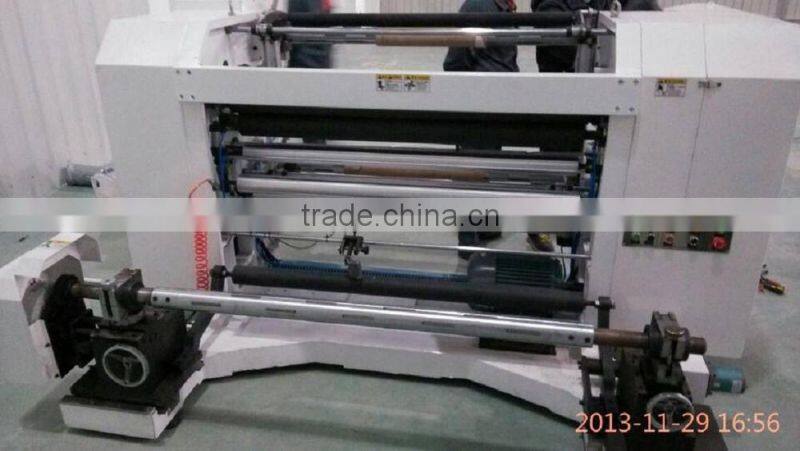

light control aluminum foil slitting machine
Dear Sir or Madam,
Technical parameters,main configuration and quotations of slitting machines your company need are as follows:
Article 1, Main technical data
1. Maximum unwinding diameter:600mm
2. Maximum rewinding diameter: 400mm
3. Maximum width: 80—1300mm
4.Mechanical speed:200m/min(different material different speed)
5. Rectify precision;≤ ±0.5mm
6. Total power:≈5kw
7. Paper core inner diameter:76mm
8. Supply voltage: AC 380V (three-phase and five lines)
Article 2, Machine sketch map(attached)
The device type of light-activated slitting machine is KLF-PA. The machine is vertical fluctuation of rewinding type. This graph is preliminary design of lateral view. In the actual design manufacturing process, on the premise of ensuring technical parameters, local structure may be changed.
Article 3, Main configuration
1. Unwinding adopts loading with axis,match with three inches convex key type flatulence shaft.
2.Unwinding adopt 5kg magnetic powder brake(LANMECA/Haian), manual tension control
3. Trolley type switching value web guide device
4. AC 4kw special motor as traction motor with variable frequency controller (ENC)
5. Active traction roller and pneumatic traction press roller.
6. Razor cutter slitting, five sets of blade cutter.
7. Blow edge device
8. Up and down rewinding shafts execute tension with 5kg magnetic powder clutch(LANMECA/Haian), manual control rewinding tension.
9. Rewinding press roller device for up and down rewinding with550mm ferric press roller-2 pieces, 800mm ferric press roller-1piece
10.Three inches(76mm)rewinding shaft,convex key type air shaft.
11. Guide rollers adopt aluminum alloy guide roll and rubber roller combined, all guide rollers are by dynamic balance processing.
12. Pneumatic components (SHSNS)
13. Adopt timing belt transmit
14. All bearings adopt Harbin bearings
