Specifications

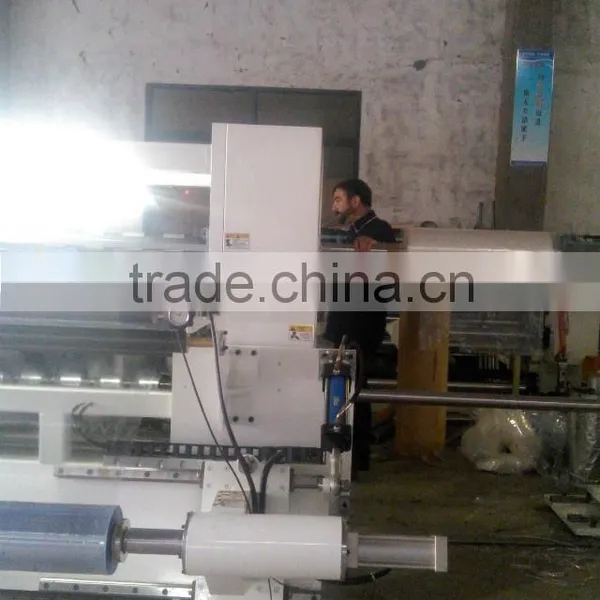

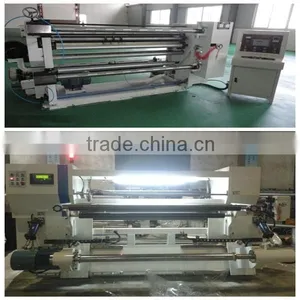

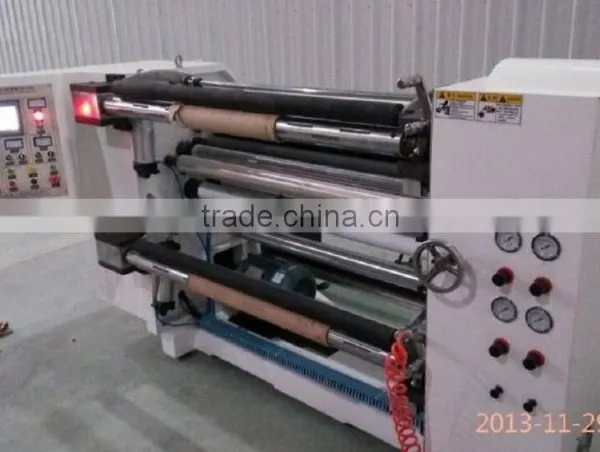

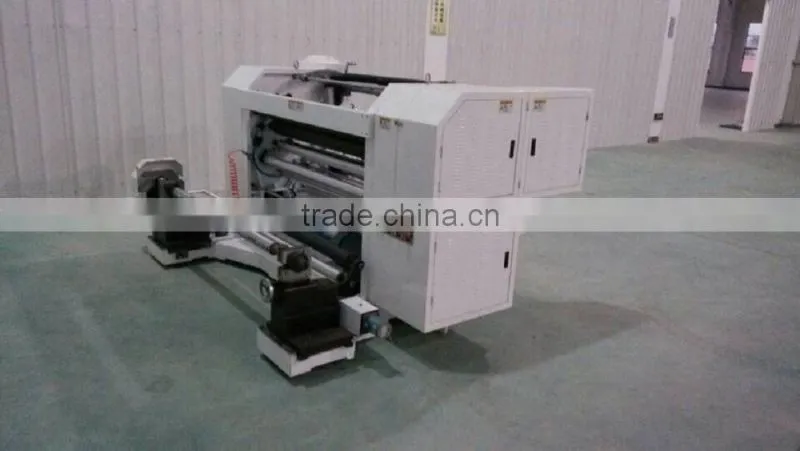

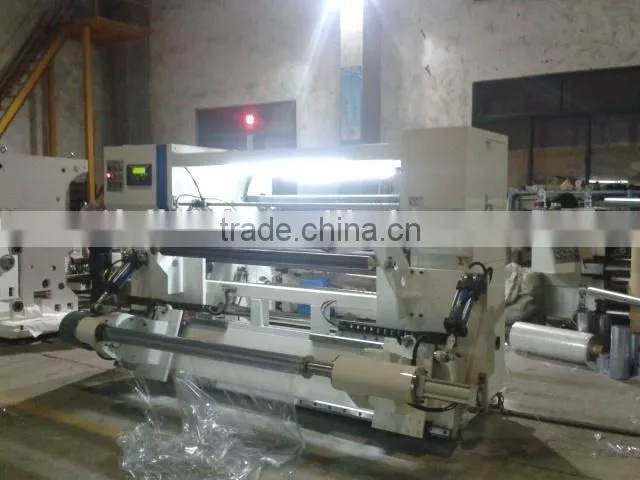

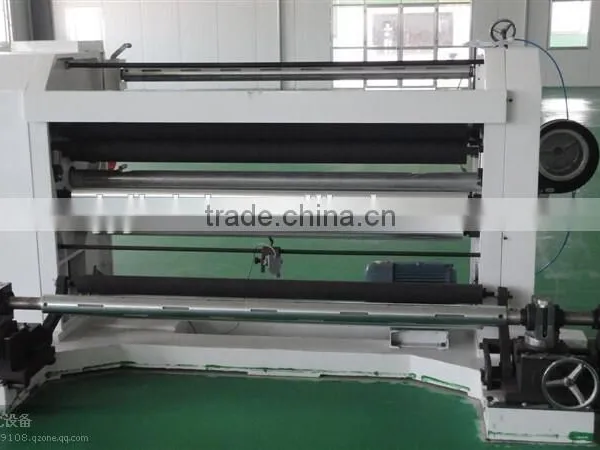

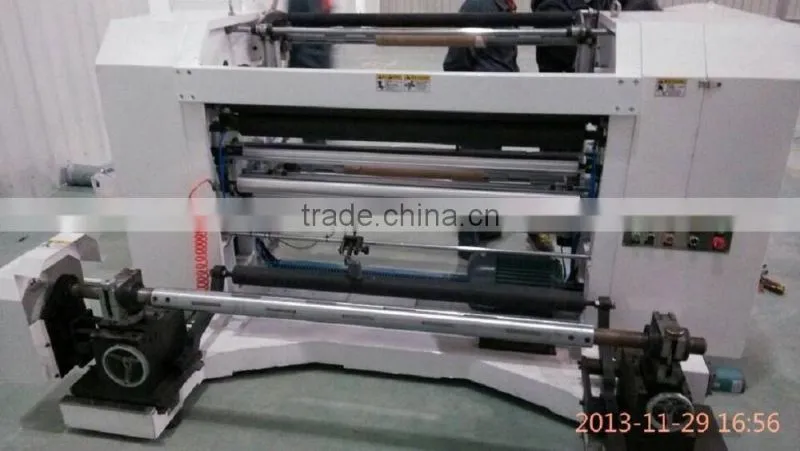

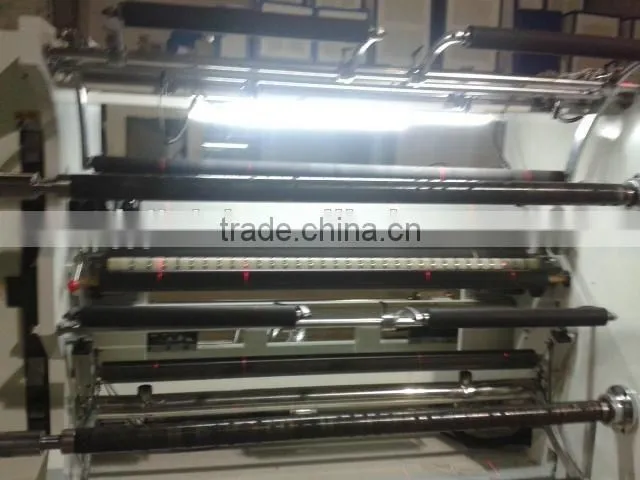

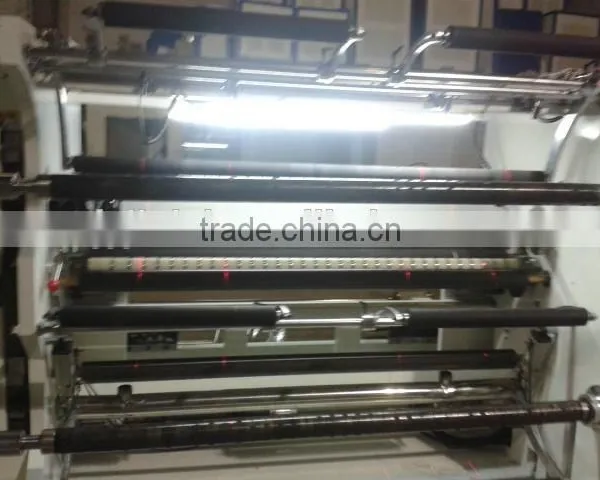

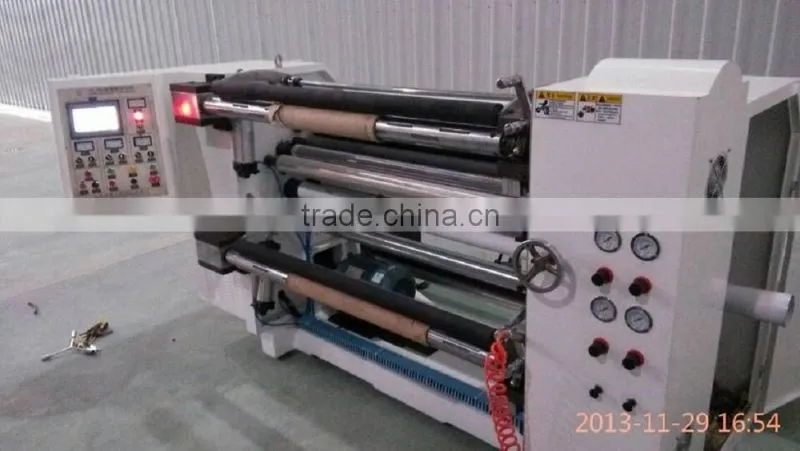

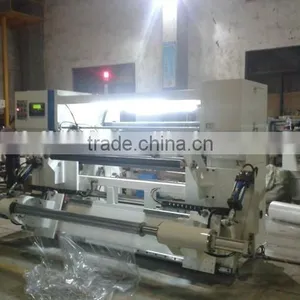

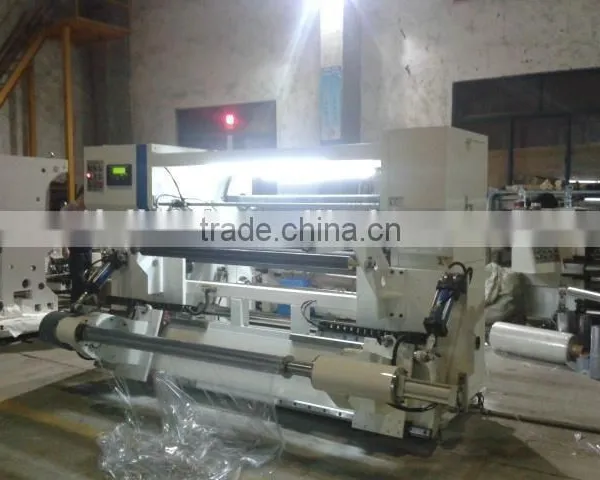

light control aluminum foil slitting machine1.Human-computer interface
2.CE, ISO, SGS standard
3.PLC Control
Features:
1.Motor control system of the machine by the Japanese Panasonic centralized control of PLC, according to the cutting process requirement, set by the touch screen and m-
onitor the working state parameters, control system with constant speed elevator, parking lock, meter length, parameter storage and other functions, the operation is very simple.
2. ewinding tension control by the Japanese Panasonic PLC control system, the encoder detects, unreeling constant tension control.
3. he simulation of rectifying deviation system, automatic "with the side" or "with the line", ensure the correct position of the running material.
4. he raw material loading and unloading trolley type shaft clamping, inflatable shaft supporting roll material.
5. he main traction driven by ABB frequency conversion motor, driven by Japan Yaskawa inverter. Up and down the winding power independently driven by magnetic particle clutch, according to rolling diameter changes from PLC to realize automatic calculation of tension, winding tension taper control.
6. he reel is a convex key air shaft, to adapt to different material winding.
7.Rewinding roller use pneumatic roller form.
8.This machine adopts flat knife cutting mode, can be suitable for different film slitter.
9.The main electrical and pneumatic components adopt imported famous brand products, stable and reliable performance.
Technical Data:
Application Materials |
BOPP,CPP ,PET,PE Composite membrane, aluminum plating film and other coiling shape material |
Material Thickness |
0.012~0.15mm |
Material Speed |
300m/min (Cutting speed depending on different materials) |
Slitting Width |
50~1300mm |
Unwinding Diameter |
800mm |
Rewinding Diameter |
500mm |
Machine Power |
7KW |
Power Voltage |
AC 380V |
Machine Weight |
2000KG |
Machine Dimension |
L2700*W2000*H1400mm |
(According to the actual needs of customers to provide customized design)
Skype:w404398276
TM:cn1511301465
Tel:+86-510-86316851
Mobile Phone:+86-15852594903
Add:NO.50, Huagyuan Road, Changjing Town, Jiangyin City,Jiangsu Province, China light control aluminum foil slitting machine light control aluminum foil slitting machine light control aluminum foil slitting machine light control aluminum foil slitting machine light control aluminum foil slitting machine
